Unit · AXIAL-PISTON MOTOR
A6VE55HZ3/63W-VXL52700B-SR902040120
Axial piston motor Bosch Rexroth series A6VM, type code A6VE55HZ3/63W-VXL52700B-S, material number R902040120. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902040120
- Type code
- A6VE55HZ3/63W-VXL52700B-S
- Group
- A6VE 55
- Edition
- 06/2020

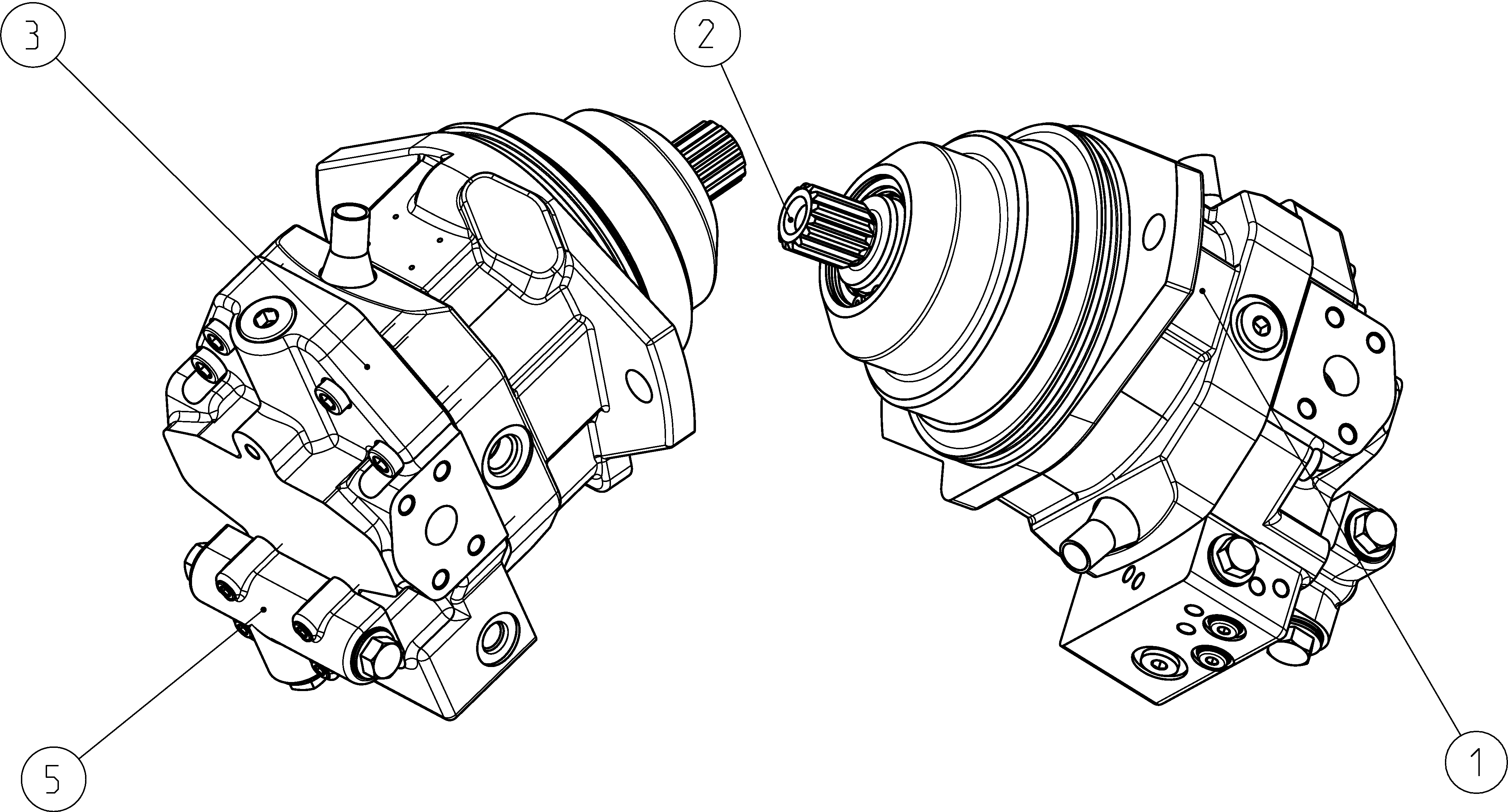

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902251361 | HOUSING Assembly parts list →L | 1 | ||
| R909605726 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902238467 | COVER PLATE Assembly parts list →L | 1 | ||
| R902216061 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 55 | 55 |
| Control device | Two-point control, hydraulic | HZ |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
