Unit · ORIFICE SCREW
BLENDENSCHRAUBE,KOMPL.R-RING53120.R902041072
Hydraulic unit Bosch Rexroth, type code BLENDENSCHRAUBE,KOMPL.R-RING53120., material number R902041072.
- Number
- R902041072
- Type code
- BLENDENSCHRAUBE,KOMPL.R-RING53120.
- Group
- ORIFICE SCREW
- Edition
- 07/2019

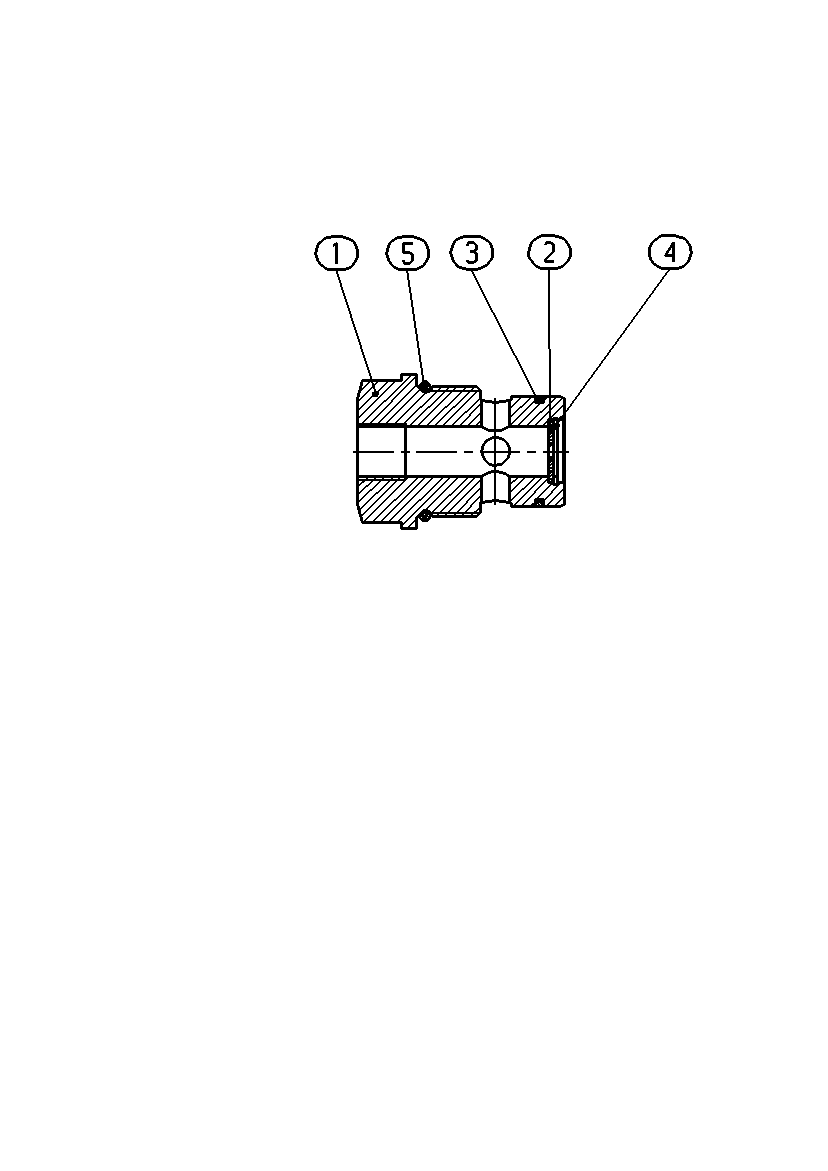

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | — | ORIFICE SCREW | 1 | |
| 2 | R909446273 | ORIFICE Assembly parts list →L | 1 | |
| R902041245 | RECTANGULAR RING | 1 | ||
| R909156498 | RETAINING RING | 1 | ||
| 5 | R909086731 | O-RINGD | 1 |
