Unit · AXIAL-PISTON PUMP
A11VO260LRDS+A11VO260LG1DS+A4VG180HDDR902046490
Axial piston pump Bosch Rexroth series A11VO, type code A11VO260LRDS+A11VO260LG1DS+A4VG180HDD, material number R902046490. Nominal size: NG 260. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: power controller fixed setting, with pressure cut-off, with load-sensing (LRDS).
- Number
- R902046490
- Type code
- A11VO260LRDS+A11VO260LG1DS+A4VG180HDD
- Group
- A11VO 260
- Edition
- 06/2020

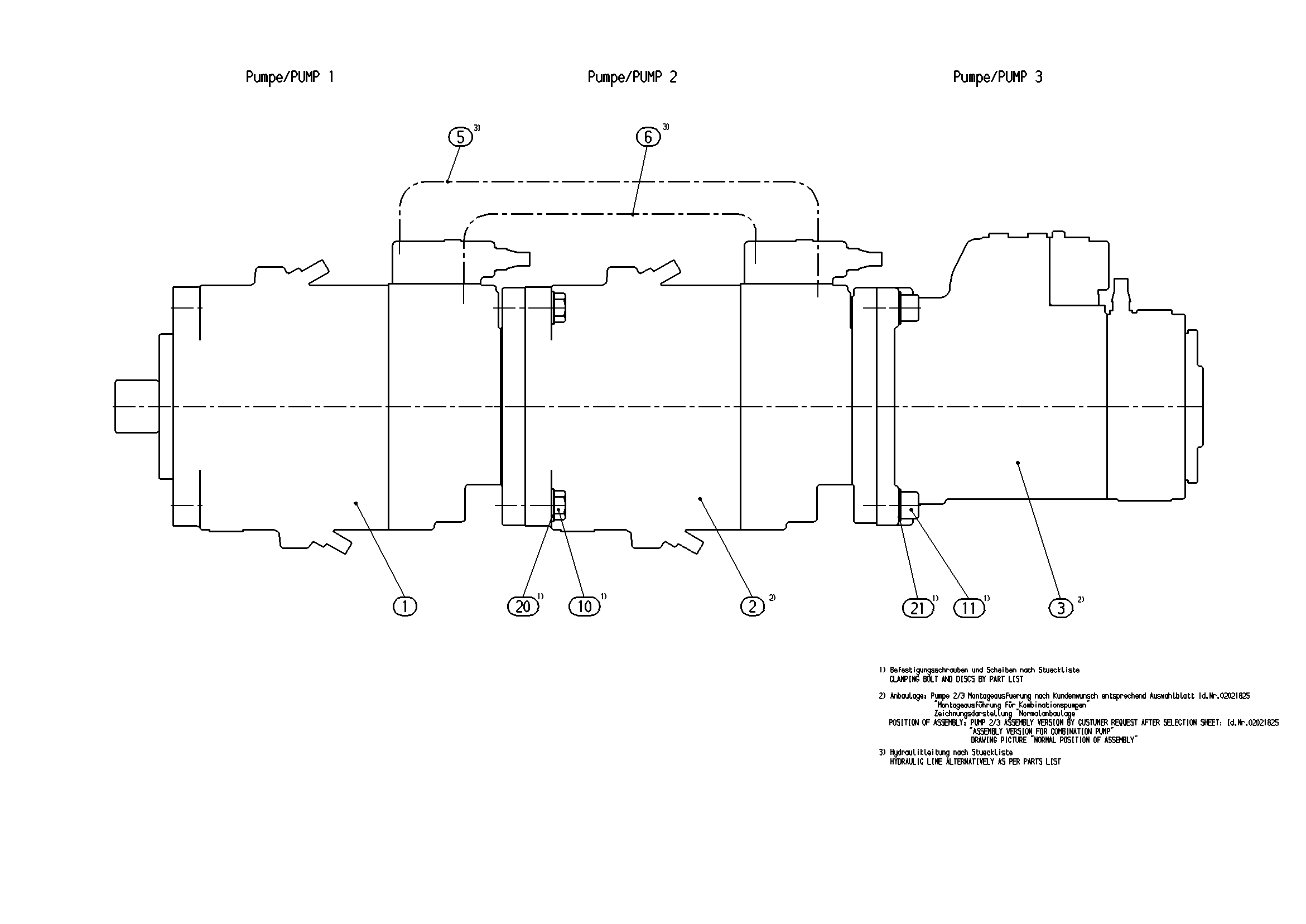

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902046488 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902046489 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902044938 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083156 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083155 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 260 | 260 |
| Control device | Power controller fixed setting, with pressure cut-off, with load-sensing | LRDS |
