Unit · AXIAL-PISTON PUMP
AA10VG45DGMT1/10R-NTCXXK043E-SR902049669
Axial piston pump Bosch Rexroth series A10VG, type code AA10VG45DGMT1/10R-NTCXXK043E-S, material number R902049669. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 300 bar, maximum pressure 350 bar (A10V). Operating mode: pump, closed circuit (G). Control device: hydraulic control direct operated (DG). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). Stroking chamber pressure port: stroking chamber pressure port X X (T). DA control valve for NG28... 63: without DA control valve (1). Direction of rotation: viewed on drive shaft (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for combination pump (T). Mounting flange: SAE J744 2-hole (C). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 hub for splined shaft, 101-2 (B) 1 in 15T 16/32DP (04). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, 250 … 320 bar without bypass fixed setting (3). Filtration boost circuit/external boost pressure supply: external boost pressure supply (on version without integrated boost pump N and K) (E).
- Number
- R902049669
- Type code
- AA10VG45DGMT1/10R-NTCXXK043E-S
- Group
- A10VG 45
- Edition
- 06/2020

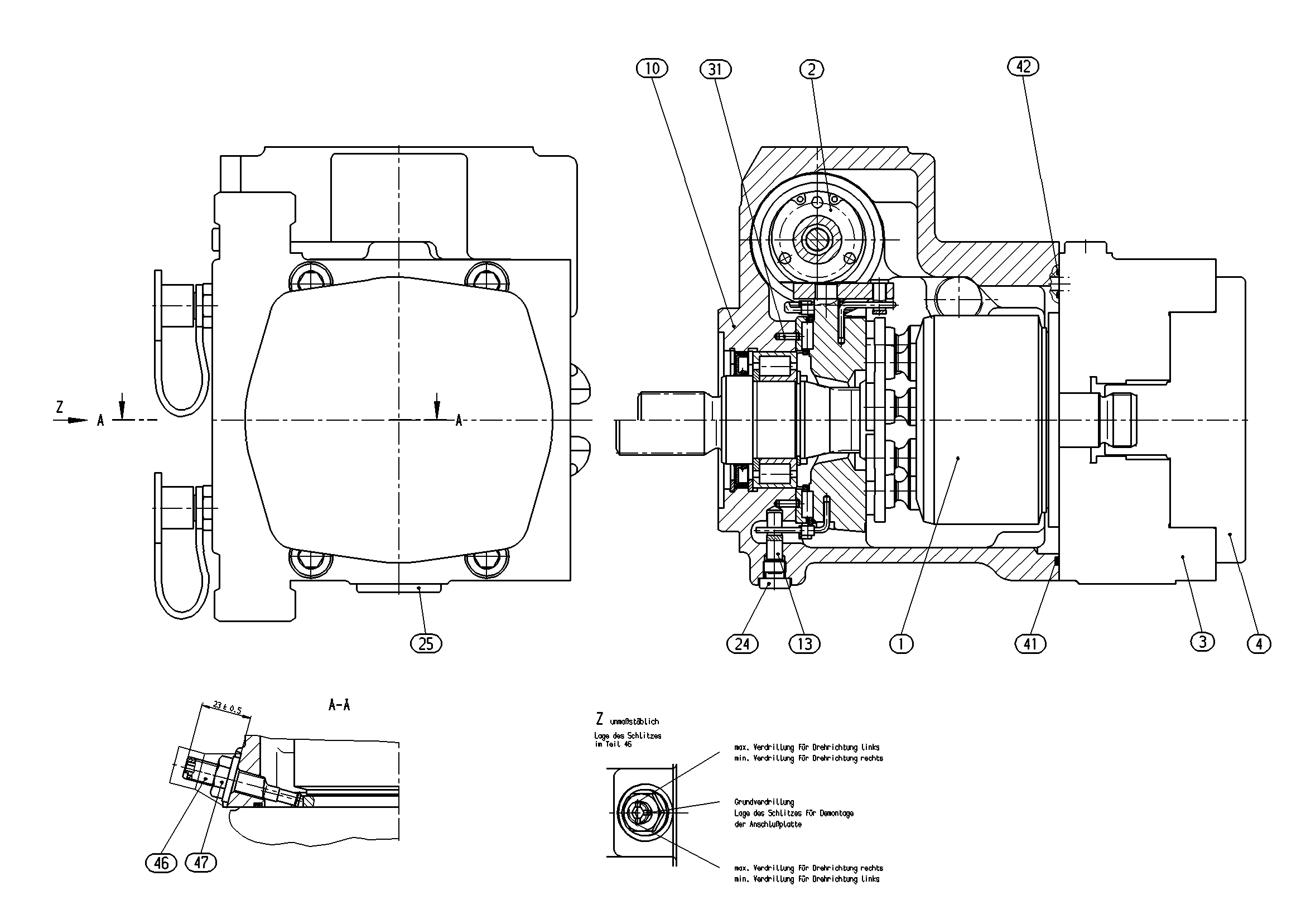

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902100539 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902039721 | CONTROL Assembly parts list →L | 1 | ||
| R902049663 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902049662 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902049660 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| 22 | R909154478 | SCREW PLUG | 2 | |
| R909153364 | SCREW PLUGD | 1 | ||
| R909153378 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909085364 | O-RINGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R902039582 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUT | 1 | ||
| 98 | R902095619 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 300 bar, maximum pressure 350 bar | A10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 45 |
| Control device | Hydraulic control direct operated | DG |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| Stroking chamber pressure port | Stroking chamber pressure port X X | T |
| DA control valve for NG28... 63 | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for combination pump | T |
| Mounting flange | SAE J744 2-hole | C |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 hub for splined shaft, 101-2 (B) 1 in 15T 16/32DP | 04 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, 250 … 320 bar without bypass fixed setting | 3 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (on version without integrated boost pump N and K) | E |
| Standard/special version | Special version | -S |
