Unit · POMPA OSIOWO-TŁOKOWA

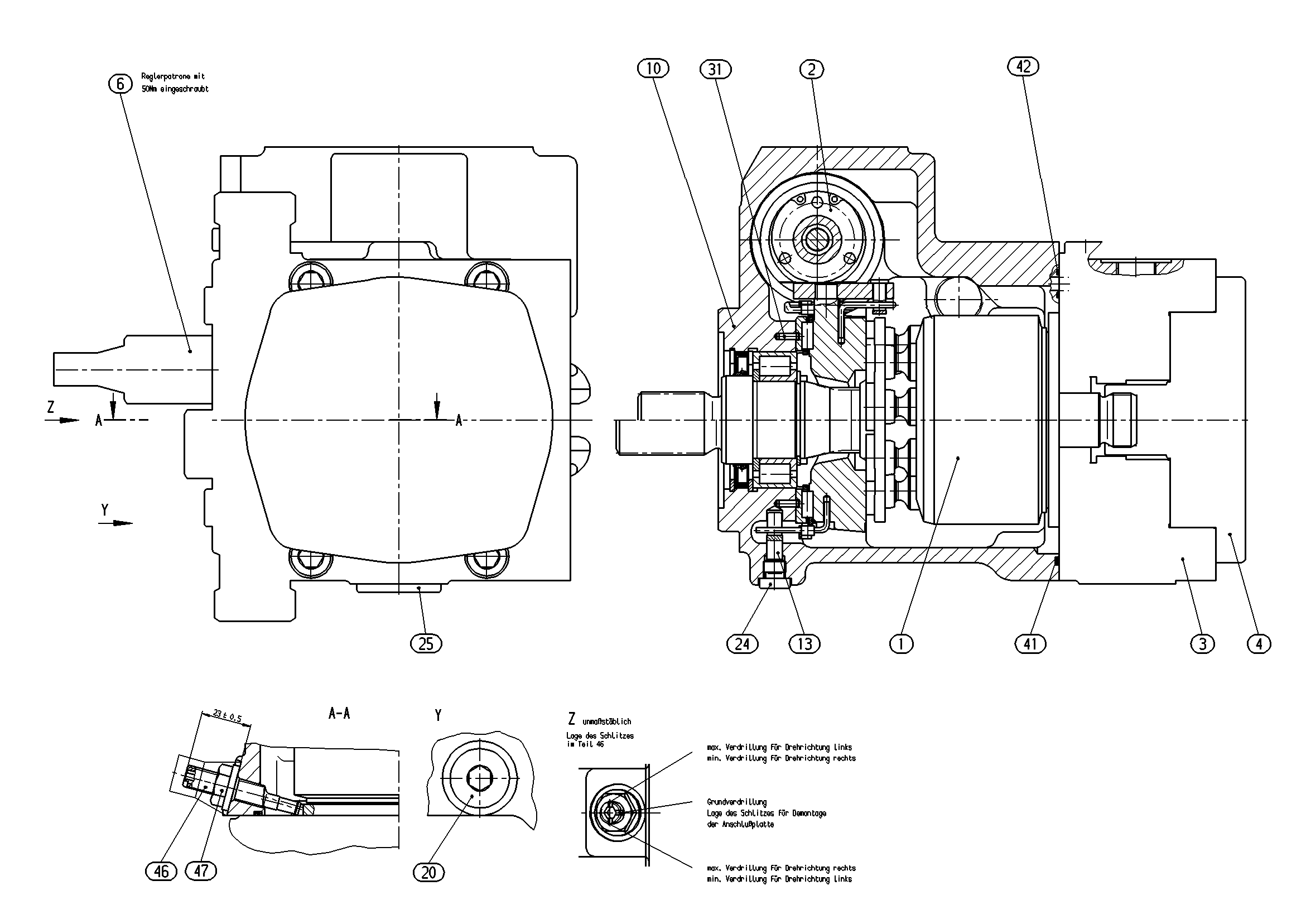

AA10VG45DGM2/10R-NSCXXK043E-SR902049684
Axial piston pump Bosch Rexroth series A10VG, type code AA10VG45DGM2/10R-NSCXXK043E-S, material number R902049684. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi (AA10V). Operating mode: pump, closed circuit (G). Control device: hydraulic control direct operated (DG). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: DA control valve, fixed setting (2). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for single pump (S). Mounting flange: SAE J744 2-hole (C). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 101-2 (B) 1 in 15T 16/32DP (04). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, 3600 … 4650 psi without bypass fixed setting (250 … 320 bar) (3). Filtration boost circuit/external boost pressure supply: external boost pressure supply (on version without integrated boost pump N and K) (E). Standard/special version: special version (-S).
- Number
- R902049684
- Type code
- AA10VG45DGM2/10R-NSCXXK043E-S
- Group
- A10VG 45
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902100544 | MECHANIZM NAPĘDOWY Assembly parts list →L | 1 | ||
| R902039721 | STEROWANIE Assembly parts list →L | 1 | ||
| R902049666 | PŁYTA POŁĄCZENIOWA Assembly parts list →L | 1 | ||
| R902049662 | WSPORNIK NOŚNY Assembly parts list →L | 1 | ||
| R902031174 | NABÓJ REGULACYJNY Assembly parts list →L | 1 | ||
| R902049660 | KORPUS | 1 | ||
| R902114380 | SWORZEŃ OBROTU | 1 | ||
| 22 | R909154478 | KOREK GWINTOWANY | 2 | |
| R909153364 | KOREK GWINTOWANYD | 1 | ||
| R909153378 | KOREK GWINTOWANYD | 1 | ||
| R913016373 | KOŁEK SPRĘŻYNUJĄCY | 2 | ||
| R909085364 | O-RINGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R902039582 | ŚRUBA MIMOŚRODOWA | 1 | ||
| R909153271 | NAKRĘTKA USZCZELNIAJĄCA | 1 | ||
| 98 | R902095619 | ZESTAW USZCZELNIEŃ | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi | AA10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 45 |
| Control device | Hydraulic control direct operated | DG |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | DA control valve, fixed setting | 2 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for single pump | S |
| Mounting flange | SAE J744 2-hole | C |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 101-2 (B) 1 in 15T 16/32DP | 04 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, 3600 … 4650 psi without bypass fixed setting (250 … 320 bar) | 3 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (on version without integrated boost pump N and K) | E |
| Standard/special version | Special version | -S |
