Unit · AXIAL-PISTON PUMP
A10VG63HWD1/10R-NTC10K015E-SR902049832
Axial piston pump Bosch Rexroth series A10VG, type code A10VG63HWD1/10R-NTC10K015E-S, material number R902049832. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 300 bar, maximum pressure 350 bar (A10V). Operating mode: pump, closed circuit (G). Control device: proportional control, hydraulic mechanical servo (HW). Pressure cut-off: pressure cut-off (D). DA control valve for NG28... 63: without DA control valve (1). Direction of rotation: viewed on drive shaft (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for combination pump (T). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, same side left suction port S bottom (10). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP (01). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, 250 … 320 bar fixed setting with bypass (5). Filtration boost circuit/external boost pressure supply: external boost pressure supply (on version without integrated boost pump N and K) (E).
- Number
- R902049832
- Type code
- A10VG63HWD1/10R-NTC10K015E-S
- Group
- A10VG 63
- Edition
- 06/2020

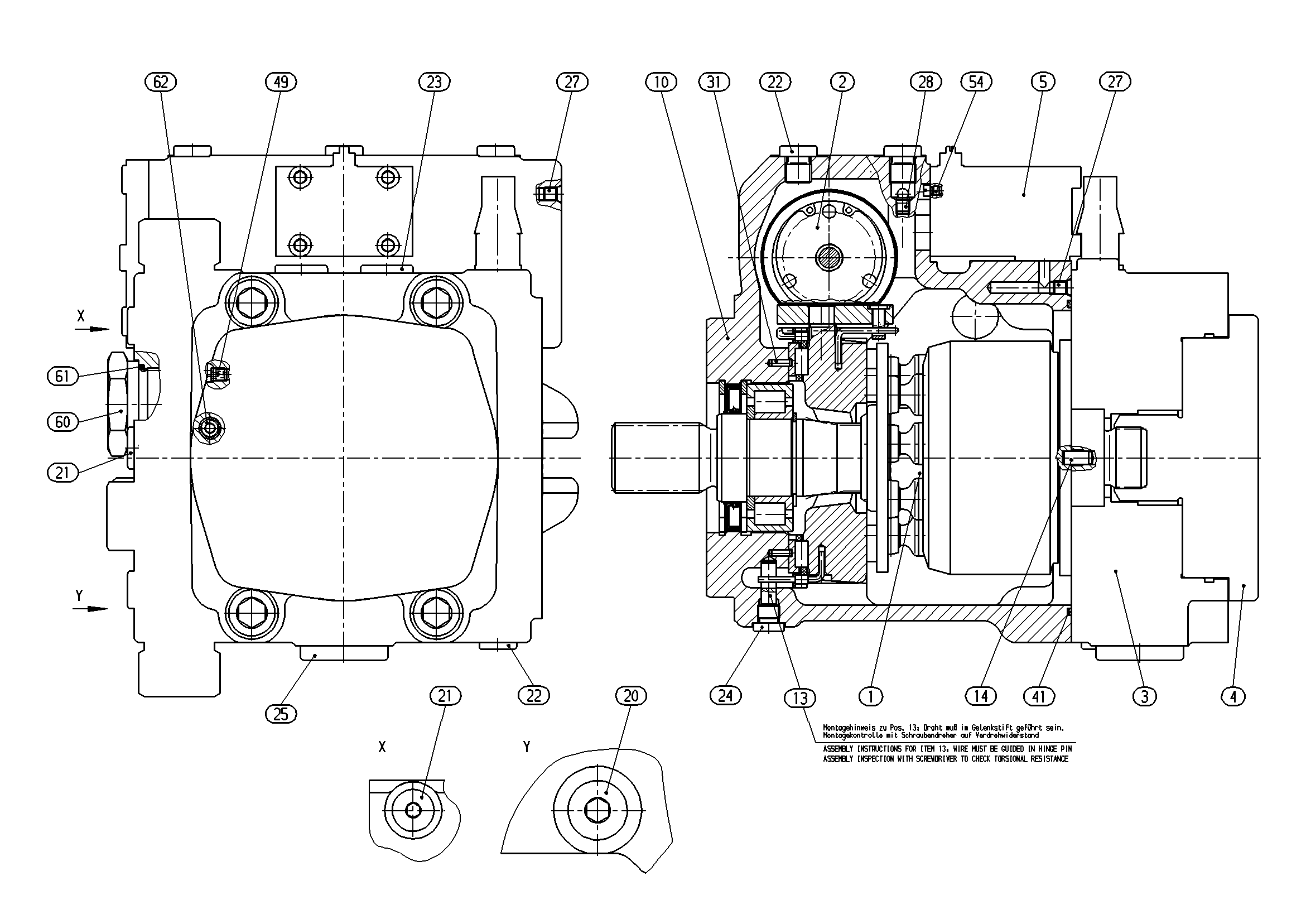

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902036399 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902020473 | CONTROL Assembly parts list →L | 1 | ||
| R902025953 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902240502 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902018850 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902015515 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUG | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156492 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R902601866 | NOZZLE | 1 | ||
| R909440121 | THREADED REDUCING STUDD | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUGD | 1 | ||
| 98 | R902095622 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 300 bar, maximum pressure 350 bar | A10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 63 | 63 |
| Control device | Proportional control, hydraulic mechanical servo | HW |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve for NG28... 63 | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for combination pump | T |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, same side left suction port S bottom | 10 |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP | 01 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, 250 … 320 bar fixed setting with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (on version without integrated boost pump N and K) | E |
| Standard/special version | Special version | -S |
