Unit · AXIAL-PISTON PUMP
A11VLO260LRDH1+A10VO28DR+A4FO16/32R902053297
Axial piston pump Bosch Rexroth series A11VO, type code A11VLO260LRDH1+A10VO28DR+A4FO16/32, material number R902053297. Nominal size: NG 260. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: power controller fixed setting, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter (LRDH1).
- Number
- R902053297
- Type code
- A11VLO260LRDH1+A10VO28DR+A4FO16/32
- Group
- A11VLO 260
- Edition
- 06/2020

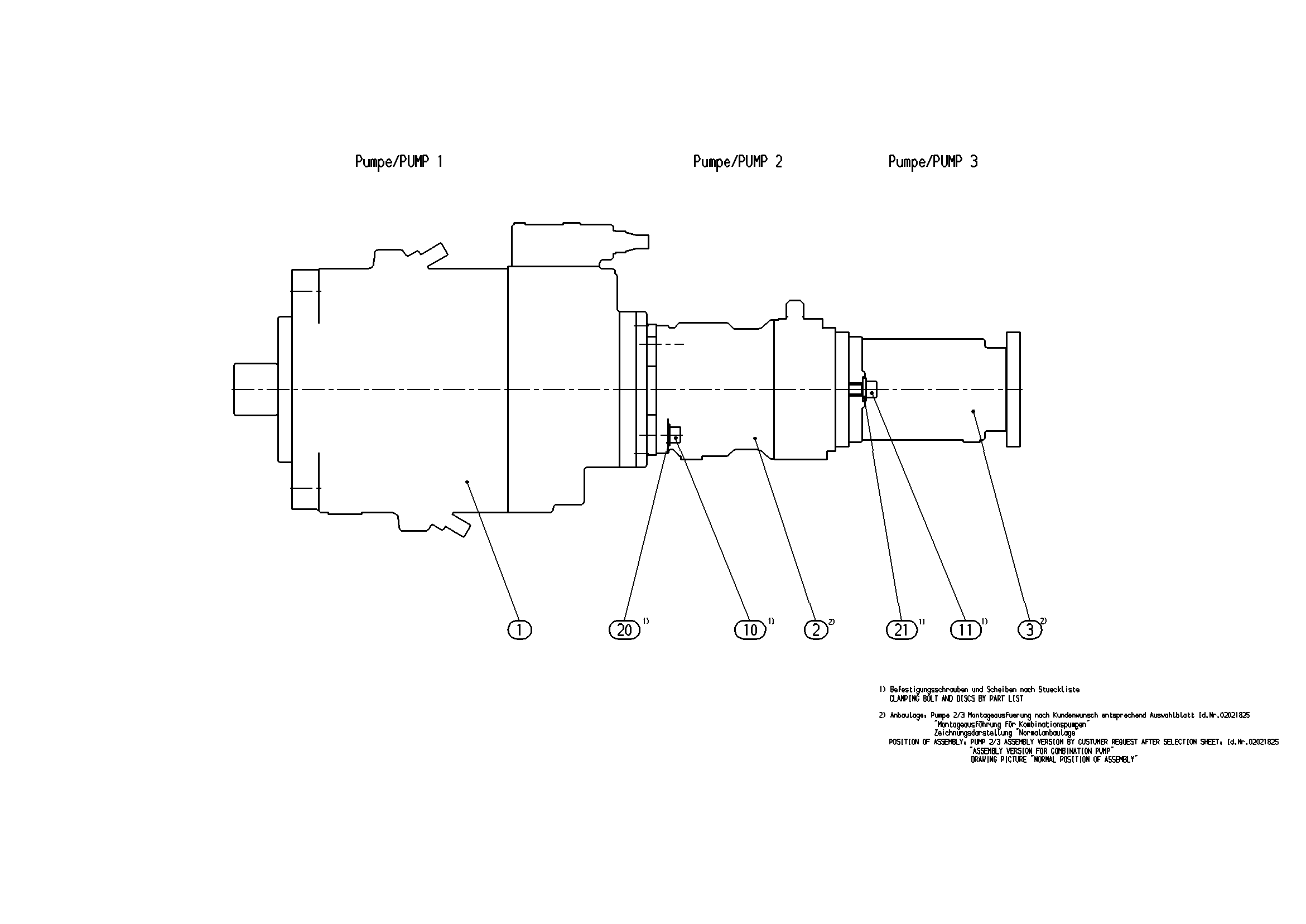

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902053298 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902601888 | AXIAL-PISTON PUMP | 1 | ||
| R902035998 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010115 | WASHER | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 260 | 260 |
| Control device | Power controller fixed setting, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter | LRDH1 |
