Unit · AXIAL-PISTON PUMP
AA10VG28EP11/10R-NSCXXK013EH-SR902055874
Axial piston pump Bosch Rexroth series A10VG, type code AA10VG28EP11/10R-NSCXXK013EH-S, material number R902055874. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi (AA10V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for single pump (S). Mounting flange: SAE J744 2-hole (C). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP (01). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, 3600 … 4650 psi without bypass fixed setting (250 … 320 bar) (3). Filtration boost circuit/external boost pressure supply: external boost pressure supply (on version without integrated boost pump N and K) (E). Standard/special version: special version (-S).
- Number
- R902055874
- Type code
- AA10VG28EP11/10R-NSCXXK013EH-S
- Group
- A10VG 28
- Edition
- 07/2020

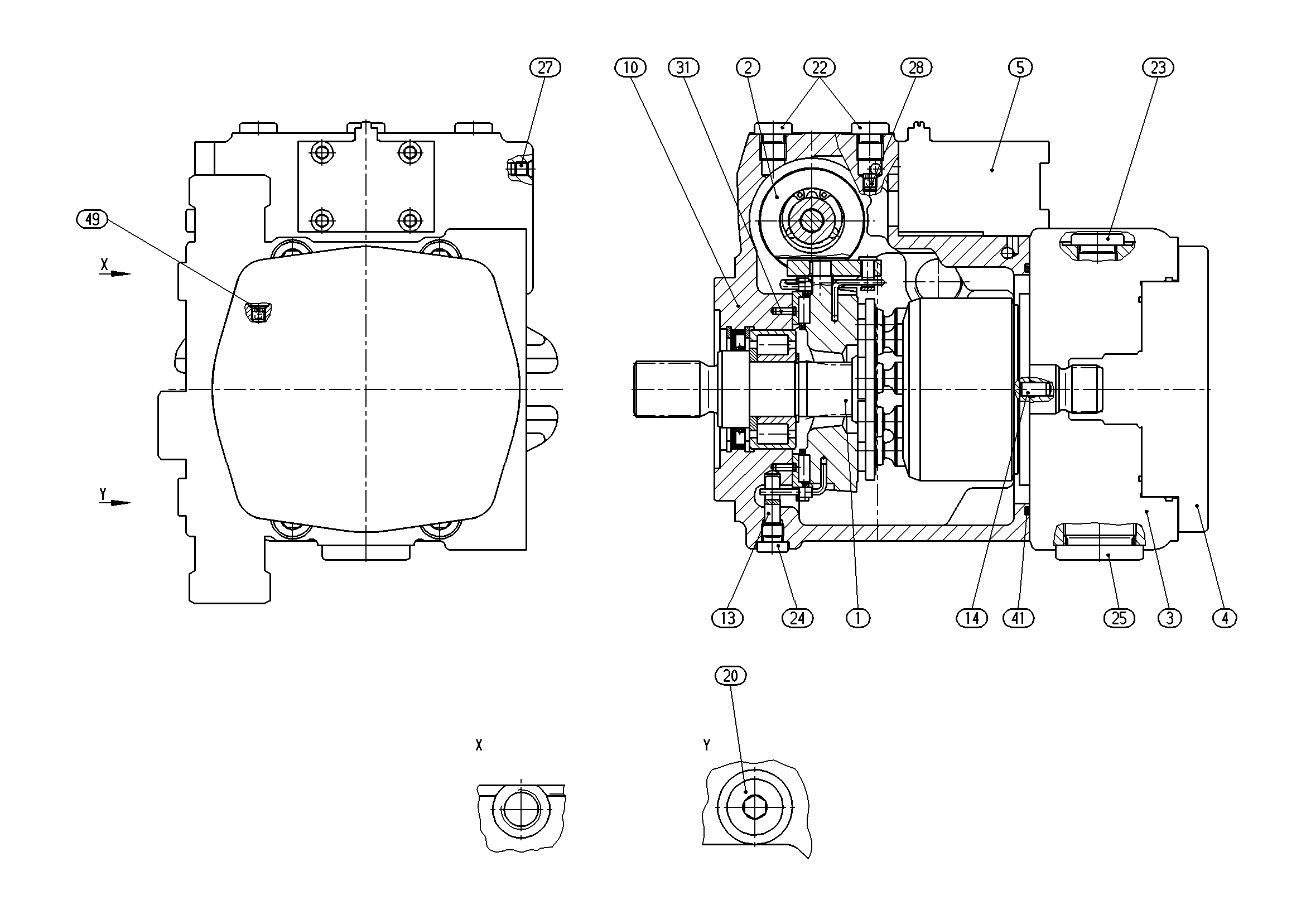

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902102118 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902008076 | CONTROL Assembly parts list →L | 1 | ||
| R902044814 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902246734 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902104486 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902015695 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009665 | STRAIGHT PIN | 1 | ||
| R909153339 | SCREW PLUG | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909086547 | O-RINGD | 1 | ||
| R909831347 | PLUG | 1 | ||
| 98 | R902095560 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi | AA10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| DA control valve | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for single pump | S |
| Mounting flange | SAE J744 2-hole | C |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP | 01 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, 3600 … 4650 psi without bypass fixed setting (250 … 320 bar) | 3 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (on version without integrated boost pump N and K) | E |
| Standard/special version | Special version | -S |
