Unit · AXIAL-PISTON PUMP
A11VO190LRDH1+A11VO190LRDH1+A11VO+A10VR902056407
Axial piston pump Bosch Rexroth series A11VO, type code A11VO190LRDH1+A11VO190LRDH1+A11VO+A10V, material number R902056407. Nominal size: NG 190. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: power controller fixed setting, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter (LRDH1).
- Number
- R902056407
- Type code
- A11VO190LRDH1+A11VO190LRDH1+A11VO+A10V
- Group
- A11VO 190
- Edition
- 06/2020

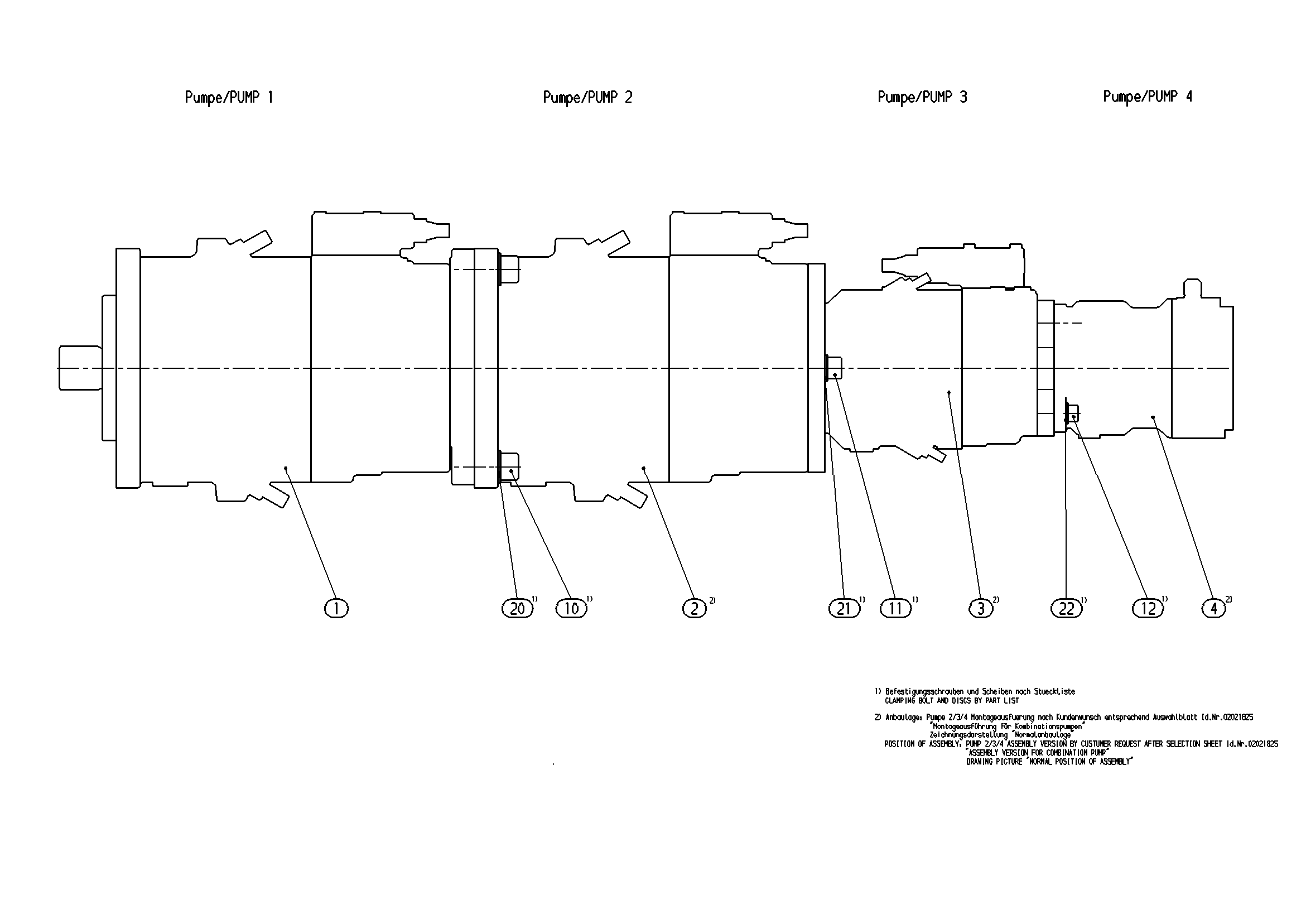

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902039095 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902056408 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909607210 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902433571 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083156 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083154 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010115 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 190 | 190 |
| Control device | Power controller fixed setting, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter | LRDH1 |
