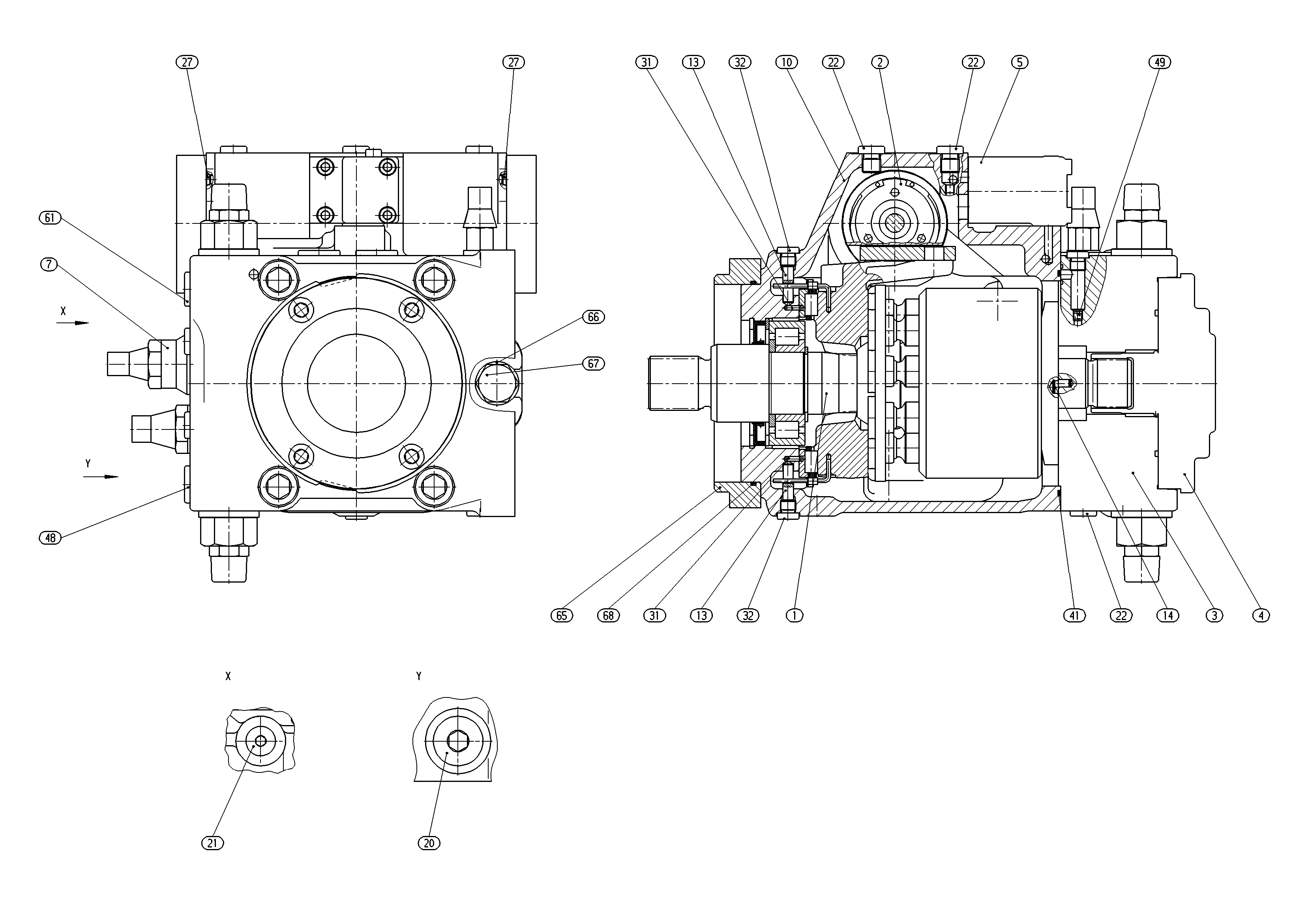

Unit · AXIAL-PISTON PUMP
A4VG90DA2D2/32L-NZD10F001SH-SR902058386
Axial piston pump Bosch Rexroth series A4VG, type code A4VG90DA2D2/32L-NZD10F001SH-S, material number R902058386. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 24 V (DA2). Pressure cut-off: pressure cut-off (D). DA control valve: DA control valve, fixed setting (2). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 4-hole (D). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S).
- Number
- R902058386
- Type code
- A4VG90DA2D2/32L-NZD10F001SH-S
- Group
- A4VG 90
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195479 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902031407 | CONTROL Assembly parts list →L | 1 | ||
| R902009037 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902008970 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902044982 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909414719 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902017950 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| 54 | R909077747 | THROTTLE SCREW | 1 | |
| R909153816 | SCREW PLUG | 1 | ||
| R902017952 | FLANGE | 1 | ||
| R909430408 | WASHER | 2 | ||
| R909086150 | HEXAGON SCREW | 2 | ||
| R909085364 | O-RINGD | 1 | ||
| 98 | R902095526 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Control device | Automatic control, speed related U = 24 V | DA2 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | DA control valve, fixed setting | 2 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 4-hole | D |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Standard/special version | Special version | -S |
