Unit · AXIAL-PISTON PUMP
A4VG180EP2/32+A4VG180EP2/32+A4VG56EP2R902058915
Axial piston pump Bosch Rexroth series A4VG, type code A4VG180EP2/32+A4VG180EP2/32+A4VG56EP2, material number R902058915. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). DA control valve: DA control valve, fixed setting (2).
- Number
- R902058915
- Type code
- A4VG180EP2/32+A4VG180EP2/32+A4VG56EP2
- Group
- A4VG 180
- Edition
- 06/2020

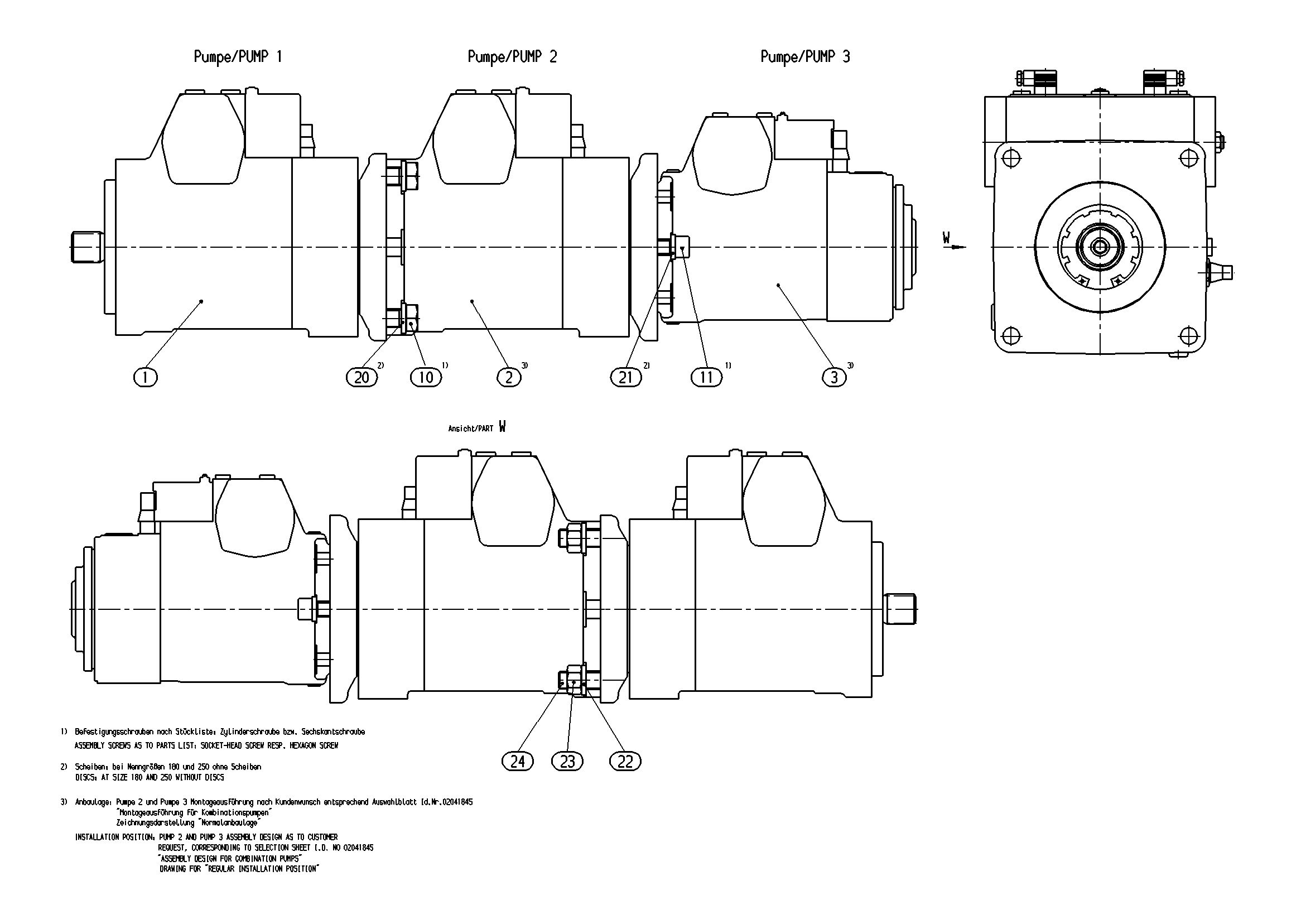

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902058855 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902058856 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902056821 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 2 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430408 | WASHER | 2 | ||
| R909436988 | WASHER | 2 | ||
| R909083620 | HEXAGON NUT | 2 | ||
| R902602113 | STUD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| DA control valve | DA control valve, fixed setting | 2 |
| Series | Series 3, index 2 | 32 |
