Unit · PRESSURE RELIEF VALVE
DBVHDA10VG-18BYPASSSINT52113.0542R902061529
Axial piston pump Bosch Rexroth series A10VG, type code DBVHDA10VG-18BYPASSSINT52113.0542, material number R902061529.
- Number
- R902061529
- Type code
- DBVHDA10VG-18BYPASSSINT52113.0542
- Group
- A10VG 18
- Edition
- 06/2020

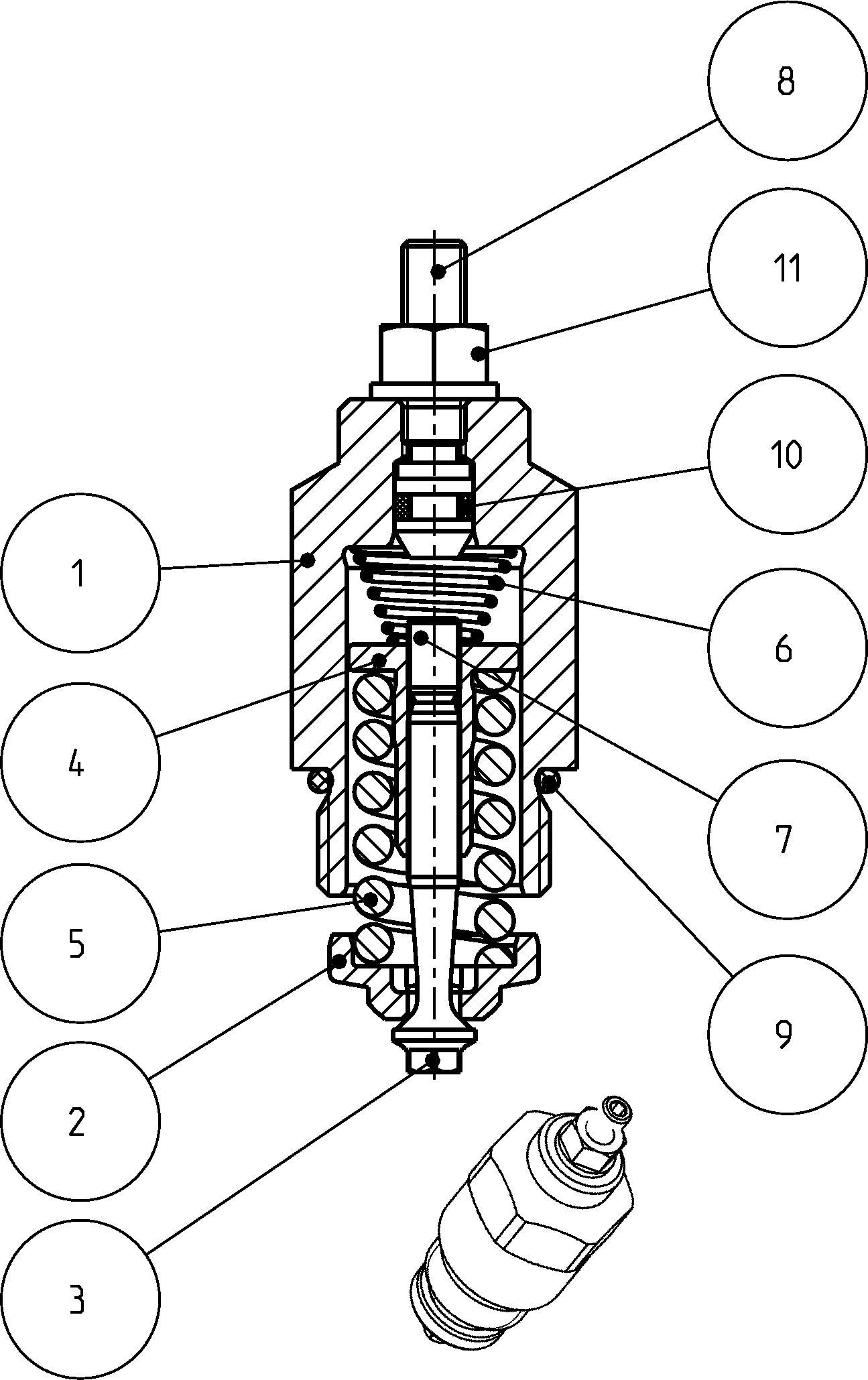

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025138 | SCREW PLUG | 1 | ||
| R902061524 | VALVE PLATE | 1 | ||
| R902000660 | VALVE STEM | 1 | ||
| R902000759 | EXPANSION PIECE | 1 | ||
| R902000688 | COMPRESSION SPRING | 1 | ||
| R902000687 | COMPRESSION SPRING | 1 | ||
| R902000658 | SETSCREW | 1 | ||
| R902025139 | ADJUSTING SCREW | 1 | ||
| R909830863 | O-RINGD | 1 | ||
| R909083723 | O-RING | 1 | ||
| R909152425 | SEALING NUT | 1 |
