Unit · AXIAL-PISTON PUMP
A7VKO28MA/63R-XPB01R902063864
Axial piston pump Bosch Rexroth series A7VK, type code A7VKO28MA/63R-XPB01, material number R902063864. Nominal size: NG 28. Axial piston unit: variable bent-axis design, nominal pressure 250 bar, maximum pressure 315 bar (A7VK). Operation modes: pump, open design (O). Control device: control, manual with handwheel (MA).
- Number
- R902063864
- Type code
- A7VKO28MA/63R-XPB01
- Group
- A7VKO 28
- Edition
- 06/2020

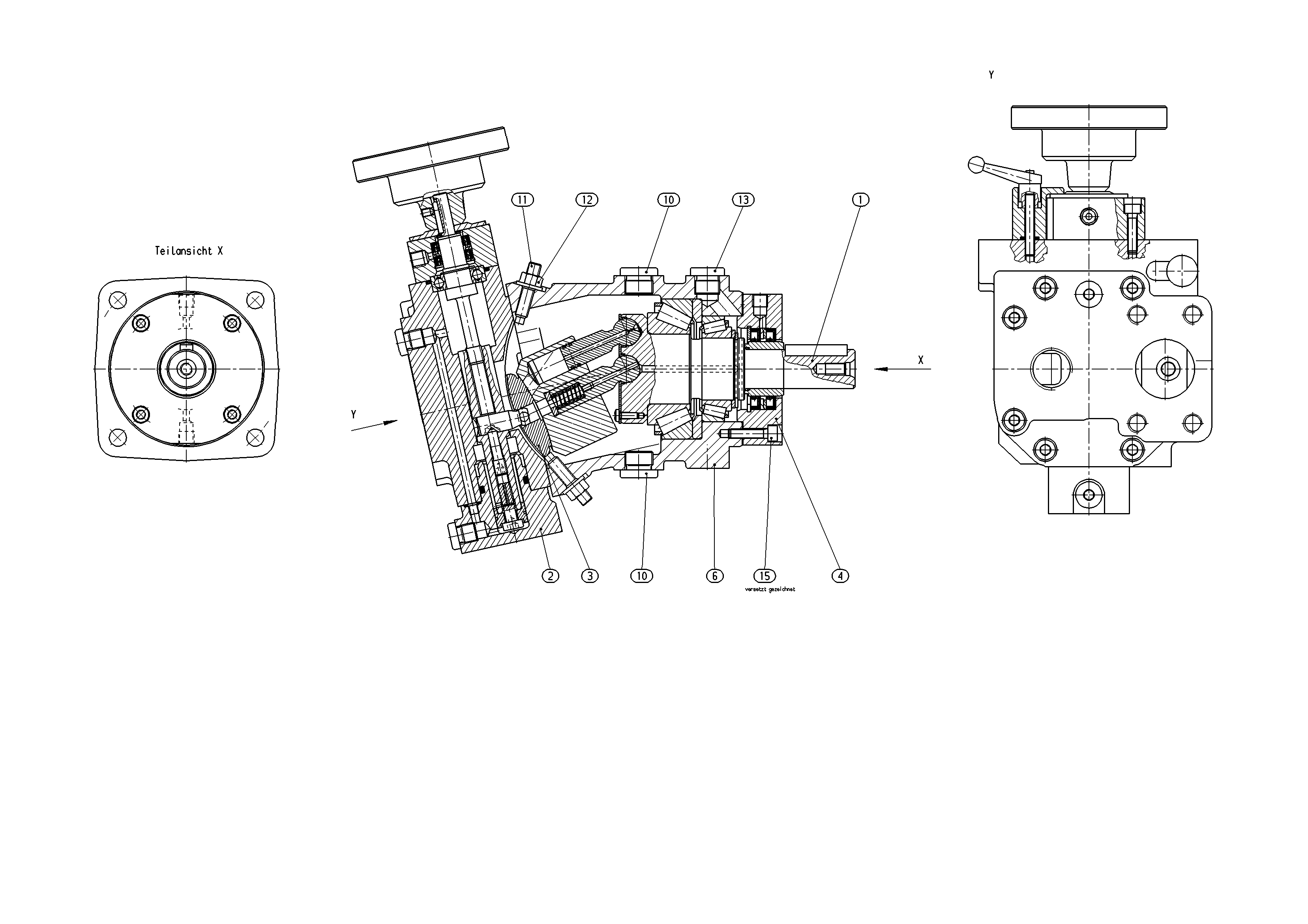

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902063919 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R902063860 | CONTROL Assembly parts list →L | 1 | |
| R902047282 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R902047284 | FLANGE Assembly parts list →L | 1 | ||
| R902065742 | HOUSING | 1 | ||
| R909156651 | SCREW PLUGD | 2 | ||
| 11 | R909447148 | SETSCREW Assembly parts list →L | 2 | |
| R909152707 | SEALING NUTD | 2 | ||
| R909156864 | SCREW PLUGD | 1 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Variable bent-axis design, nominal pressure 250 bar, maximum pressure 315 bar | A7VK |
| Operation modes | Pump, open design | O |
| Sizes (NG) | 28 | 28 |
| Control device | Control, manual with handwheel | MA |
