Unit · AXIAL-PISTON PUMP
A11VO130LG2D/10L-NXD12KXX-SR902064888
Axial piston pump Bosch Rexroth series A11VO, type code A11VO130LG2D/10L-NXD12KXX-S, material number R902064888. Nominal size: NG 130. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: with override pilot-pressure related positive control, with pressure cut-off (LG2D). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Mounting flange: SAE J744 ‒ 4-hole (D). Working port: SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 (12). Standard/special version: special version (S).
- Number
- R902064888
- Type code
- A11VO130LG2D/10L-NXD12KXX-S
- Group
- A11VO 130
- Edition
- 06/2020

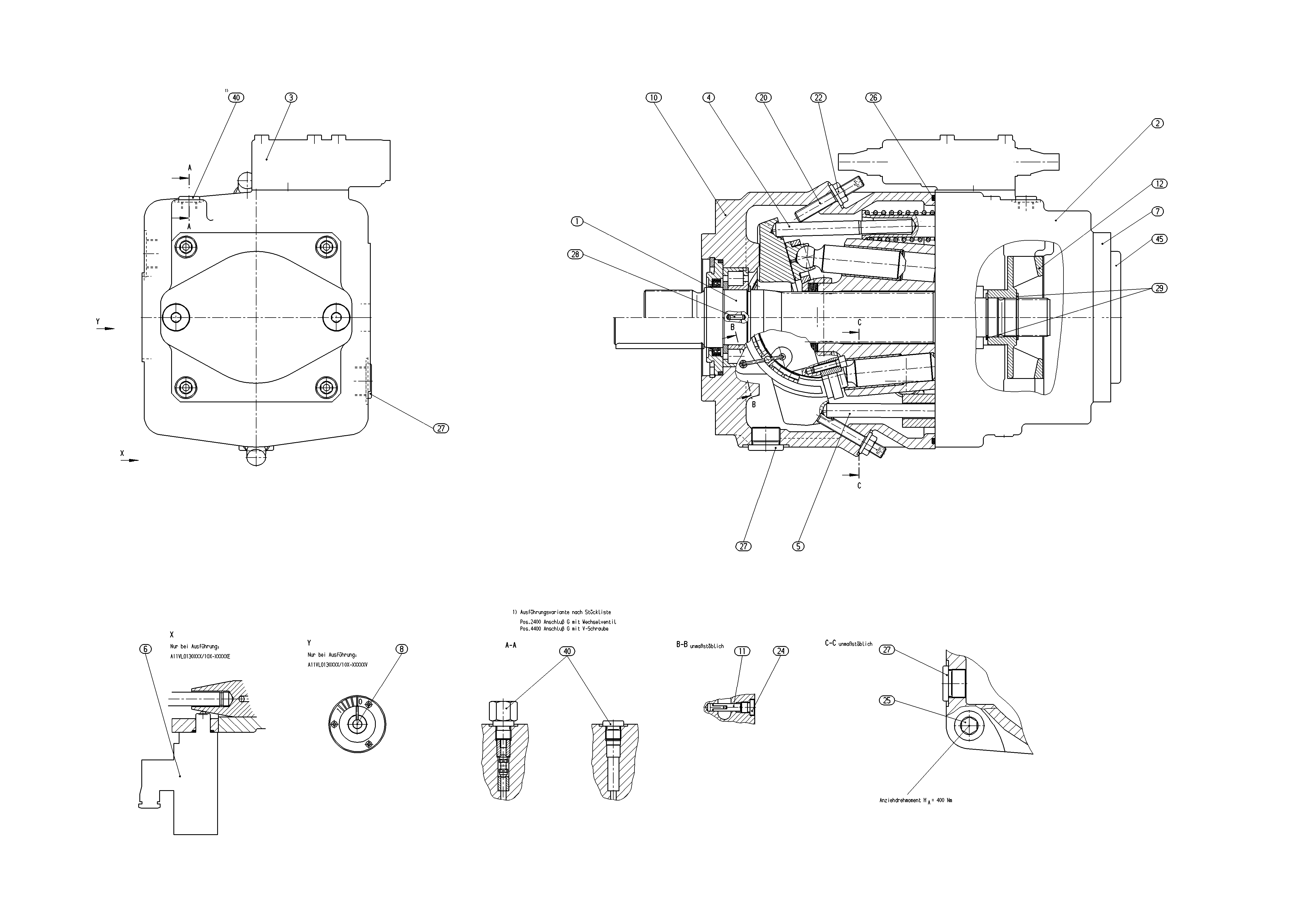

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902064870 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909601780 | CONNECTION PLATE, LL Assembly parts list →L | 1 | ||
| R909608360 | REGULATOR Assembly parts list →L | 1 | ||
| R909601773 | CONTROL Assembly parts list →L | 1 | ||
| R909601775 | CONTROL Assembly parts list →L | 1 | ||
| R909606151 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902117356 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449078 | SETSCREW | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909830782 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083835 | O-RINGD | 1 | ||
| R909153891 | SCREW PLUGD | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909429294 | COVER Assembly parts list →L | 1 | ||
| 98 | R902095610 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 130 | 130 |
| Control device | with override pilot-pressure related positive control, with pressure cut-off | LG2D |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Working port | SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 | 12 |
| Standard/special version | Special version | S |
