Unit · AXIAL-PISTON PUMP
AA4VG56DE1D1/32R-NXC52F025DC-SR902067394
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG56DE1D1/32R-NXC52F025DC-S, material number R902067394. Nominal size: NG 56. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (52). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP (02). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 3600 to 6100 psi direct operated, fixed setting (250 to 420 bar) with bypass (5). Filtration boost circuit/external boost pressure supply: filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) (D). Standard/special version: special version (-S).
- Number
- R902067394
- Type code
- AA4VG56DE1D1/32R-NXC52F025DC-S
- Group
- A4VG 56
- Edition
- 12/2019

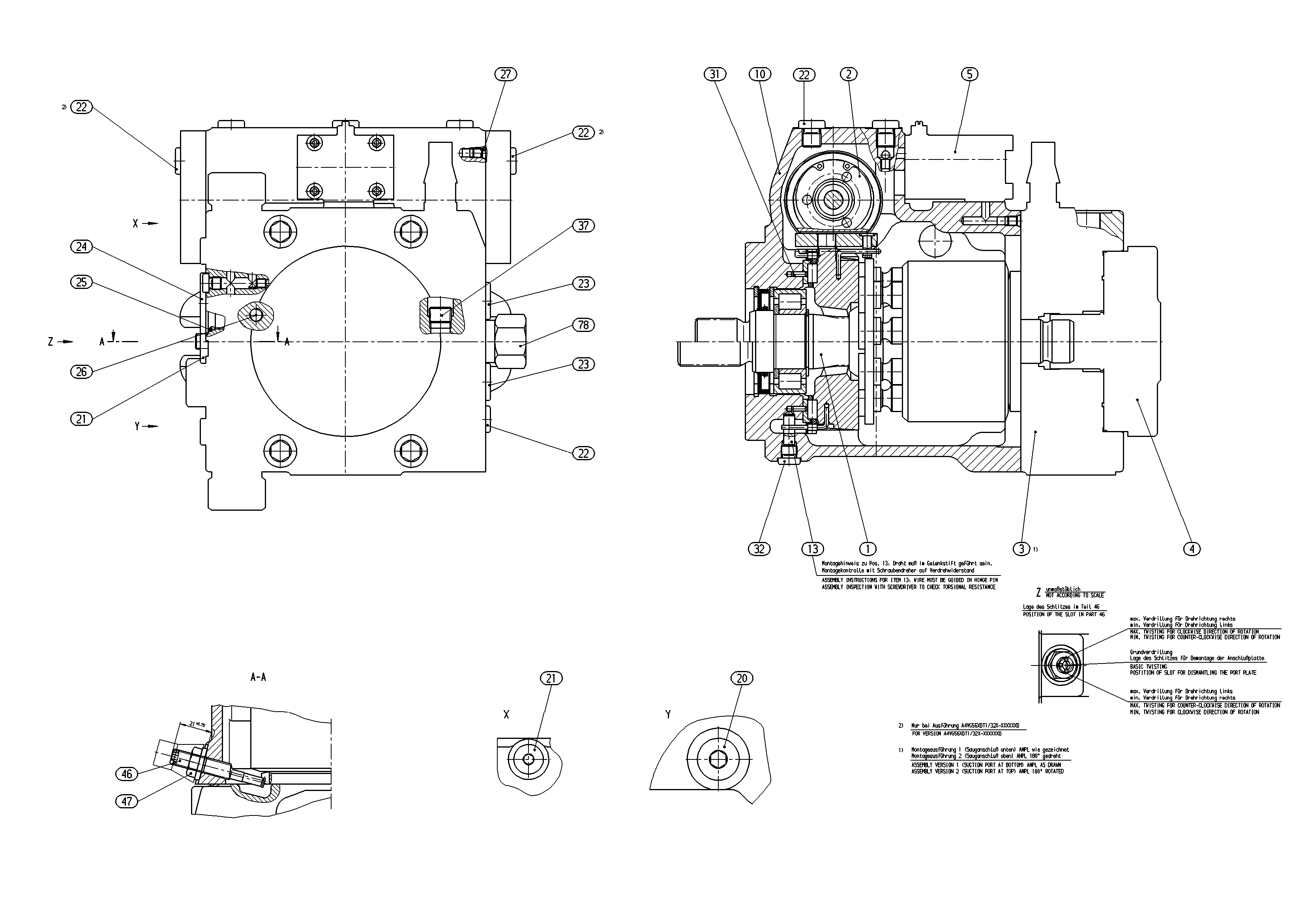

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902068162 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902022889 | CONTROL Assembly parts list →L | 1 | ||
| R909609352 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606390 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902085561 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902029575 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| 14 | R909405732 | POITIONING PIN | 1 | |
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154478 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909154981 | SETSCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| 49 | R909156497 | NOZZLE | 1 | |
| R909607033 | THREADED PART Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 56 | 56 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 52 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP | 02 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 3600 to 6100 psi direct operated, fixed setting (250 to 420 bar) with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Standard/special version | Special version | -S |
