Unit · AXIAL-PISTON MOTOR
A6VM160HD1/63W-XAB010A-SR902073842
Axial piston motor Bosch Rexroth series A6VM, type code A6VM160HD1/63W-XAB010A-S, material number R902073842. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Direction of rotation: viewed on drive shaft variable (W). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902073842
- Type code
- A6VM160HD1/63W-XAB010A-S
- Group
- A6VM 160
- Edition
- 06/2020

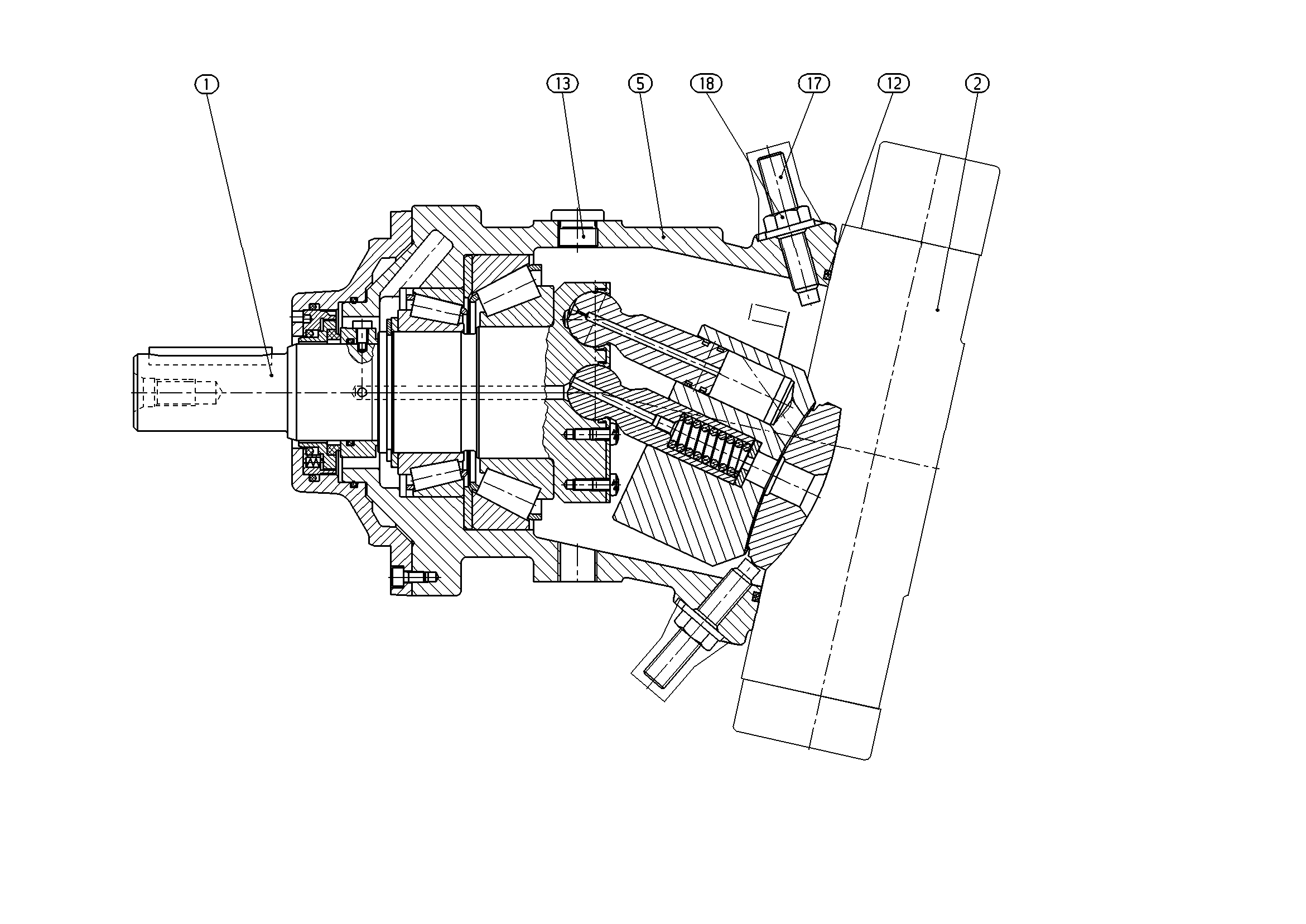

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902084090 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909604212 | CONTROL Assembly parts list →L | 1 | ||
| R902060025 | HOUSING | 1 | ||
| R902253127 | SEAL RINGD | 1 | ||
| R909156989 | SCREW PLUGD | 1 | ||
| 17 | R909446862 | SETSCREW Assembly parts list →L | 2 | |
| R909152459 | SEALING NUT | 2 | ||
| 98 | R902166936 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
