Unit · AXIAL-PISTON MOTOR
A10VT28HZ/10W140-NN66B027R902078278
Axial piston motor Bosch Rexroth series A10VT, type code A10VT28HZ/10W140-NN66B027, material number R902078278.
- Number
- R902078278
- Type code
- A10VT28HZ/10W140-NN66B027
- Group
- A10VT 28
- Edition
- 07/2020

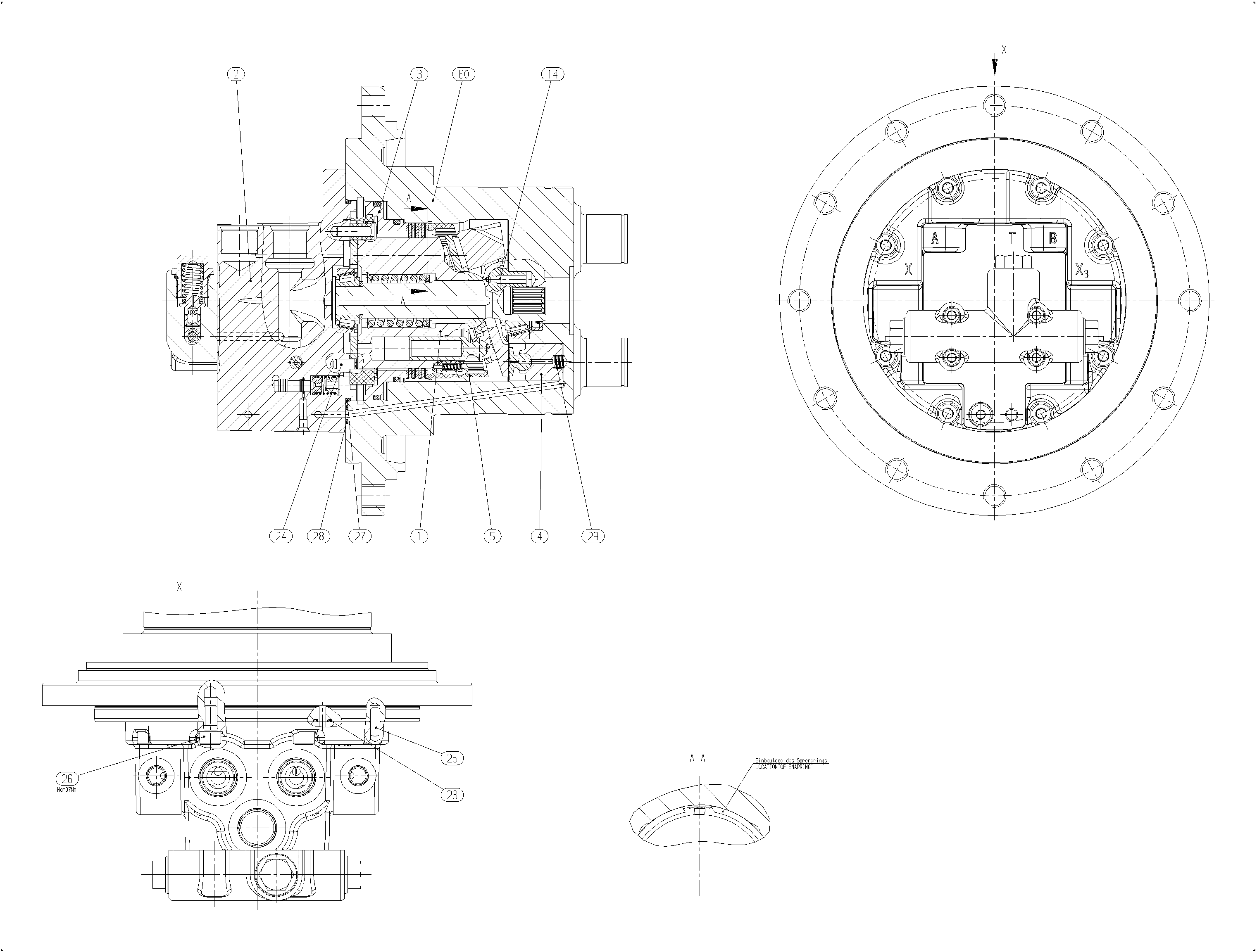

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902081889 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902078275 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902078365 | THRUST RING Assembly parts list →L | 1 | ||
| R902071409 | ADJUSTING PISTON Assembly parts list →L | 1 | ||
| R902078471 | CRADLE STOP Assembly parts list →L | 1 | ||
| R902039764 | SWIVEL BALL | 2 | ||
| R913009677 | STRAIGHT PIND | 1 | ||
| R900748992 | STRAIGHT PIND | 1 | ||
| R909087241 | SOCKET HEAD CAP SCREW | 8 | ||
| R902600737 | O-RING | 1 | ||
| R910942133 | R-RING | 2 | ||
| R902078140 | COMPRESSION SPRING | 1 | ||
| R916638218 | SPINDLE | 1 |
