Unit · AXIAL-PISTON PUMP
A4VG90EP1DM1/32R-NUD10N003EH-SR902079773
Axial piston pump Bosch Rexroth series A4VG, type code A4VG90EP1DM1/32R-NUD10N003EH-S, material number R902079773. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a only for combination pump – 2nd pump (U). Mounting flange: SAE J744 4-hole (D). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: without integrated boost pump without through drive (N). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 250 … 420 bar without bypass direct operated, fixed setting (3). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E).
- Number
- R902079773
- Type code
- A4VG90EP1DM1/32R-NUD10N003EH-S
- Group
- A4VG 90
- Edition
- 05/2020

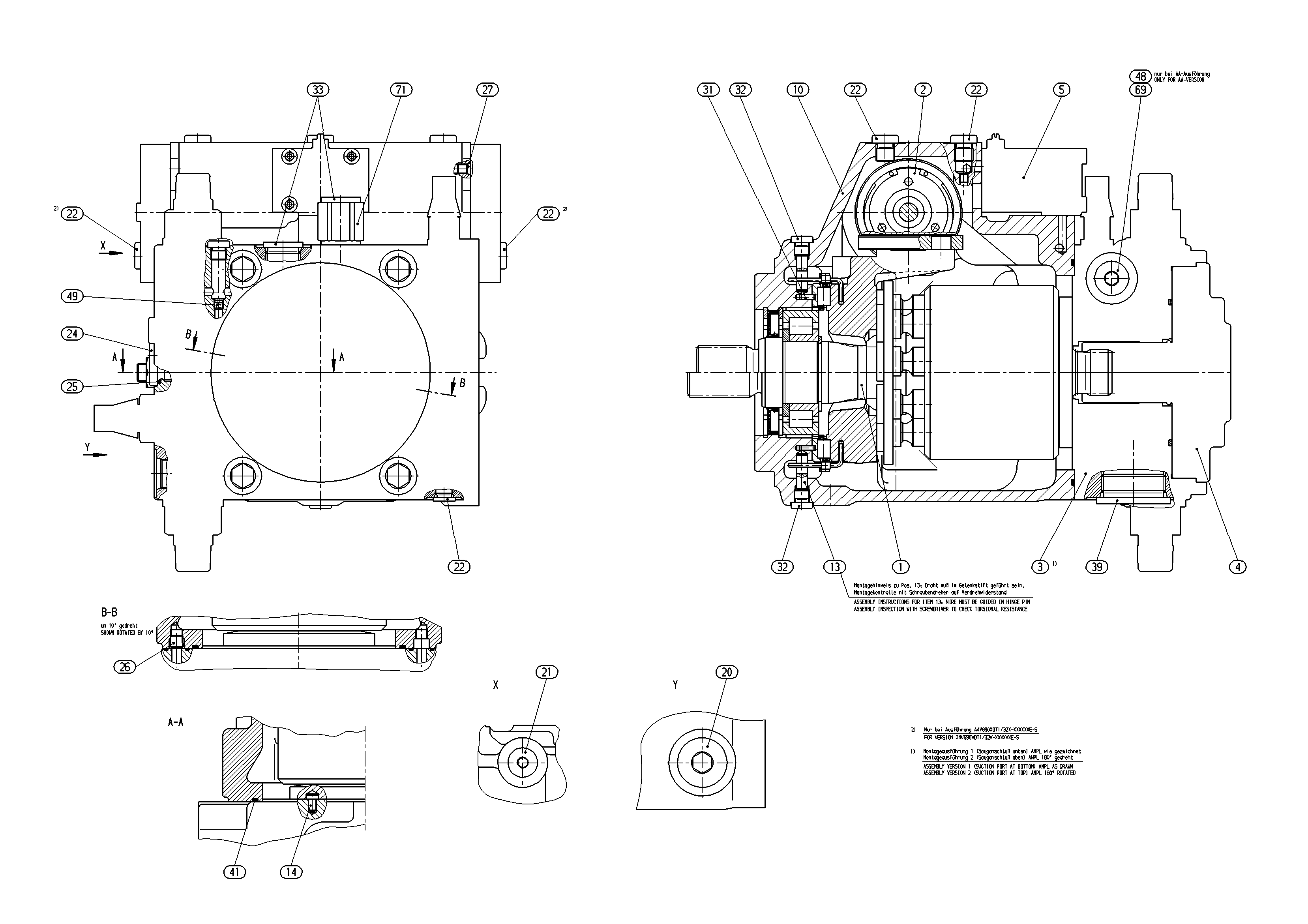

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195463 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902017212 | CONTROL Assembly parts list →L | 1 | ||
| R902079780 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606460 | PUMP COVER Assembly parts list →L | 1 | ||
| R902056215 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902071206 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 28 | R909426701 | NOZZLE | 2 | |
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151694 | SCREW PLUG | 1 | ||
| R909153330 | O-RINGD | 1 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| 61 | R909153816 | SCREW PLUG | 1 | |
| R909922096 | LOCKING PIECE | 1 | ||
| 73 | R900012473 | SEAL RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a only for combination pump – 2nd pump | U |
| Mounting flange | SAE J744 4-hole | D |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Without integrated boost pump without through drive | N |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 250 … 420 bar without bypass direct operated, fixed setting | 3 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Standard/special version | Special version | -S |
