Unit · AXIAL-PISTON PUMP
A11VO75DRX/10L-VZD12N00-SR902083433
Axial piston pump Bosch Rexroth series A11VO, type code A11VO75DRX/10L-VZD12N00-S, material number R902083433. Nominal size: NG 75. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 for single and combination pump (Z). Mounting flange: SAE J744 ‒ 4-hole (D). Working port: SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 (12). Through drive: ‒ ‒ (N00). Standard/special version: special version (S).
- Number
- R902083433
- Type code
- A11VO75DRX/10L-VZD12N00-S
- Group
- A11VO 75
- Edition
- 05/2020

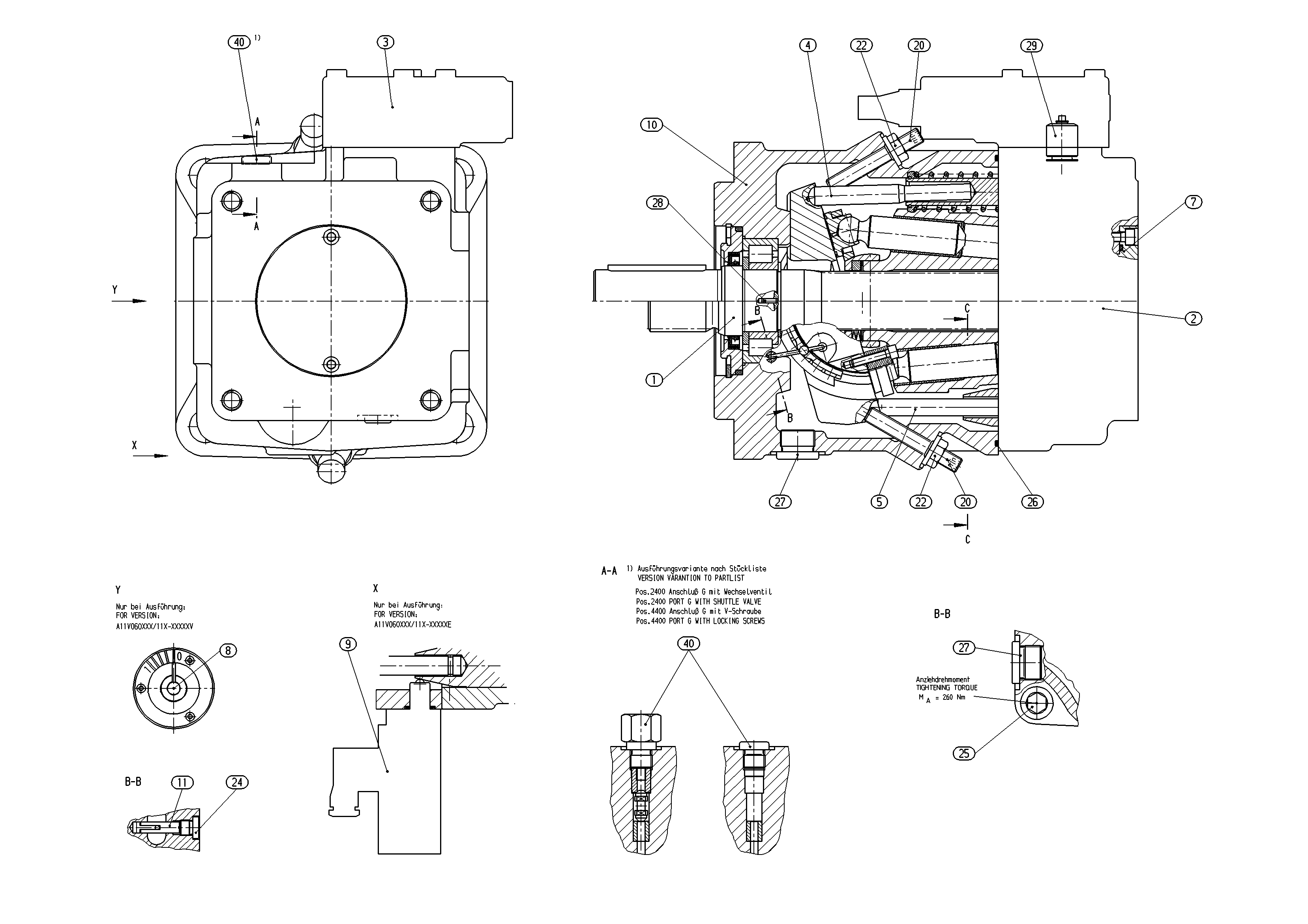

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902044392 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902085889 | CONNECTION PLATE, LL Assembly parts list →L | 1 | ||
| R902081866 | REGULATOR Assembly parts list →L | 1 | ||
| R909446456 | CONTROL Assembly parts list →L | 1 | ||
| R909441528 | CONTROL Assembly parts list →L | 1 | ||
| R902026667 | COVER Assembly parts list →L | 1 | ||
| R909443002 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449078 | SETSCREW | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909156649 | SCREW PLUGD | 4 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| R913057293 | O-RINGD | 1 | ||
| R909156654 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909830659 | TEST POINT | 1 | ||
| R902081790 | LOCKING SET | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 75 | 75 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 for single and combination pump | Z |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Working port | SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 | 12 |
| Through drive | ‒ ‒ | N00 |
| Standard/special version | Special version | S |
