Unit · AXIAL-PISTON PUMP
A10VT28HZ/10W158-NN81N000R902085174

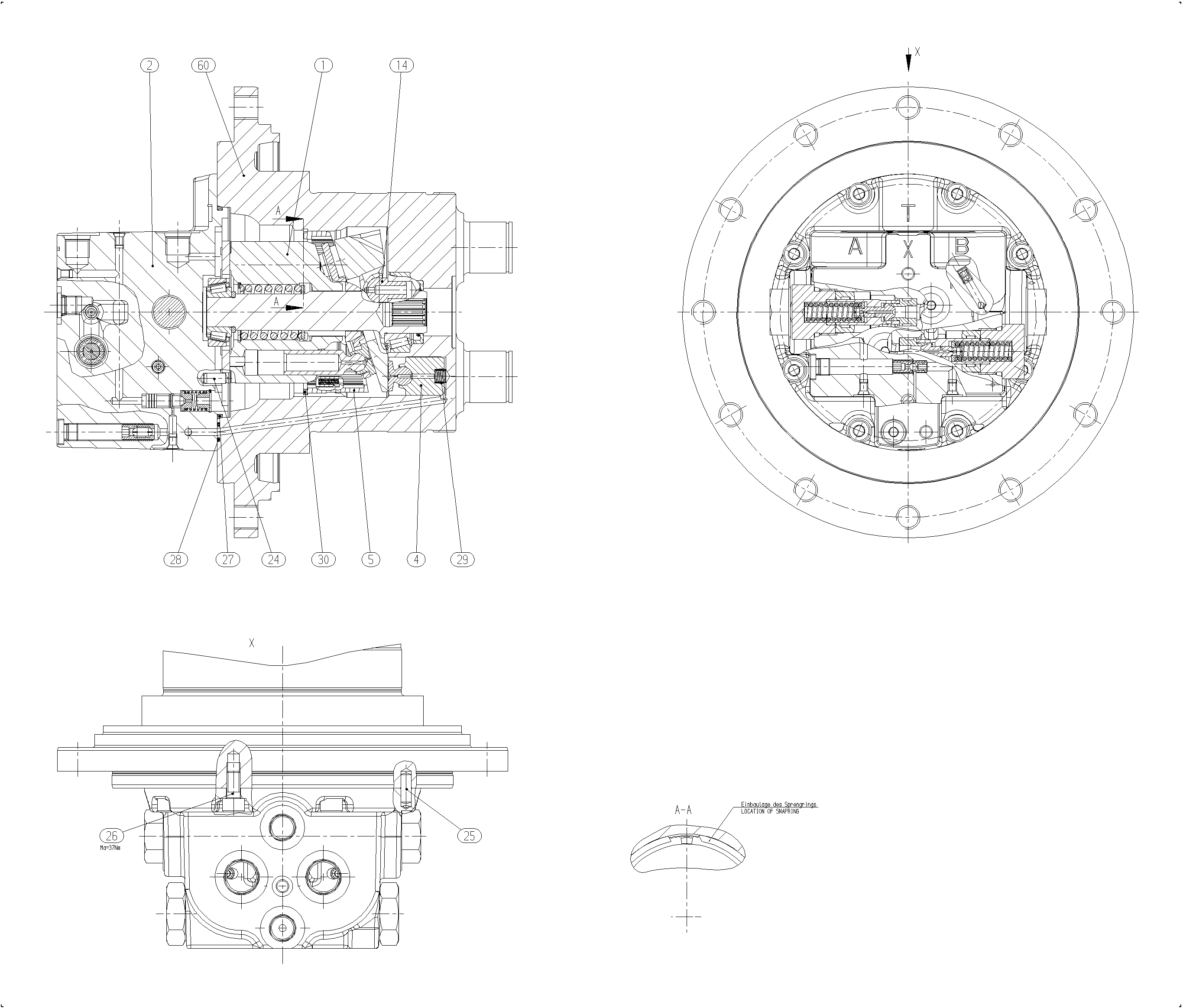

Axial piston pump Bosch Rexroth series A10VT, type code A10VT28HZ/10W158-NN81N000, material number R902085174.
- Number
- R902085174
- Type code
- A10VT28HZ/10W158-NN81N000
- Group
- A10VT 28
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902088096 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902085200 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902071409 | ADJUSTING PISTON Assembly parts list →L | 1 | ||
| R902071046 | CRADLE STOP Assembly parts list →L | 1 | ||
| R902039764 | SWIVEL BALL | 2 | ||
| R913009677 | STRAIGHT PIND | 1 | ||
| R900748992 | STRAIGHT PIND | 1 | ||
| R909087241 | SOCKET HEAD CAP SCREW | 8 | ||
| R902600737 | O-RING | 1 | ||
| R910942133 | R-RING | 2 | ||
| R902078140 | COMPRESSION SPRING | 1 | ||
| R909154747 | SNAP RING | 1 | ||
| R916638215 | SPINDLE | 1 |
