Unit · AXIAL-PISTON PUMP

A4VG28EP11/32L-XXXXXN00XE-SR902086306

Axial piston pump Bosch Rexroth series A4VG, type code A4VG28EP11/32L-XXXXXN00XE-S, material number R902086306. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Boost pump: without integrated boost pump without through drive (N). Through drive: without through drive, only for version N and F (00). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E). Standard/special version: special version (-S).

Number
R902086306
Type code
A4VG28EP11/32L-XXXXXN00XE-S
Group
A4VG 28
Edition
06/2020

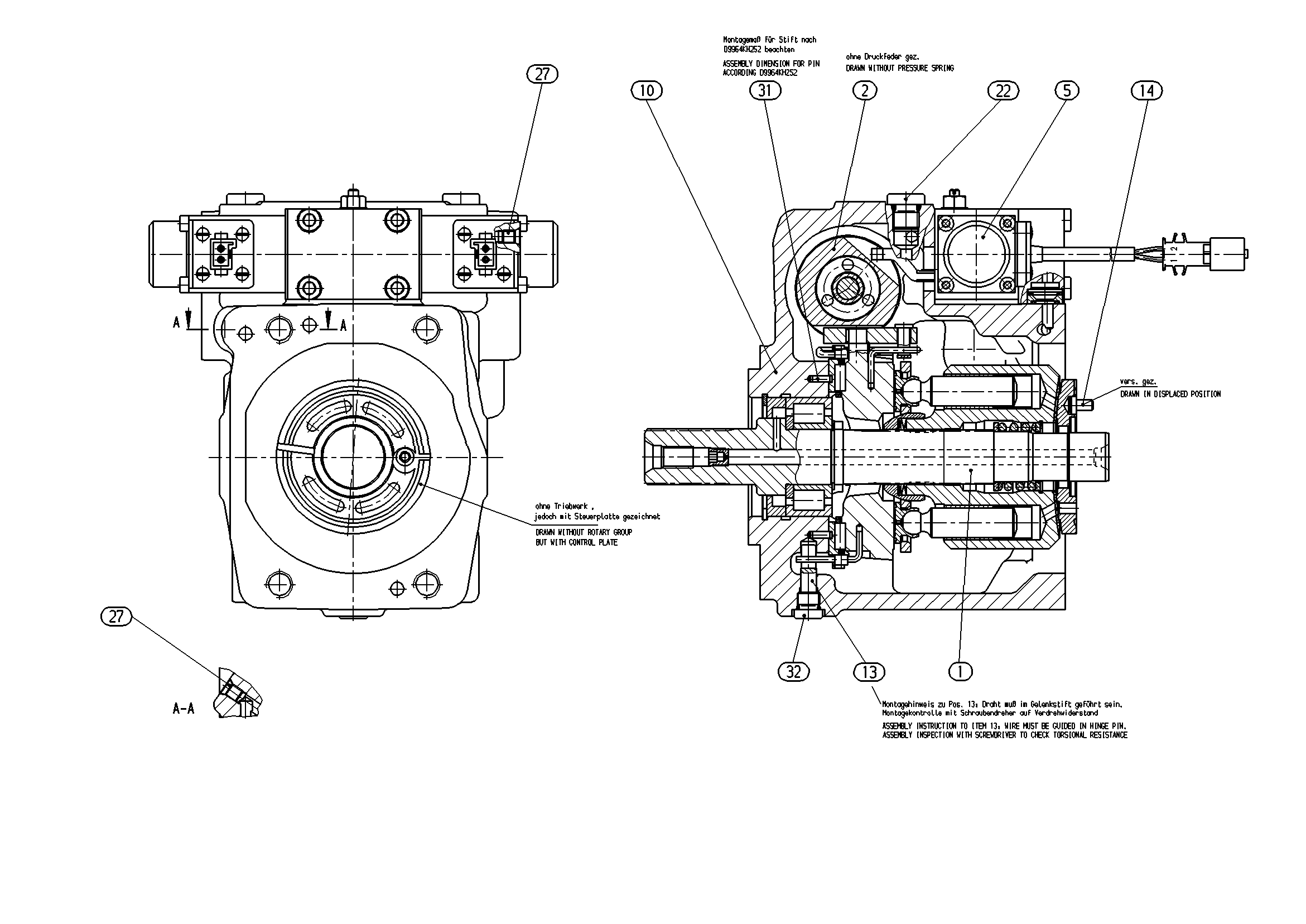

A4VG28EP11/32L-XXXXXN00XE-S — Drawing
Pos.NumberNameQtyAdd to inquiry
1R902047963ROTARY GROUP Assembly parts list →L1
R902047760CONTROL Assembly parts list →L1
R902106920CONTROL MODULE Assembly parts list →L1
R902047906HOUSING1
R902114380PIVOT PIN1
R909405732POITIONING PIN1
R909831743SCREW PLUG2
R909831318DOUBLE BREAK-OFF PLUG2
R913016373SLOTTED SPRING PIN2
R902601874SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psiA4V
Operating modePump, closed circuitG
Size (NG)2828
DA control valveWithout DA control valve1
SeriesSeries 3, index 232
Direction of rotationViewed on drive shaft counter-clockwiseL
Boost pumpWithout integrated boost pump without through driveN
Through driveWithout through drive, only for version N and F00
Filtration boost circuit/external boost pressure supplyExternal boost pressure supply (version without integrated boost pump – N00, K...)E
Standard/special versionSpecial version-S
