Unit · AXIAL-PISTON MOTOR
A6VE55HZ3/63W-VZL027FB-SR902086742
Axial piston motor Bosch Rexroth series A6VM, type code A6VE55HZ3/63W-VZL027FB-S, material number R902086742. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902086742
- Type code
- A6VE55HZ3/63W-VZL027FB-S
- Group
- A6VE 55
- Edition
- 06/2020

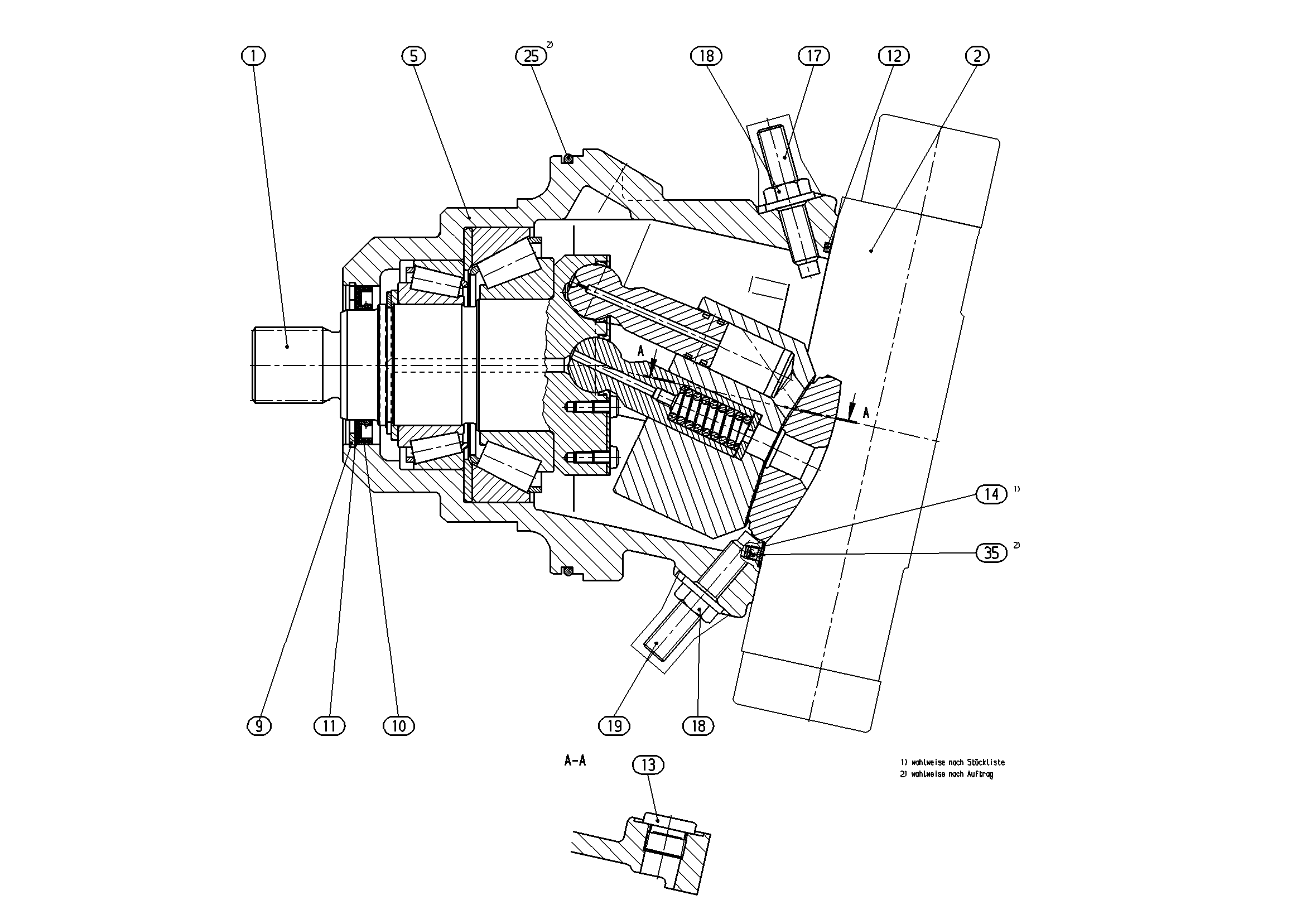

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909604692 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909610903 | CONTROL Assembly parts list →L | 1 | ||
| 5 | R902063720 | HOUSING | 1 | |
| 9 | R909083408 | RETAINING RING | 1 | |
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| 11 | R909087079 | SUPPORTING DISCD | 1 | |
| R902253125 | SEAL RINGD | 1 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R909447003 | SETSCREW Assembly parts list →L | 2 | ||
| R909152426 | SEALING NUTD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 55 | 55 |
| Control device | Two-point control, hydraulic | HZ |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
