Unit · AXIAL-PISTON PUMP
AA10VG18MDN1/10R-NSC66XXXXX-SR902089493
Axial piston pump Bosch Rexroth series A10VG, type code AA10VG18MDN1/10R-NSC66XXXXX-S, material number R902089493. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi (AA10V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for single pump (S). Mounting flange: SAE J744 2-hole (C). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, fixed setting 1450 … 3600 psi (100 … 250 bar) with bypass (6). Standard/special version: special version (-S).
- Number
- R902089493
- Type code
- AA10VG18MDN1/10R-NSC66XXXXX-S
- Group
- A10VG 18
- Edition
- 07/2020

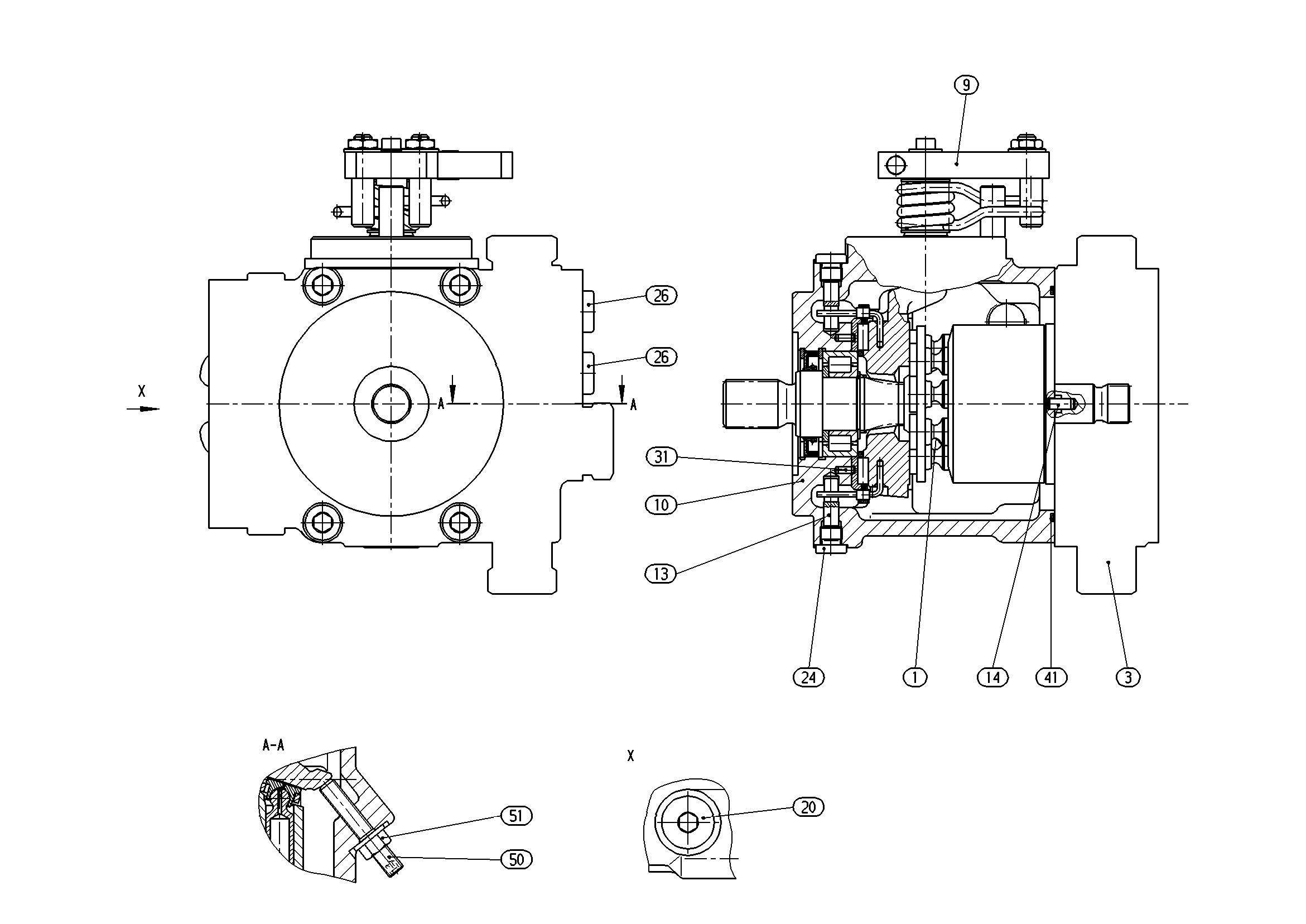

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902108201 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902089496 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902043081 | CONTROL Assembly parts list →L | 1 | ||
| R902269435 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R913009664 | STRAIGHT PIN | 1 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909154589 | O-RINGD | 1 | ||
| R902043471 | SETSCREW | 2 | ||
| R909152707 | SEALING NUTD | 2 | ||
| 98 | R902095566 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi | AA10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 18 | 18 |
| DA control valve | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for single pump | S |
| Mounting flange | SAE J744 2-hole | C |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, fixed setting 1450 … 3600 psi (100 … 250 bar) with bypass | 6 |
| Standard/special version | Special version | -S |
