Unit · AXIAL-PISTON PUMP
A8VO120/80R1-NSG05F29321.R902090043
Axial piston pump Bosch Rexroth series A8VO, type code A8VO120/80R1-NSG05F29321., material number R902090043. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Service line ports: SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) (5). Auxiliary pump: with integrated auxiliary pump Standard (F).
- Number
- R902090043
- Type code
- A8VO120/80R1-NSG05F29321.
- Group
- A8VO 120
- Edition
- 06/2020

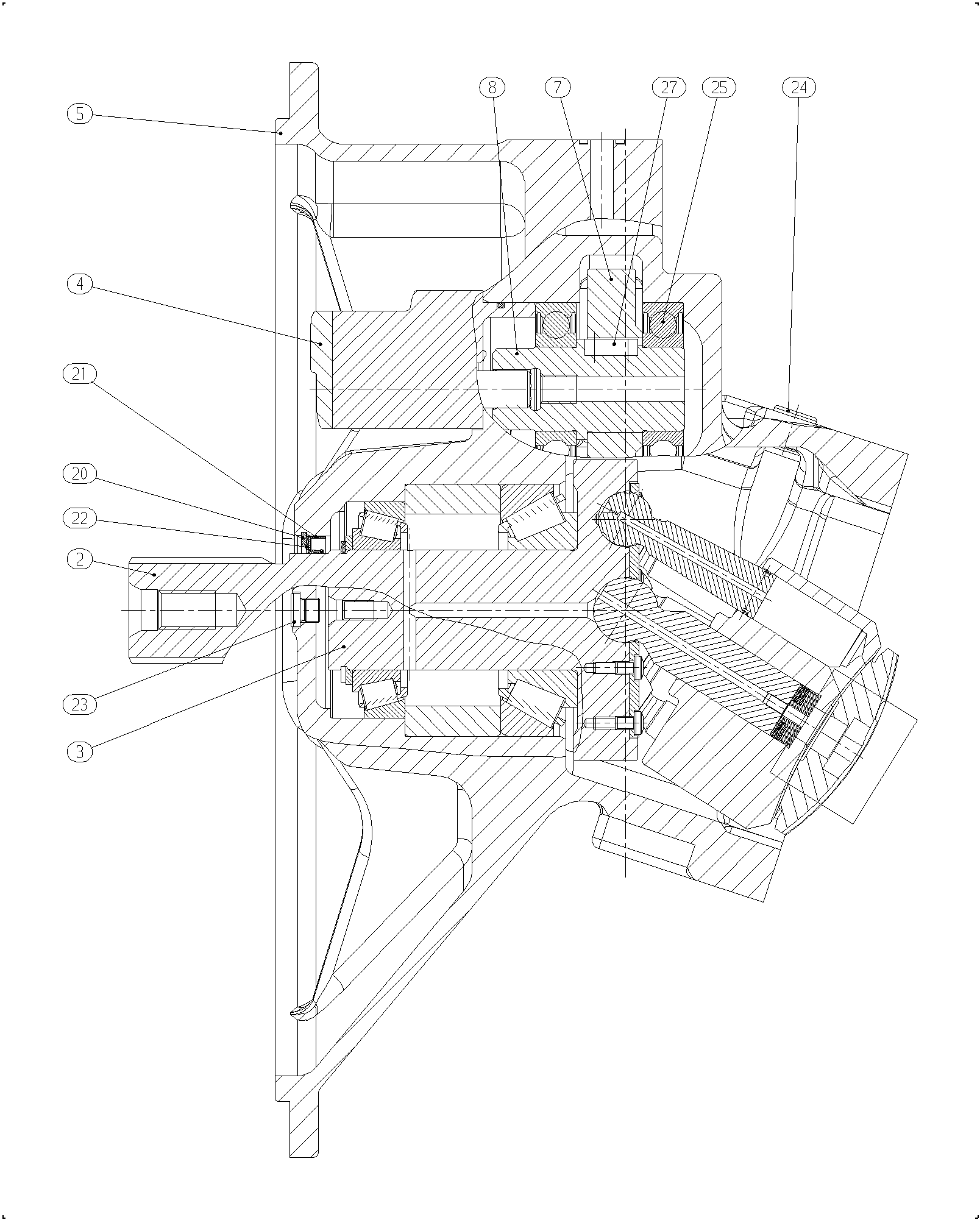

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902090030 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902090031 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902602848 | HYDRAULIC GEAR PUMP | 1 | ||
| R902088923 | PUMP HOUSING | 1 | ||
| R902088974 | TOOTHED WHEEL | 1 | ||
| R902088973 | PLUG-IN SHAFT | 1 | ||
| R909083408 | RETAINING RING | 1 | ||
| R909831232 | SHAFT SEALING RINGD | 1 | ||
| R909150998 | SHIM RING | 1 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R902601850 | SCREW PLUGD | 3 | ||
| R909085462 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909157352 | PARALLEL KEY | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Service line ports | SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) | 5 |
| Auxiliary pump | With integrated auxiliary pump Standard | F |
