Unit · KVAA7VO80
KVAA7VO80R902092021
Axial piston pump Bosch Rexroth series A7VO, type code KVAA7VO80, material number R902092021. Nominal size: NG 80. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O).
- Number
- R902092021
- Type code
- KVAA7VO80
- Group
- A7VO 80
- Edition
- 06/2020

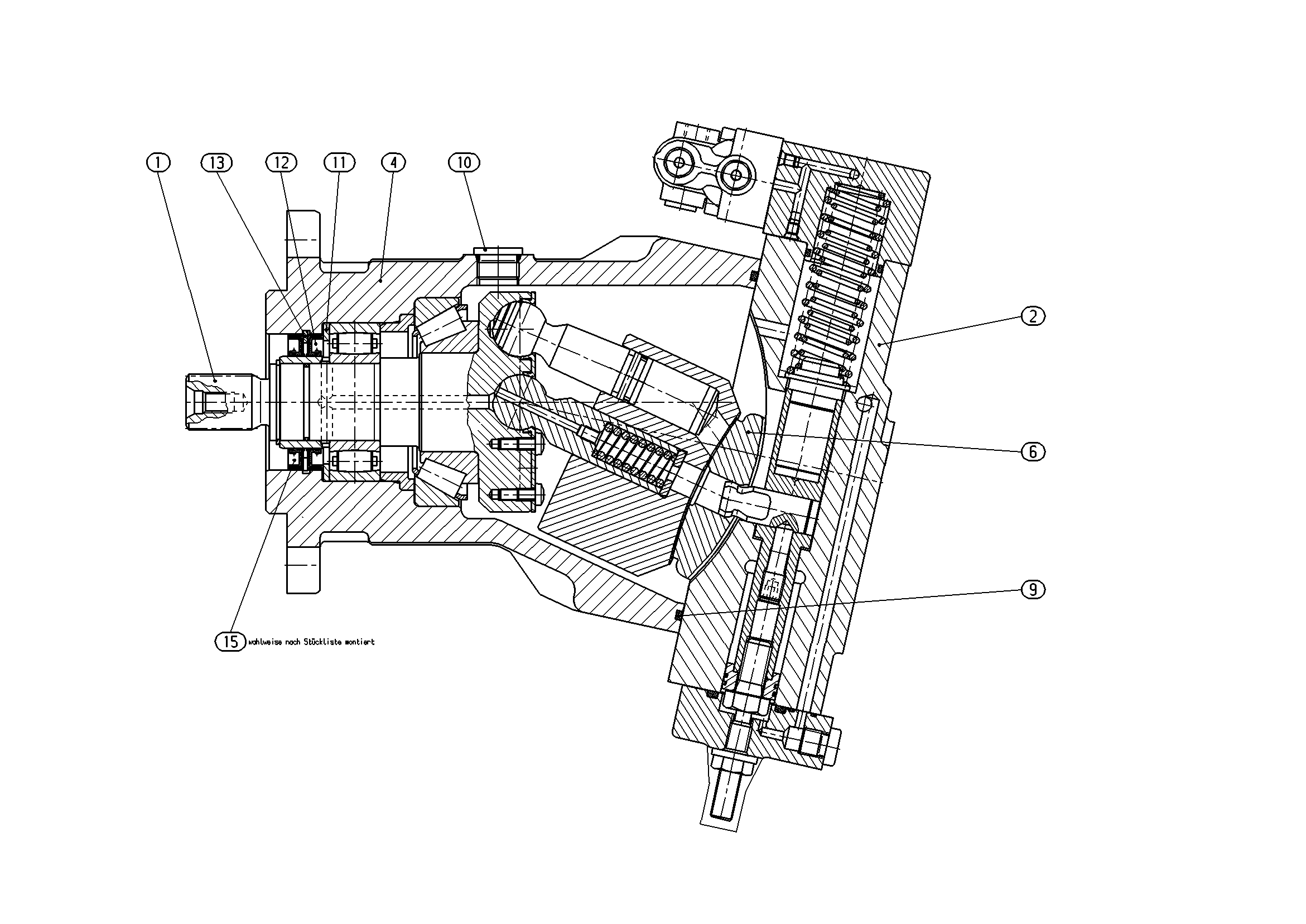

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902060089 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R902070816 | CONTROL Assembly parts list →L | 1 | |
| R902194135 | HOUSING | 1 | ||
| R909650451 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| 9 | R909083831 | O-RINGD | 1 | |
| R910901969 | SCREW PLUG | 1 | ||
| 11 | R909087188 | SUPPORTING DISCD | 1 | |
| R909832131 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083408 | RETAINING RING | 2 | ||
| R909832131 | ROTARY SHAFT LIP SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 80 | 80 |
