Unit · AXIAL-PISTON MOTOR
AA6VMN55HZ/60W-PSD520B-ER902092038
Axial piston motor Bosch Rexroth series A6VM, type code AA6VMN55HZ/60W-PSD520B-E, material number R902092038. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft bidirectional (W). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902092038
- Type code
- AA6VMN55HZ/60W-PSD520B-E
- Group
- A6VMN 55
- Edition
- 06/2020

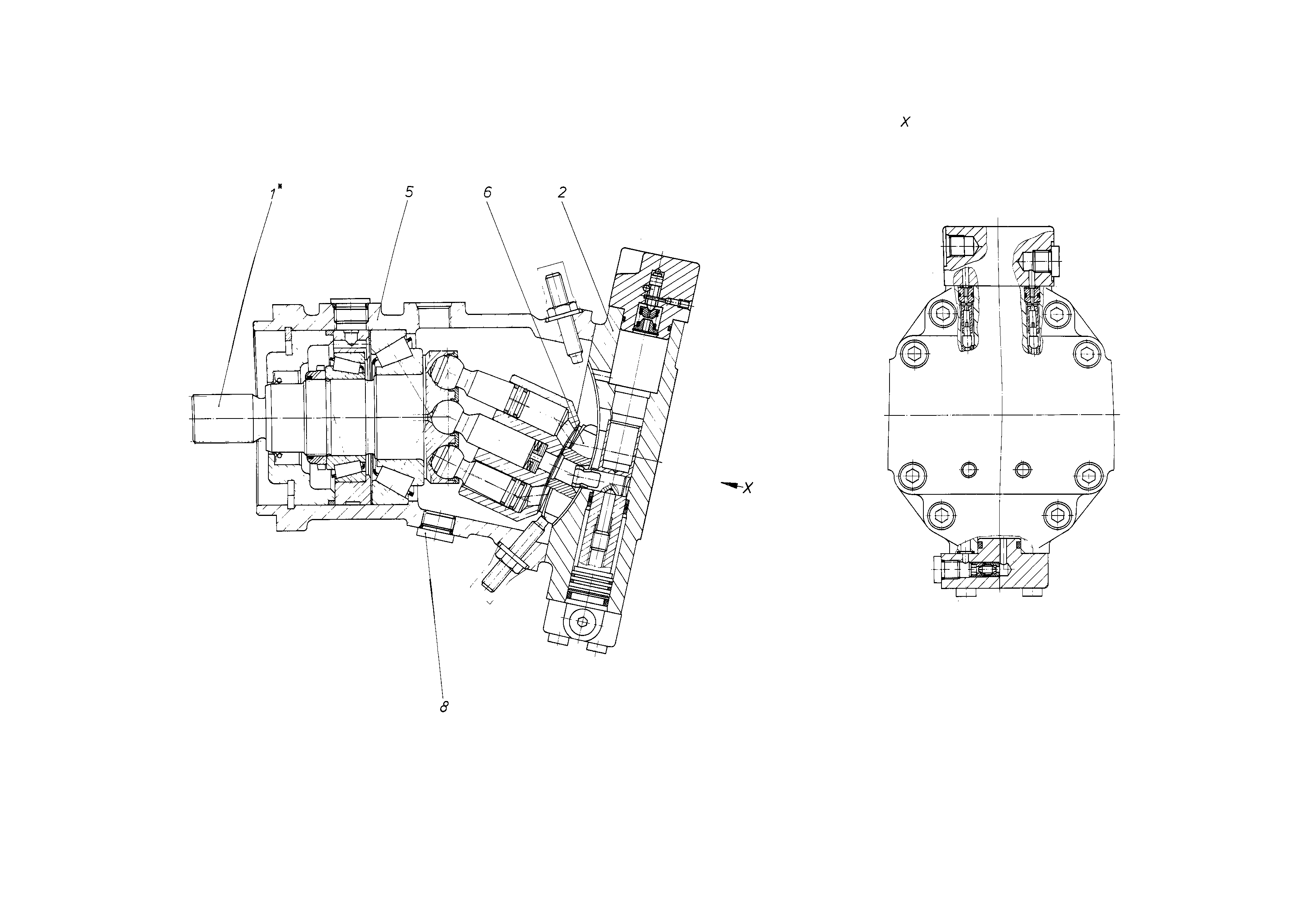

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909417855 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437174 | CONTROL Assembly parts list →L | 1 | ||
| R909436184 | HOUSING | 1 | ||
| R909921786 | CONTROL LENS | 1 | ||
| R909153339 | SCREW PLUGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Two-point control, hydraulic | HZ |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 52 | 520 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
