Unit · AXIAL-PISTON PUMP
AA4VG90MSD2/32L-NSF52F011S-ESR902092321
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG90MSD2/32L-NSF52F011S-ES, material number R902092321. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: DA control valve, fixed setting (2). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (52). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP (01). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) (1). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S).
- Number
- R902092321
- Type code
- AA4VG90MSD2/32L-NSF52F011S-ES
- Group
- A4VG 90
- Edition
- 06/2020

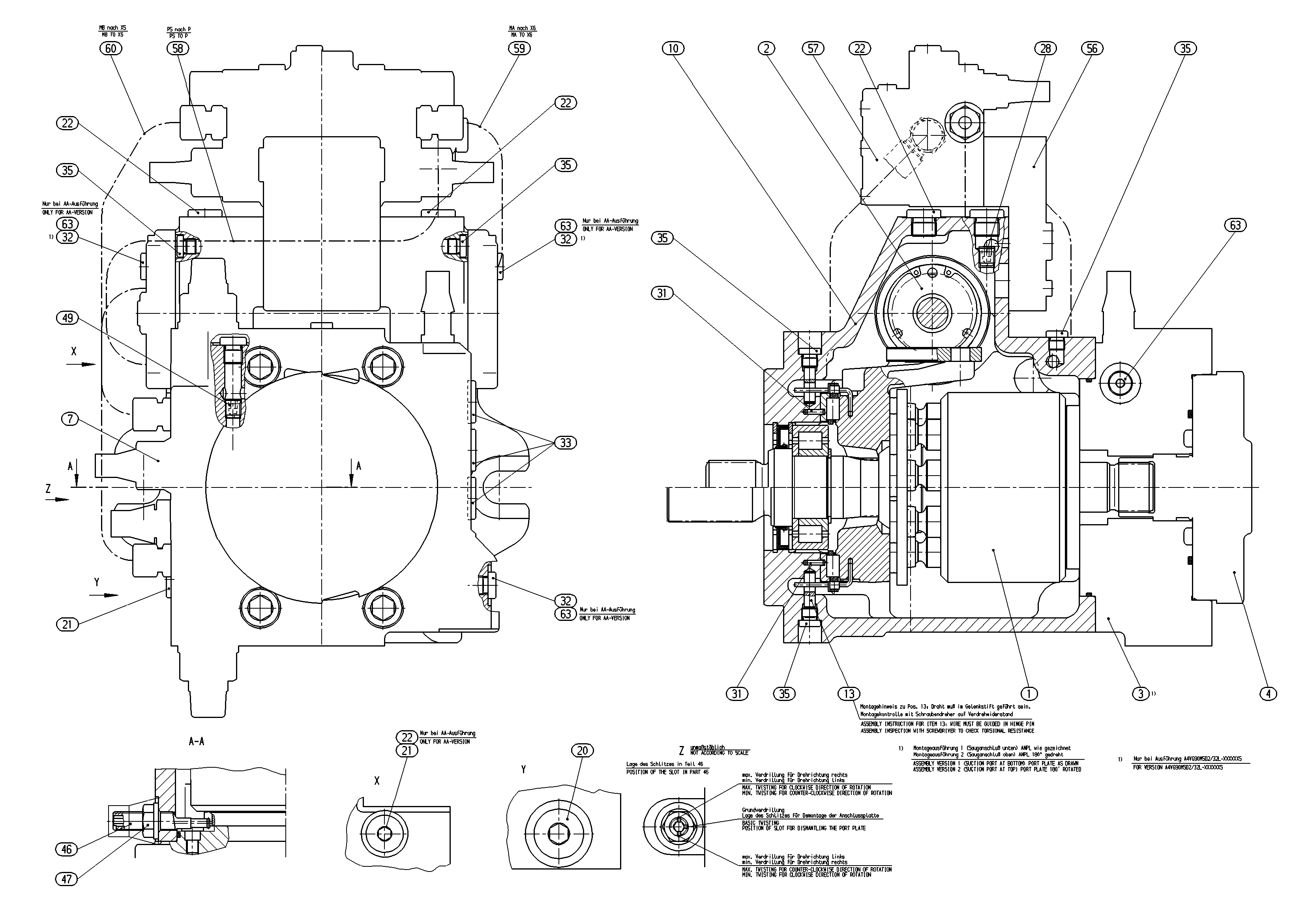

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195489 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902016006 | CONTROL Assembly parts list →L | 1 | ||
| R909608824 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606803 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902066044 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902010618 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909154480 | SCREW PLUGD | 2 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 4 | ||
| R909426700 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 5 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R909433096 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909429872 | TORQUE-PRESSURE CONTROL VALVE Assembly parts list →L | 1 | ||
| R902008169 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R902008223 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909613148 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909154478 | SCREW PLUGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | DA control valve, fixed setting | 2 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 52 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 82-2 (A) 5/8 in 9T 16/32DP | 01 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
