Unit · AXIAL-PISTON PUMP
A11VO75DRG/10+A2FO23/61R902094490
Axial piston pump Bosch Rexroth series A11VO, type code A11VO75DRG/10+A2FO23/61, material number R902094490. Nominal size: NG 75. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: pressure controller hydraulic remote controlled (DRG).
- Number
- R902094490
- Type code
- A11VO75DRG/10+A2FO23/61
- Group
- A11VO 75
- Edition
- 06/2020

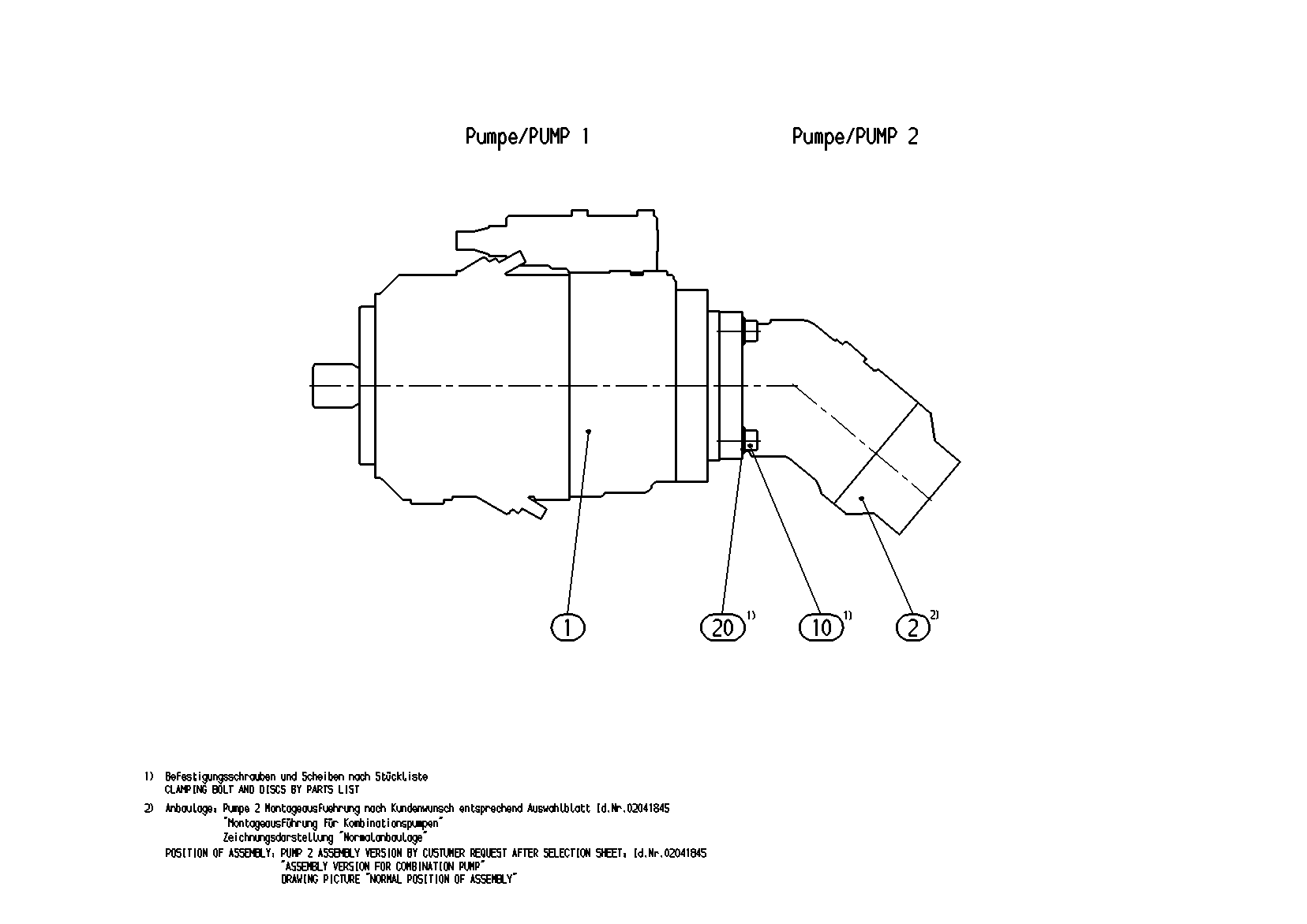

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902094489 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909427223 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 75 | 75 |
| Control device | Pressure controller hydraulic remote controlled | DRG |
| Index | Size 40 … 130 | 0 |
