Unit · AXIAL-PISTON PUMP
A4VG250HD132+A10VO71DFR31+A10VO71DFRR902097077
Axial piston pump Bosch Rexroth series A4VG, type code A4VG250HD132+A10VO71DFR31+A10VO71DFR, material number R902097077. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1).
- Number
- R902097077
- Type code
- A4VG250HD132+A10VO71DFR31+A10VO71DFR
- Group
- A10VO 71
- Edition
- 06/2020

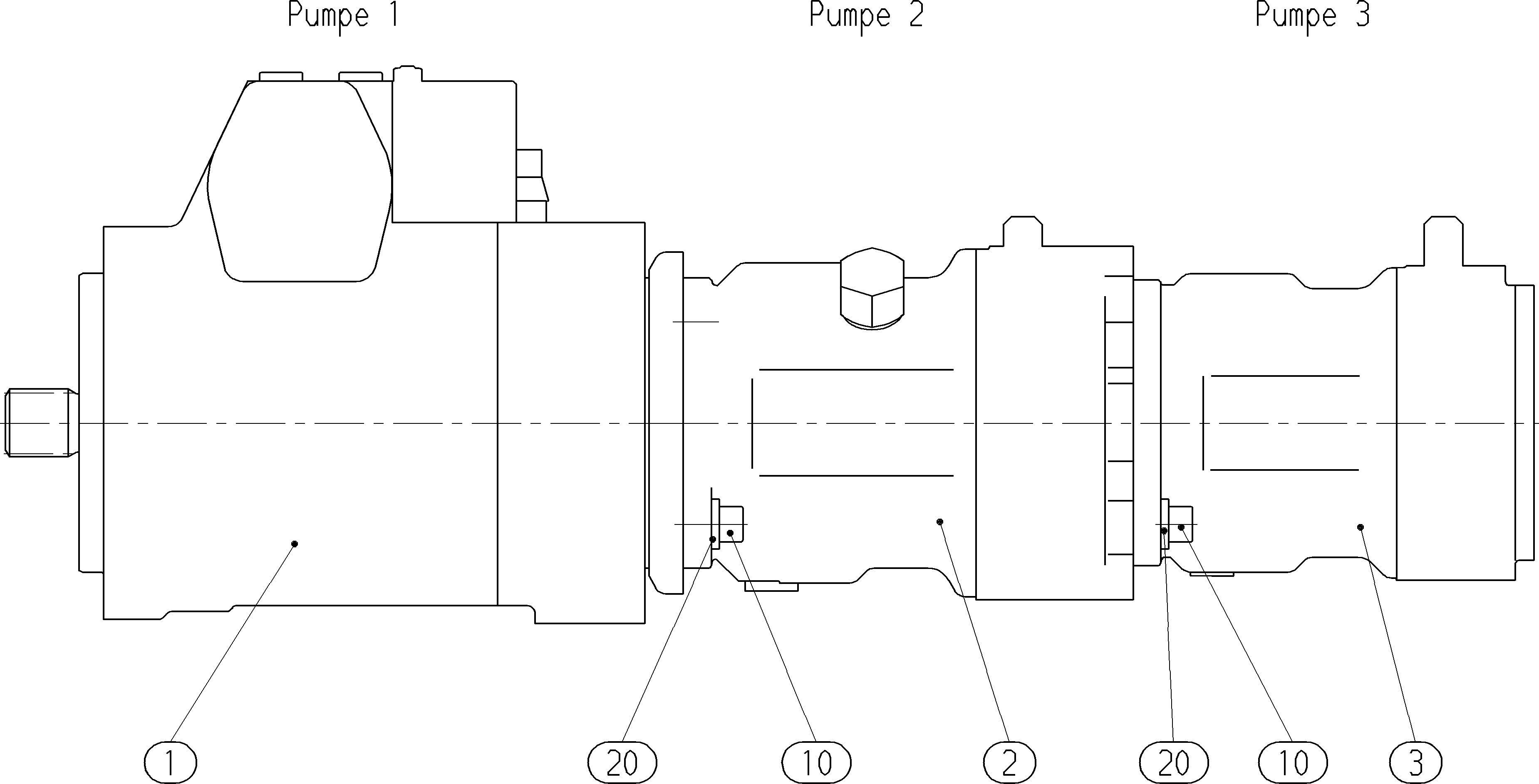

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902060813 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902444324 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902444325 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902601518 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010117 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
