Unit · AXIAL-PISTON PUMP
A11VLO190DRS/11R-NZG12K17-SR902097179
Axial piston pump Bosch Rexroth series A11VO, type code A11VLO190DRS/11R-NZG12K17-S, material number R902097179. Nominal size: NG 190. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: pressure controller with load-sensing (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft DIN 5480 for single and combination pump (Z). Mounting flange: SAE J (SAE 3) (G). Working port: SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 (12). Through drive: 152-4 (D) 1 3/4 in 13T 8/16DP D (K17). Standard/special version: special version (S).
- Number
- R902097179
- Type code
- A11VLO190DRS/11R-NZG12K17-S
- Group
- A11VLO 190
- Edition
- 06/2020

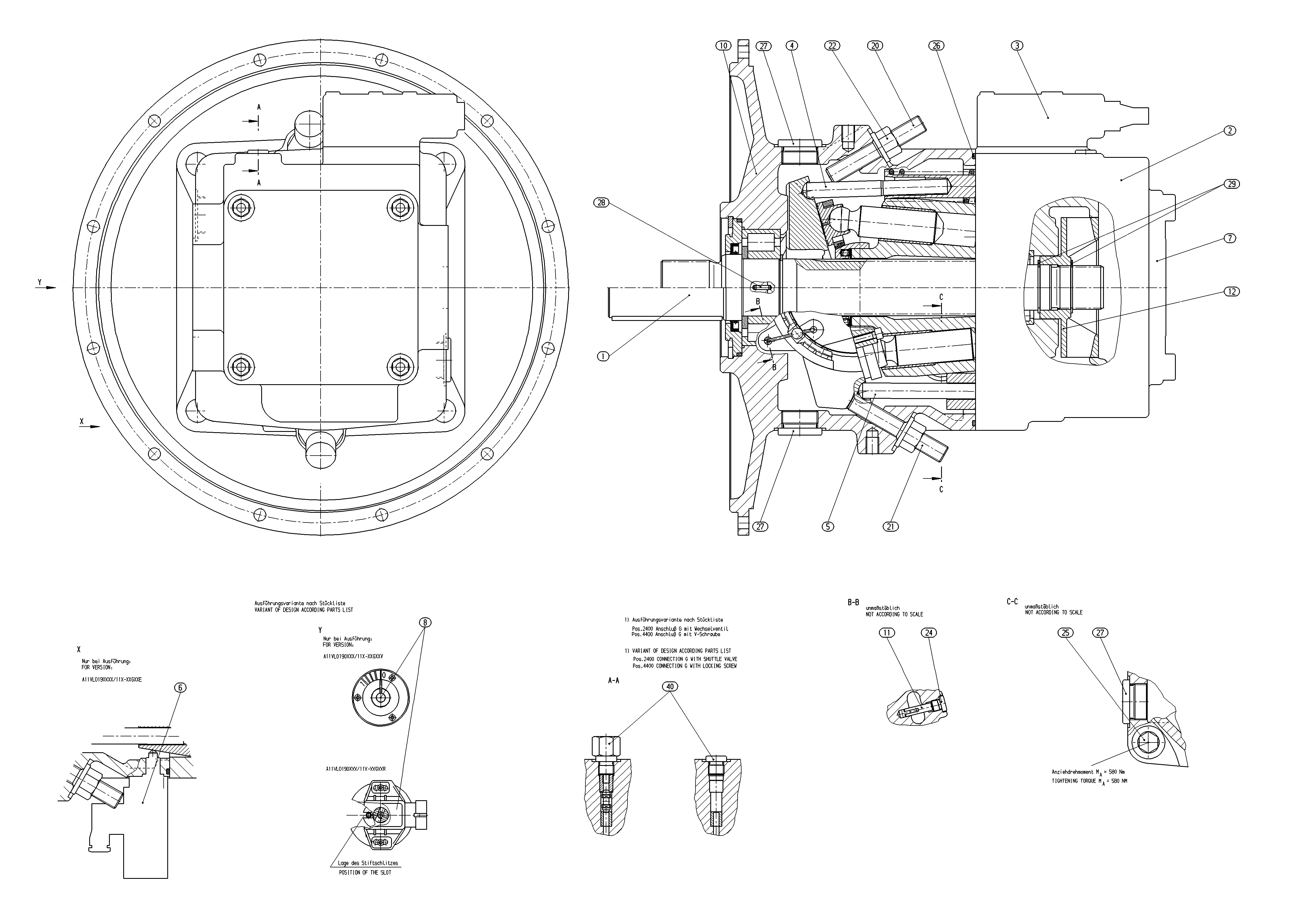

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902008556 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902106710 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R902076757 | REGULATOR Assembly parts list →L | 1 | ||
| R902013631 | CONTROL Assembly parts list →L | 1 | ||
| R902007456 | CONTROL Assembly parts list →L | 1 | ||
| R909613610 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902105233 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449866 | IMPELLER, RIGHT-HAND ROTATION | 1 | ||
| R909921095 | SETSCREW | 2 | ||
| R909153328 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909084762 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601050 | O-RING | 1 | ||
| R909153861 | SCREW PLUGD | 3 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909083362 | RETAINING RING | 2 | ||
| 98 | R902095611 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 190 | 190 |
| Control device | Pressure controller with load-sensing | DRS |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft DIN 5480 for single and combination pump | Z |
| Mounting flange | SAE J (SAE 3) | G |
| Working port | SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 | 12 |
| Through drive | 152-4 (D) 1 3/4 in 13T 8/16DP D | K17 |
| Standard/special version | Special version | S |
