Unit · AXIAL-PISTON PUMP
AA4VG56EP3D1/32R-NTCXXXXX5EC-SR902100942
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG56EP3D1/32R-NTCXXXXX5EC-S, material number R902100942. Nominal size: NG 56. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control U = 12 V electric with proportional solenoid (EP3). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a for combination pump – 1st pump (T). Mounting flange: SAE J744 2-hole (C). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 3600 to 6100 psi direct operated, fixed setting (250 to 420 bar) with bypass (5). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E). Standard/special version: special version (-S).
- Number
- R902100942
- Type code
- AA4VG56EP3D1/32R-NTCXXXXX5EC-S
- Group
- A4VG 56
- Edition
- 12/2019

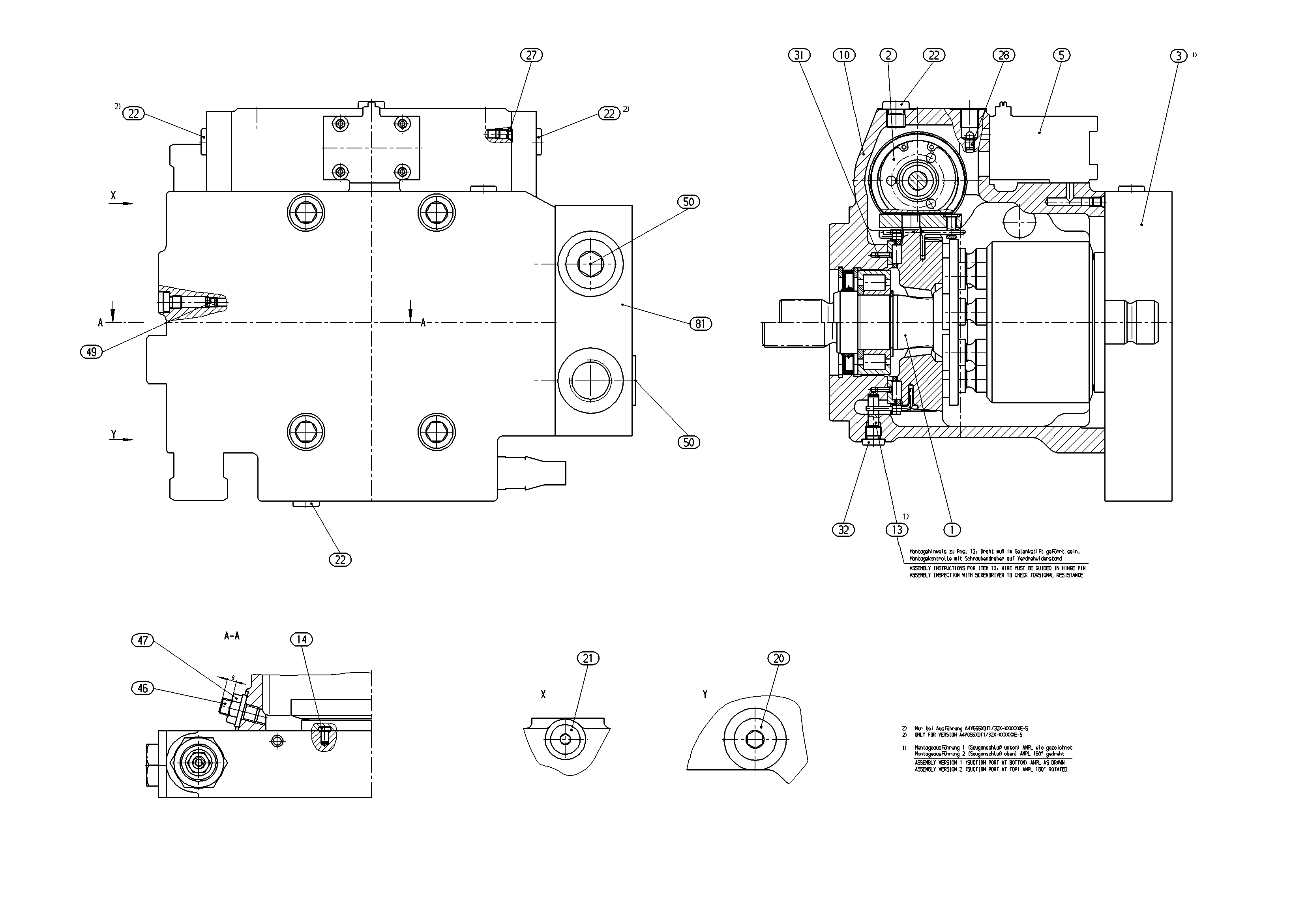

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199697 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902007568 | CONTROL Assembly parts list →L | 1 | ||
| R902087514 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902107110 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902029575 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUG | 2 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909154981 | SETSCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156495 | NOZZLE | 1 | ||
| R909154480 | SCREW PLUG | 2 | ||
| R902083035 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 98 | R902095502 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 56 | 56 |
| Control device | Proportional control U = 12 V electric with proportional solenoid | EP3 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a for combination pump – 1st pump | T |
| Mounting flange | SAE J744 2-hole | C |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 3600 to 6100 psi direct operated, fixed setting (250 to 420 bar) with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Standard/special version | Special version | -S |
