Unit · AXIAL-PISTON PUMP
A10VG28DGDM1/10L-NSC10F006SR902102038
Axial piston pump Bosch Rexroth series A10VG, type code A10VG28DGDM1/10L-NSC10F006S, material number R902102038. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 300 bar, maximum pressure 350 bar (A10V). Operating mode: pump, closed circuit (G). Control device: hydraulic control direct operated (DG). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve for NG28... 63: without DA control valve (1). Direction of rotation: viewed on drive shaft (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for single pump (S). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, same side left suction port S bottom (10). Boost pump: integrated boost pump with and without through (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, fixed setting 100 … 250 bar with bypass (6).
- Number
- R902102038
- Type code
- A10VG28DGDM1/10L-NSC10F006S
- Group
- A10VG 28
- Edition
- 06/2020

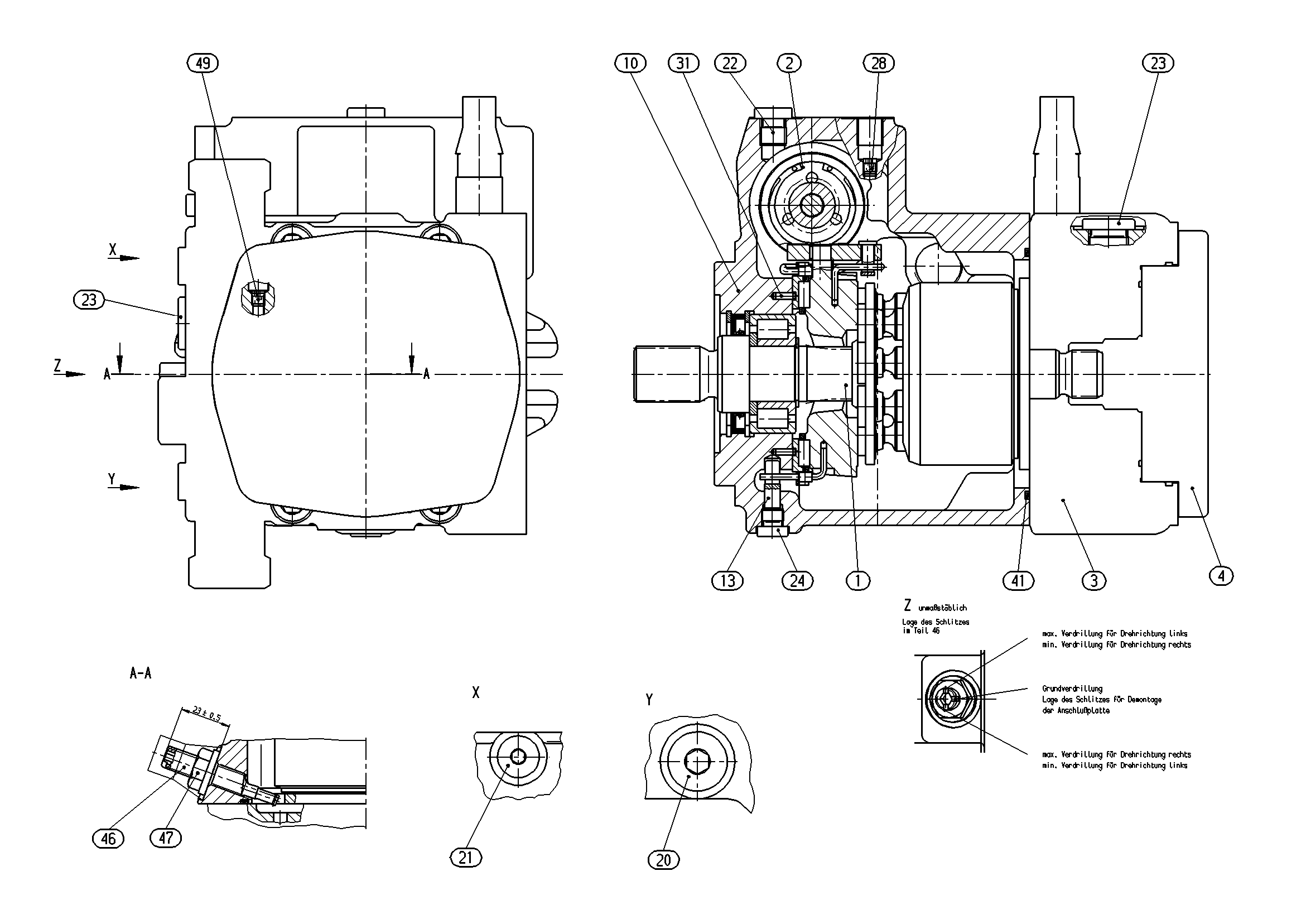

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902102119 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902020384 | CONTROL Assembly parts list →L | 1 | ||
| R902010681 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909602826 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902015670 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUG | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| 27 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909086547 | O-RINGD | 1 | ||
| R902039583 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| 98 | R902095561 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 300 bar, maximum pressure 350 bar | A10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Control device | Hydraulic control direct operated | DG |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve for NG28... 63 | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for single pump | S |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, same side left suction port S bottom | 10 |
| Boost pump | Integrated boost pump with and without through | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, fixed setting 100 … 250 bar with bypass | 6 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
