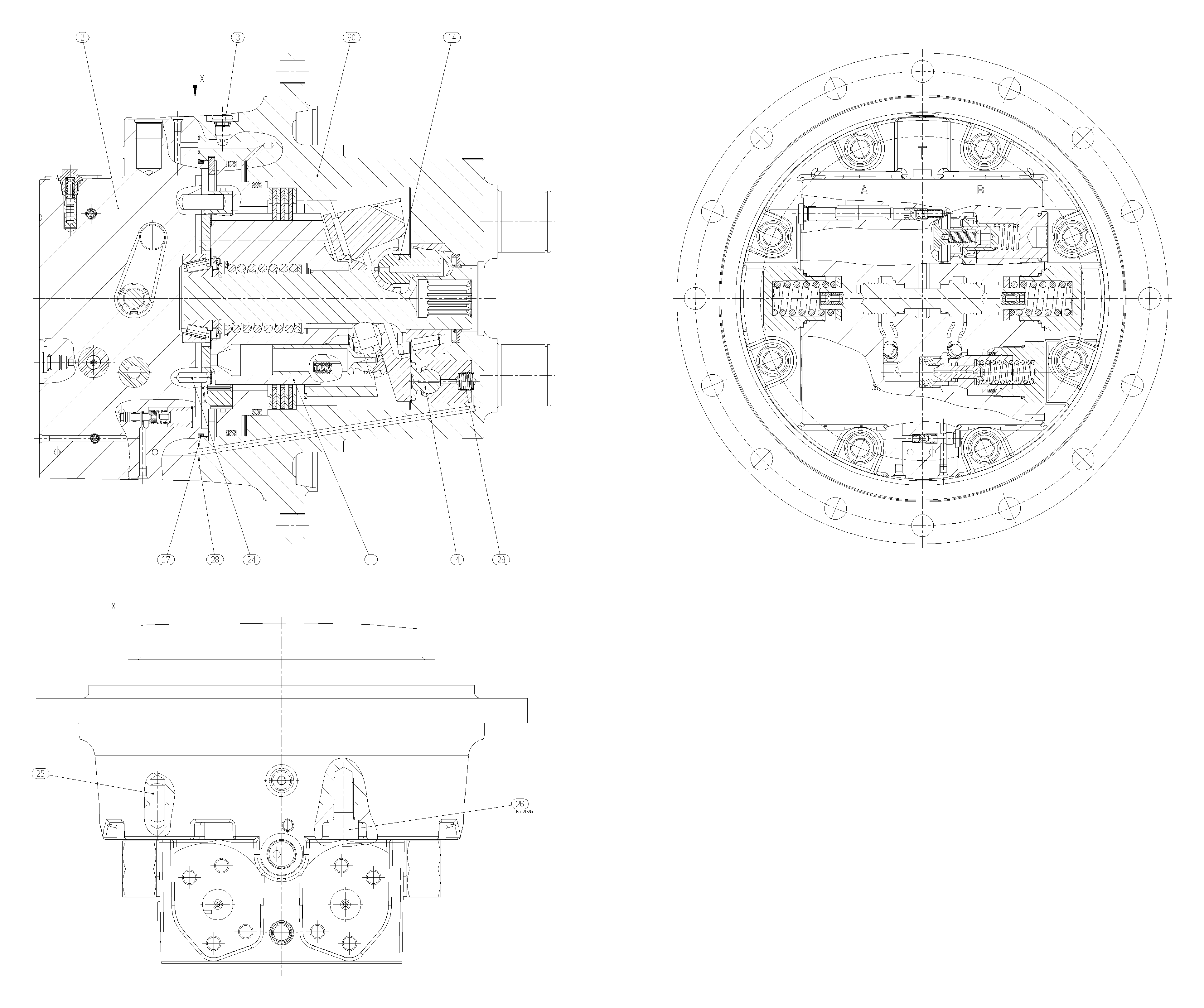

Unit · AXIAL-PISTON MOTOR
A10VT140HZ/10W750-NN31B010R902103149
Axial piston motor Bosch Rexroth series A10VT, type code A10VT140HZ/10W750-NN31B010, material number R902103149.
- Number
- R902103149
- Type code
- A10VT140HZ/10W750-NN31B010
- Group
- A10VT 140
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902087920 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902103160 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902078459 | THRUST RING Assembly parts list →L | 1 | ||
| R902062391 | ADJUSTING PISTON Assembly parts list →L | 1 | ||
| 5 | R902114362 | CRADLE STOP Assembly parts list →L | 1 | |
| R902035959 | SWIVEL BALL | 2 | ||
| R916448478 | STRAIGHT PIND | 1 | ||
| R913016952 | STRAIGHT PIN | 1 | ||
| R909083128 | SOCKET HEAD CAP SCREW | 8 | ||
| R902602118 | O-RING | 1 | ||
| R902602103 | R-RING | 2 | ||
| R902007795 | COMPRESSION SPRING | 1 | ||
| 30 | R909831743 | SCREW PLUG | 1 | |
| R902602521 | SPINDLE | 1 |
