Unit · AXIAL-PISTON PUMP
AA11VLO260EP2/11R-NXDXXK02T-SR902103666
Axial piston pump Bosch Rexroth series A11VO, type code AA11VLO260EP2/11R-NXDXXK02T-S, material number R902103666. Nominal size: NG 260. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: electrical control with proportional solenoid positive control U = 24 V (EP2). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Mounting flange: SAE J744 ‒ 4-hole (D). Through drive: 101-2 (B) 7/8 in 13T 16/32DP B (K02). Standard/special version: special version (S).
- Number
- R902103666
- Type code
- AA11VLO260EP2/11R-NXDXXK02T-S
- Group
- A11VLO 260
- Edition
- 06/2020

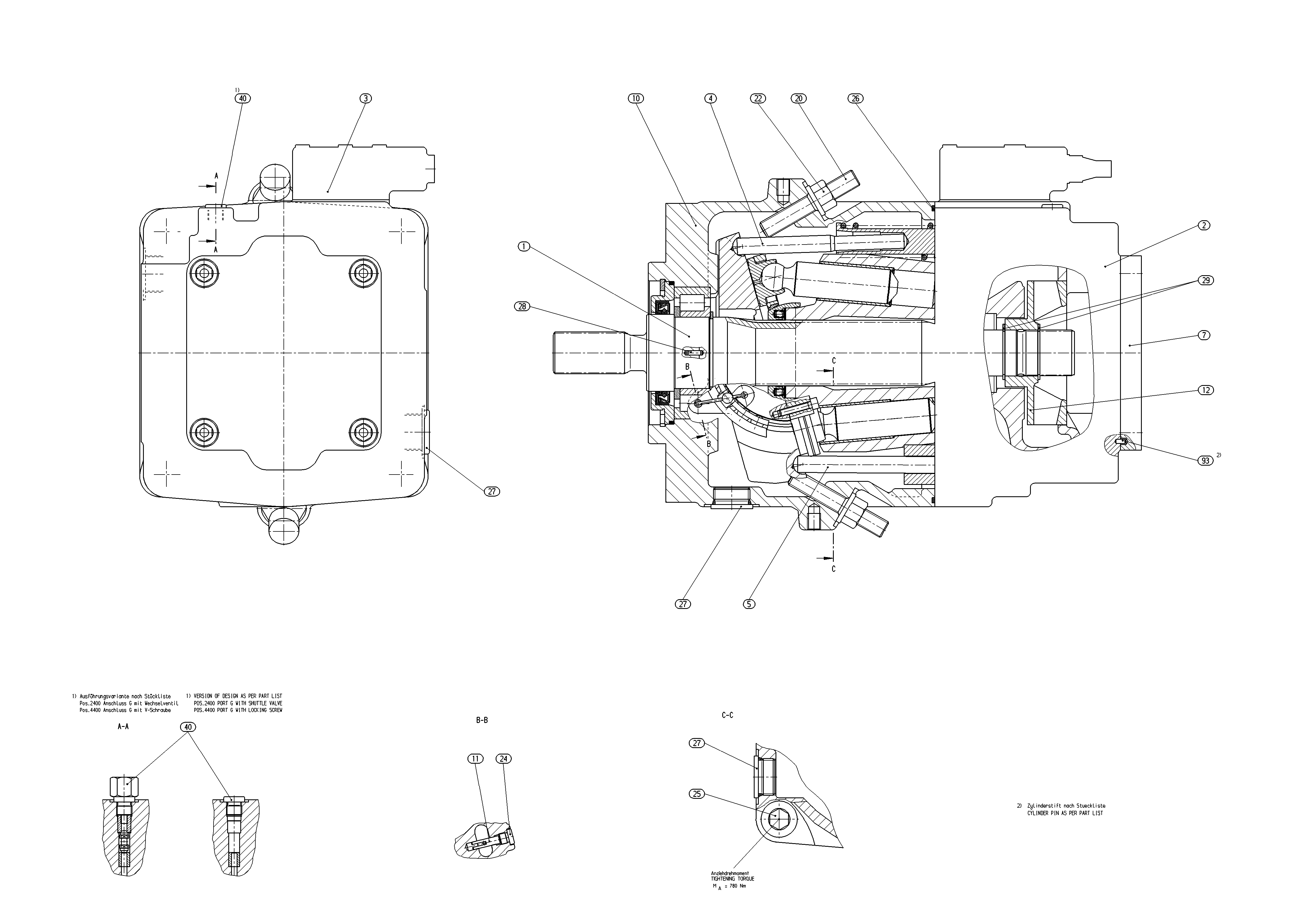

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902097498 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902232402 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R902104088 | REGULATOR Assembly parts list →L | 1 | ||
| R909600261 | CONTROL Assembly parts list →L | 1 | ||
| R909600300 | CONTROL Assembly parts list →L | 1 | ||
| R902033823 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902168662 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449416 | IMPELLER, RIGHT-HAND ROTATION | 1 | ||
| R909921095 | SETSCREW | 2 | ||
| R909153328 | SEALING NUT | 2 | ||
| R909153364 | SCREW PLUG | 4 | ||
| R909831387 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831133 | O-RING | 1 | ||
| R909153378 | SCREW PLUG | 1 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909151259 | RETAINING RING | 2 | ||
| R902220058 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909084140 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 260 | 260 |
| Control device | Electrical control with proportional solenoid positive control U = 24 V | EP2 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP B | K02 |
| Standard/special version | Special version | S |
