Unit · AXIAL-PISTON PUMP
AA11VO75DRS/10R-NXX62K07-SR902108004
Axial piston pump Bosch Rexroth series A11VO, type code AA11VO75DRS/10R-NXX62K07-S, material number R902108004. Nominal size: NG 75. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: pressure controller with load-sensing (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Working port: SAE pressure and suction port at side, opposite, UNC fastening thread. Port thread, UNF with profile sealing ring based on ISO 11926 (62). Through drive: 127-2/-2+4 (C) 1 1/4 in 14T 12/24DP C (K07). Standard/special version: special version (S).
- Number
- R902108004
- Type code
- AA11VO75DRS/10R-NXX62K07-S
- Group
- A11VO 75
- Edition
- 06/2020

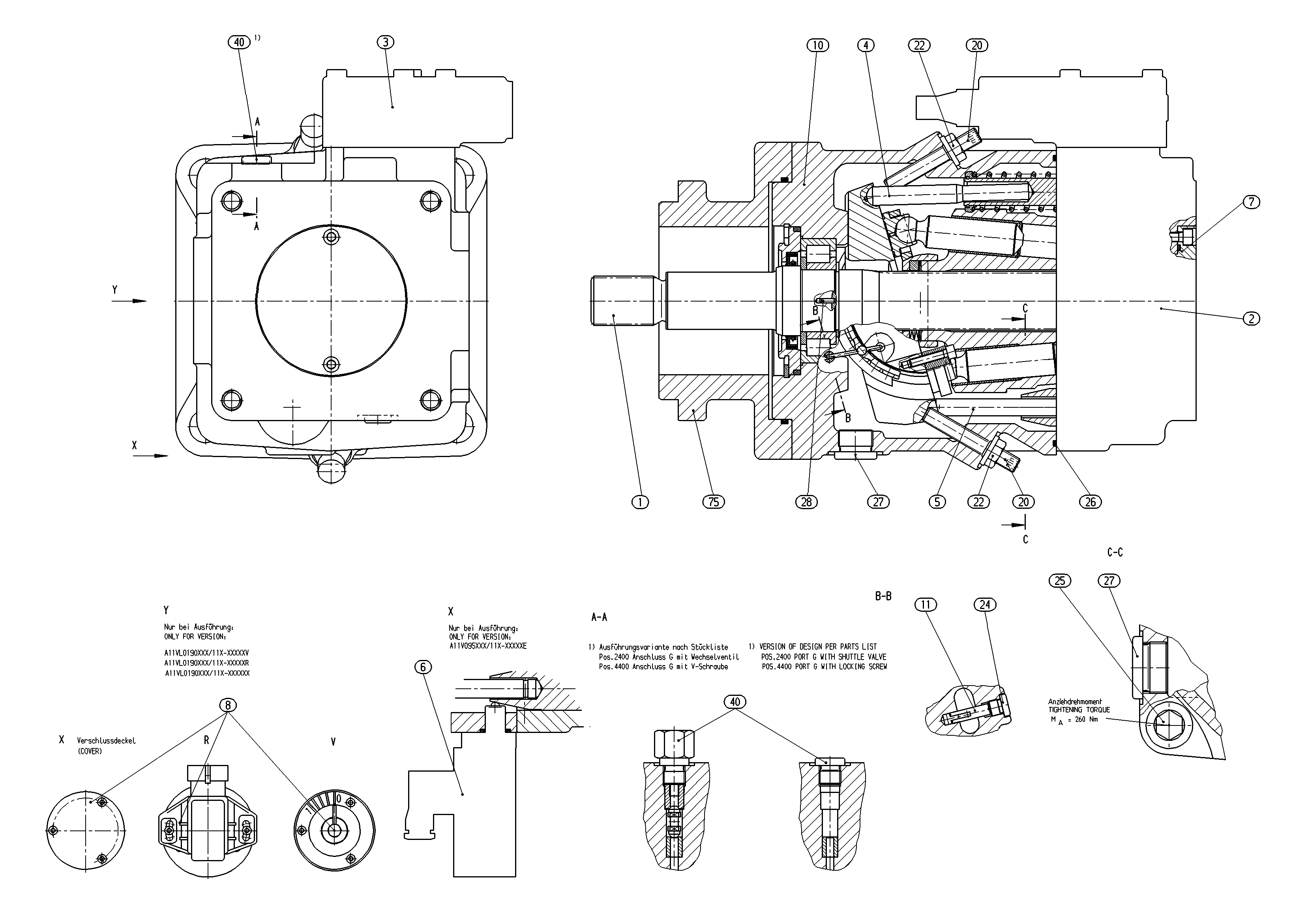

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902097779 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902102076 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R909601060 | REGULATOR Assembly parts list →L | 1 | ||
| R909446456 | CONTROL Assembly parts list →L | 1 | ||
| R909441528 | CONTROL Assembly parts list →L | 1 | ||
| R909601565 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909921516 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449078 | SETSCREW | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| R913057293 | O-RINGD | 1 | ||
| R909153339 | SCREW PLUGD | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153371 | SCREW PLUG | 1 | ||
| R909442910 | BELL HOUSING Assembly parts list →L | 1 | ||
| 98 | R902095605 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 75 | 75 |
| Control device | Pressure controller with load-sensing | DRS |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Working port | SAE pressure and suction port at side, opposite, UNC fastening thread. Port thread, UNF with profile sealing ring based on ISO 11926 | 62 |
| Through drive | 127-2/-2+4 (C) 1 1/4 in 14T 12/24DP C | K07 |
| Standard/special version | Special version | S |
