Unit · AXIAL-PISTON MOTOR
A6VM060EP500P000A/71MWV0M4S720V-0R902110234
Axial piston motor Bosch Rexroth series A6VM, type code A6VM060EP500P000A/71MWV0M4S720V-0, material number R902110234. Nominal size: NG 60. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 12 V (EP5). Pressure control/override: without pressure control/override (00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw short (0-adjustable) (A). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 125-4 (M4).
- Number
- R902110234
- Type code
- A6VM060EP500P000A/71MWV0M4S720V-0
- Group
- A6VM 60
- Edition
- 06/2020

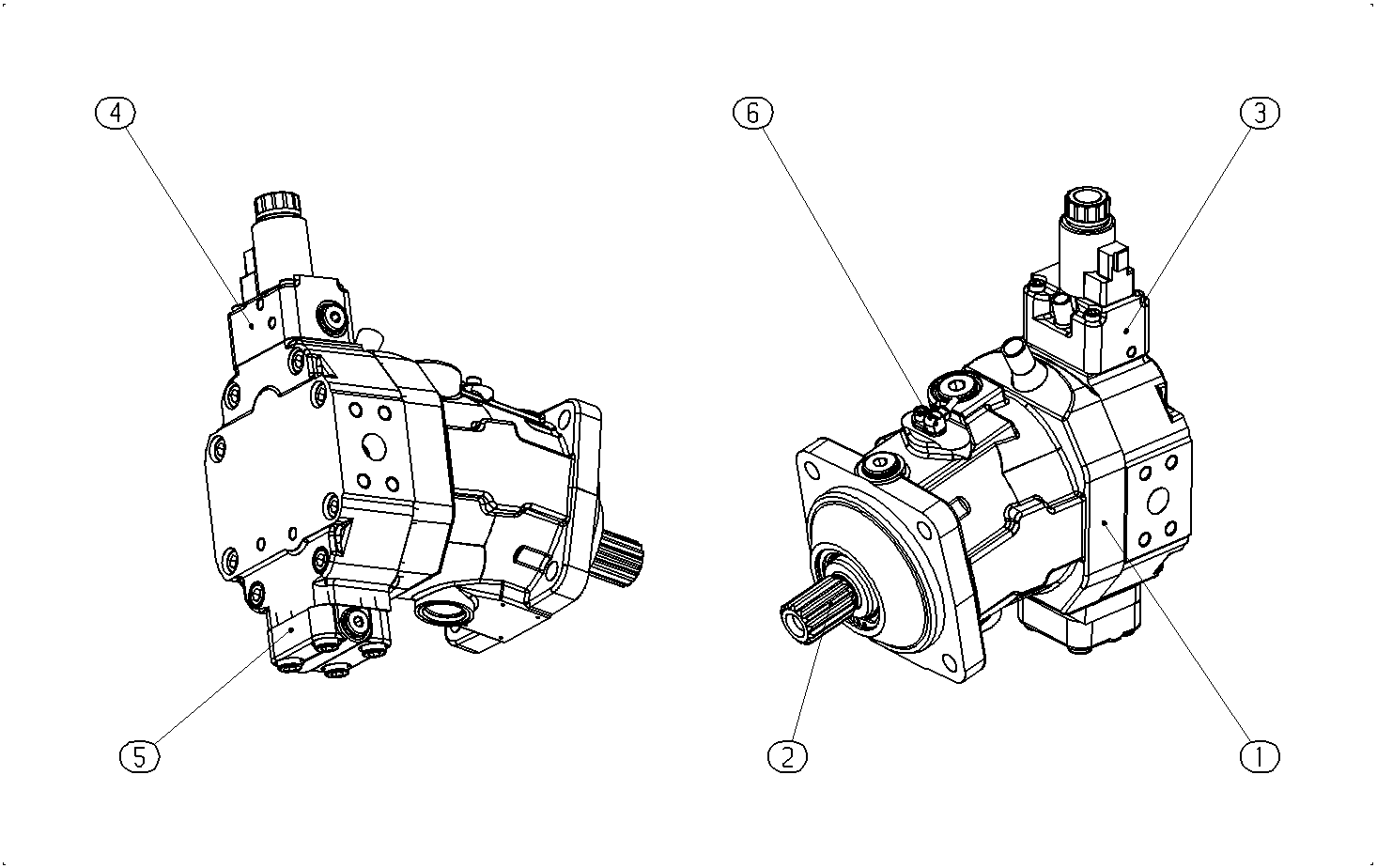

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902124132 | HOUSING Assembly parts list →L | 1 | ||
| R902107904 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902132243 | COVER PLATE Assembly parts list →L | 1 | ||
| R902110229 | CONTROL PART Assembly parts list →L | 1 | ||
| R902130740 | COVER Assembly parts list →L | 1 | ||
| R902107666 | SENSOR Assembly parts list →L | 1 | ||
| 98 | R902095797 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 60 | 060 |
| Control device | Proportional control, electric negative control U = 12 V | EP5 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw short (0-adjustable) | A |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 125-4 | M4 |
| Drive shaft | Splined shaft ANSI 1 1/4 in 14T 12/24DP B92.1a‒1976 | S7 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | Without valve | 0 |
| Standard/special version | Standard version | 0 |
