Unit · AXIAL-PISTON PUMP
A4VG40EP4DT7/32R-NAC02F095SHR902111121
Axial piston pump Bosch Rexroth series A4VG, type code A4VG40EP4DT7/32R-NAC02F095SH, material number R902111121. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4). Pressure cut-off: pressure cut-off (D). Stroking chamber pressure port: stroking chamber pressure port X X (T). DA control valve: DA control valve, fixed setting, ports for pilot control device (7). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft DIN 5480 for combination pump – 1st pump (A). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 127-2 (C) 1 in 15T 16/32DP (09). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 250 … 420 bar direct operated, fixed setting with bypass (5).
- Number
- R902111121
- Type code
- A4VG40EP4DT7/32R-NAC02F095SH
- Group
- A4VG 40
- Edition
- 02/2020

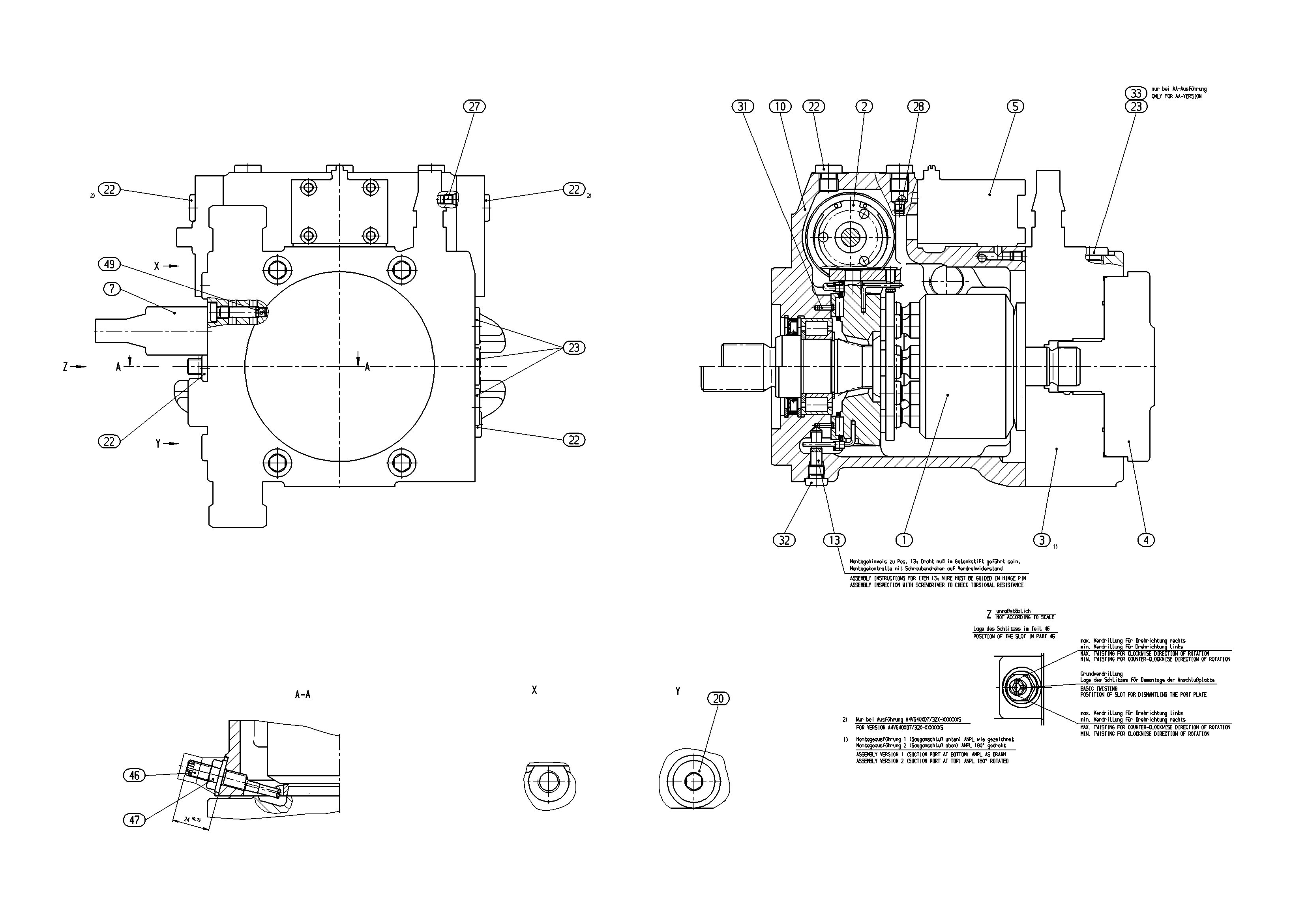

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909607689 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902021476 | CONTROL Assembly parts list →L | 1 | ||
| R909609728 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606686 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902106515 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909416388 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902007239 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 7 | ||
| R909153815 | SCREW PLUGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| 98 | R902002419 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 40 | 40 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
| Pressure cut-off | Pressure cut-off | D |
| Stroking chamber pressure port | Stroking chamber pressure port X X | T |
| DA control valve | DA control valve, fixed setting, ports for pilot control device | 7 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft DIN 5480 for combination pump – 1st pump | A |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 127-2 (C) 1 in 15T 16/32DP | 09 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 250 … 420 bar direct operated, fixed setting with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
