Unit · AXIAL-PISTON PUMP
A4VG56EP4X1/32L-NSC10K025EP-SR902111796
Axial piston pump Bosch Rexroth series A4VG, type code A4VG56EP4X1/32L-NSC10K025EP-S, material number R902111796. Nominal size: NG 56. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP (02). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 250 … 420 bar direct operated, fixed setting with bypass (5). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E). Connector for solenoids: DEUTSCH connector without suppressor diode molded, 2-pin (P).
- Number
- R902111796
- Type code
- A4VG56EP4X1/32L-NSC10K025EP-S
- Group
- A4VG 56
- Edition
- 12/2019

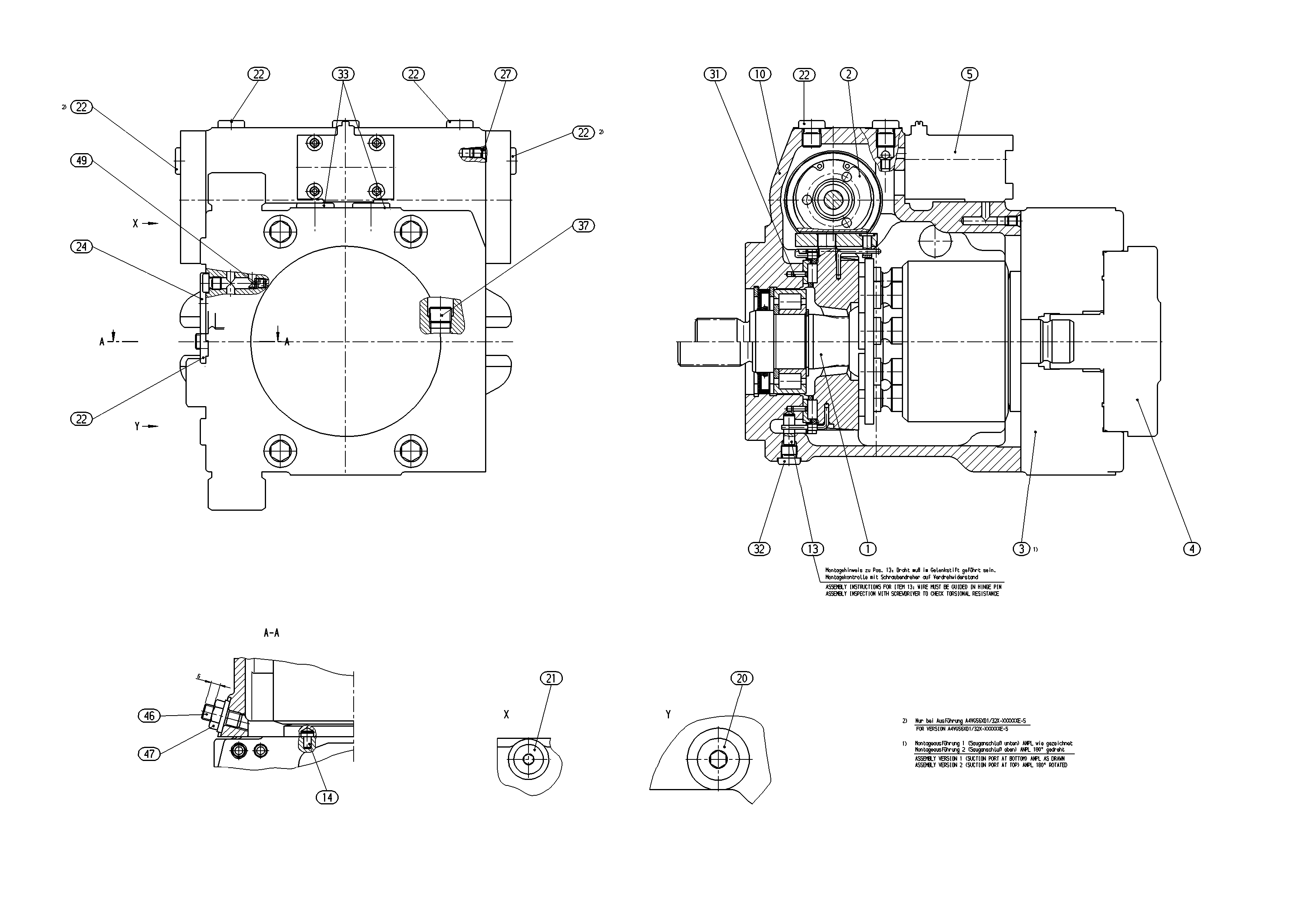

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902084775 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902007568 | CONTROL Assembly parts list →L | 1 | ||
| R902070414 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606672 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902106557 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902029526 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R902035774 | ECCENTRIC BOLT | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909151694 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909154981 | SETSCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 56 | 56 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP | 02 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 250 … 420 bar direct operated, fixed setting with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Connector for solenoids | DEUTSCH connector without suppressor diode molded, 2-pin | P |
| Standard/special version | Special version | -S |
