Unit · AXIAL-PISTON PUMP
A11VO60LRCS+A10VG63EP4D1R902116713
Axial piston pump Bosch Rexroth series A11VO, type code A11VO60LRCS+A10VG63EP4D1, material number R902116713. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: power controller fixed setting, with override cross sensing negative control, with load-sensing (LRCS).
- Number
- R902116713
- Type code
- A11VO60LRCS+A10VG63EP4D1
- Group
- A11VO 60
- Edition
- 06/2020

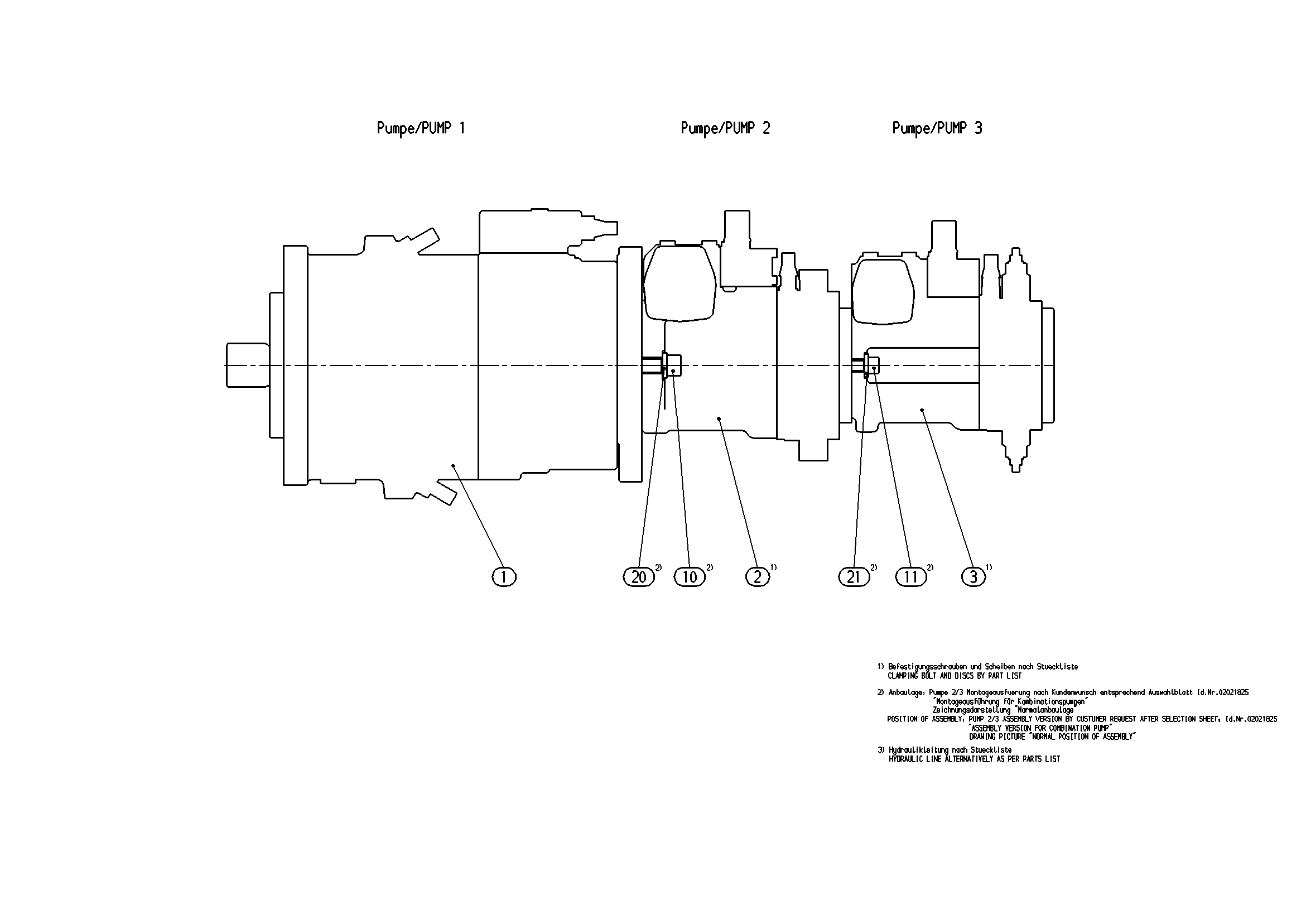

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902079206 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R902116711 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 60 | 60 |
| Control device | Power controller fixed setting, with override cross sensing negative control, with load-sensing | LRCS |
