Unit · AXIAL-PISTON PUMP
A10VG45EP3/10R+A10VSO18DFR/31R+AZPF-11-SR902118258
Axial piston pump Bosch Rexroth series A10VG, type code A10VG45EP3/10R+A10VSO18DFR/31R+AZPF-11-S, material number R902118258. Nominal size: NG 45. Operating mode: pump, closed circuit (G). Control device: proportional control, electric with proportional solenoid with inlet filtration in P and X1/X (EP3). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902118258
- Type code
- A10VG45EP3/10R+A10VSO18DFR/31R+AZPF-11-S
- Group
- A10VSO 18
- Edition
- 06/2020

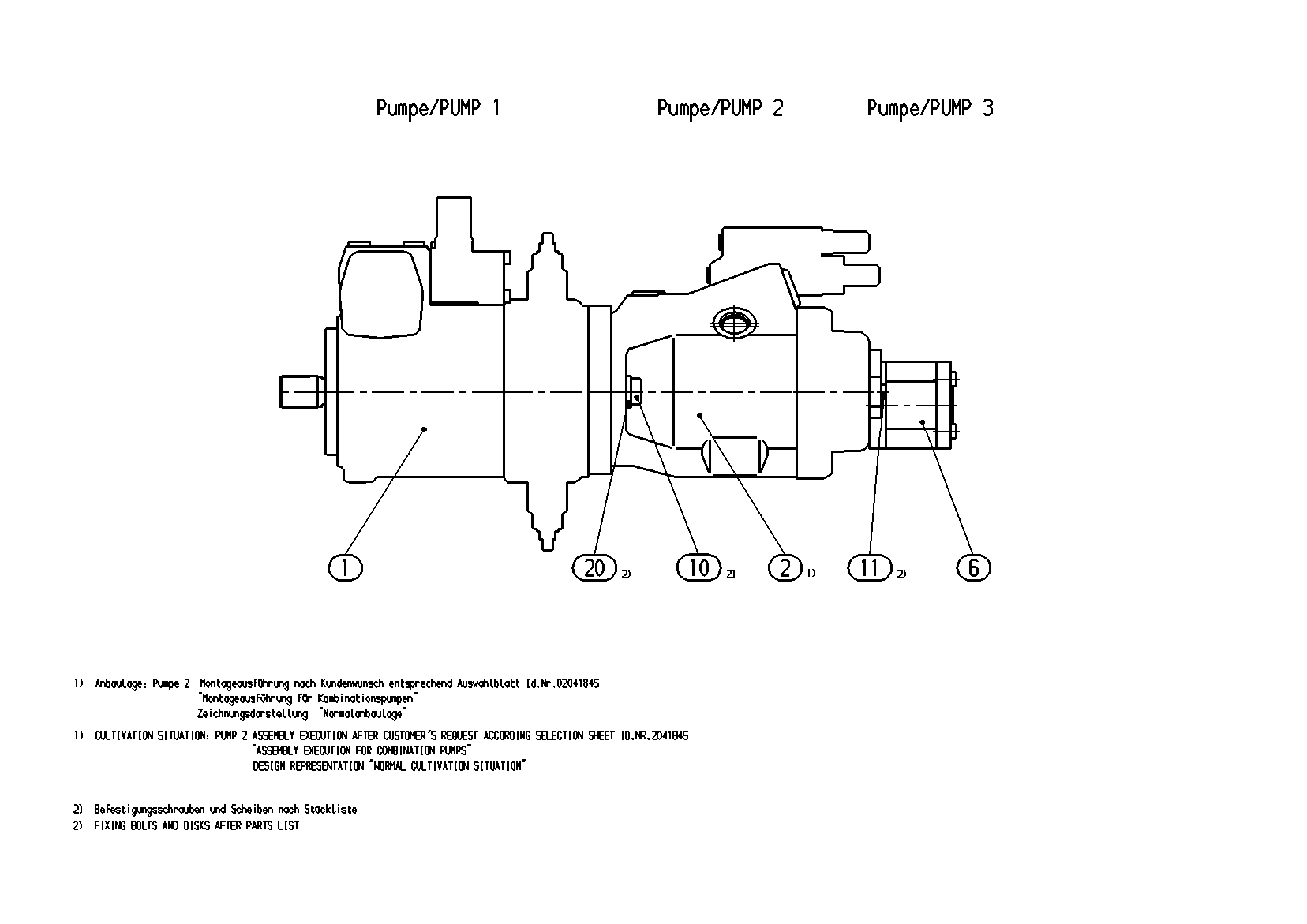

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902118257 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902460132 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510625071 | HYDRAULIC GEAR PUMPL | 1 | ||
| R909083700 | HEXAGON SCREW | 2 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 2 | ||
| R909921512 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 45 |
| Control device | Proportional control, electric with proportional solenoid with inlet filtration in P and X1/X | EP3 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
