Unit · AXIAL-PISTON PUMP
AA11VLO260DR/11L-NSDXXK07-SR902122094
Axial piston pump Bosch Rexroth series A11VO, type code AA11VLO260DR/11L-NSDXXK07-S, material number R902122094. Nominal size: NG 260. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: pressure controller (DR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 4-hole (D). Through drive: 127-2/-2+4 (C) 1 1/4 in 14T 12/24DP C (K07). Standard/special version: special version (S).
- Number
- R902122094
- Type code
- AA11VLO260DR/11L-NSDXXK07-S
- Group
- A11VLO 260
- Edition
- 06/2020

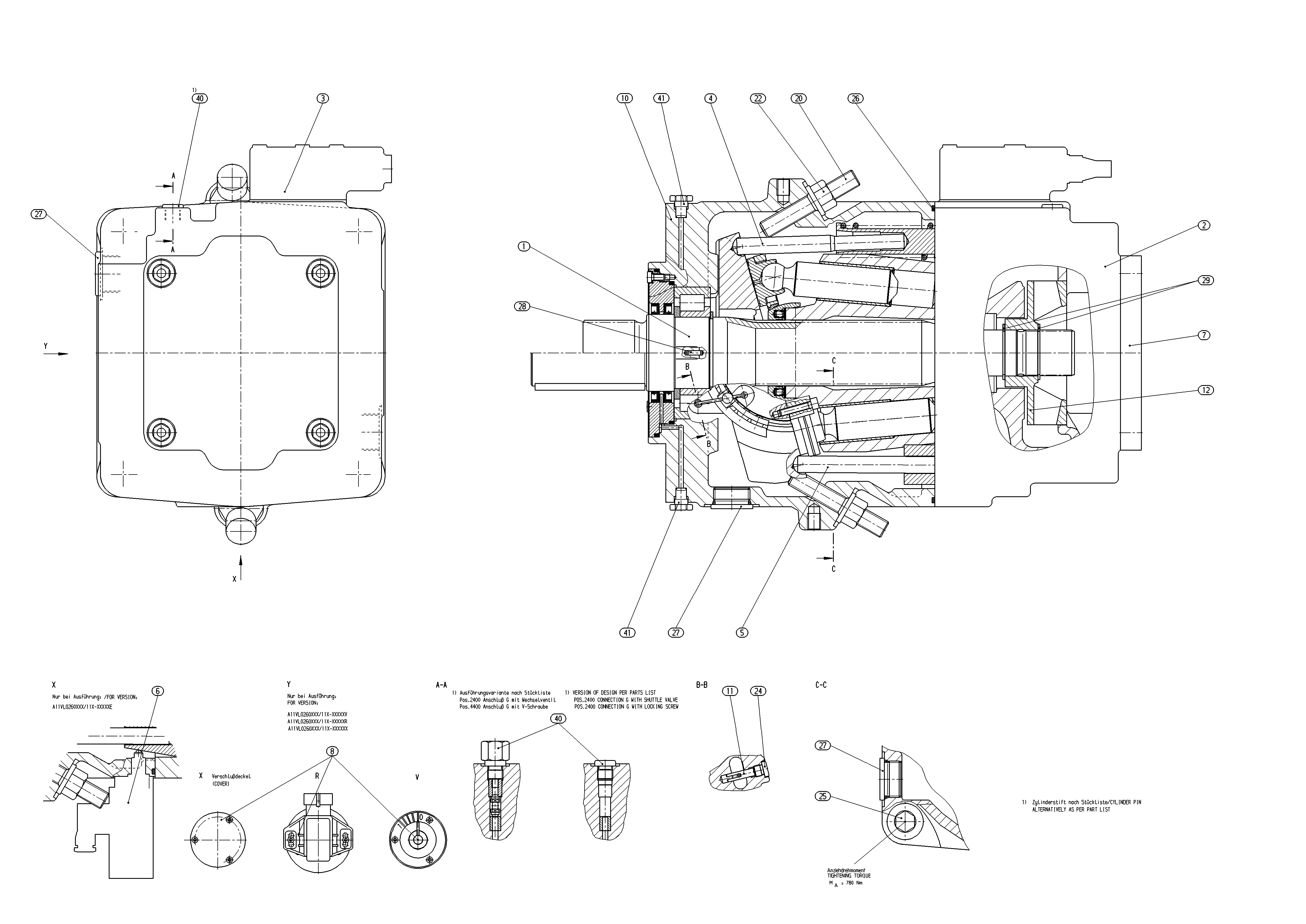

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025455 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902037373 | CONNECTION PLATE, LL Assembly parts list →L | 1 | ||
| R909438066 | REGULATOR Assembly parts list →L | 1 | ||
| R902007015 | CONTROL Assembly parts list →L | 1 | ||
| R909600262 | CONTROL Assembly parts list →L | 1 | ||
| R902040820 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902094198 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449670 | IMPELLER, LEFT-HAND ROTATATION | 1 | ||
| R909921095 | SETSCREW | 2 | ||
| R909153328 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909831387 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831133 | O-RINGD | 1 | ||
| R909153378 | SCREW PLUGD | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909151259 | RETAINING RING | 2 | ||
| R909153371 | SCREW PLUG | 1 | ||
| R902600612 | BLEEDER VALVE | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 260 | 260 |
| Control device | Pressure controller | DR |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Through drive | 127-2/-2+4 (C) 1 1/4 in 14T 12/24DP C | K07 |
| Standard/special version | Special version | S |
