Unit · AXIAL-PISTON PUMP
AA4VG125EP3D1/32R-NSFXXK021EC-SR902125058

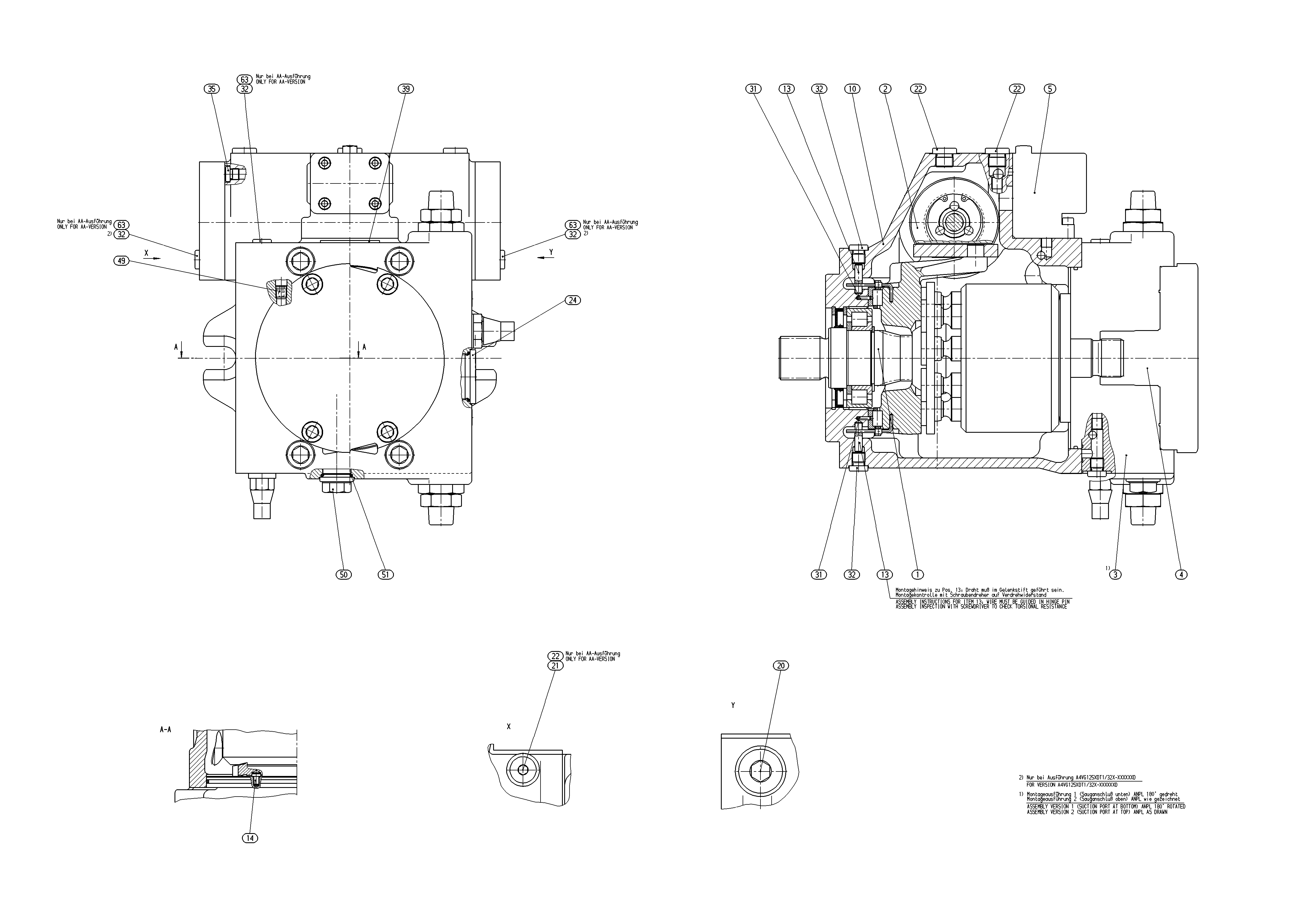

Axial piston pump Bosch Rexroth series A4VG, type code AA4VG125EP3D1/32R-NSFXXK021EC-S, material number R902125058. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control U = 12 V electric with proportional solenoid (EP3). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2+4-hole (F). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP (02). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) (1). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E). Standard/special version: special version (-S).
- Number
- R902125058
- Type code
- AA4VG125EP3D1/32R-NSFXXK021EC-S
- Group
- A4VG 125
- Edition
- 03/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902057998 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902010595 | CONTROL Assembly parts list →L | 1 | ||
| R902046713 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902083620 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902113932 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902103597 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R902035774 | ECCENTRIC BOLT | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 4 | ||
| R909153862 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909157392 | SCREW PLUG | 1 | ||
| R909426706 | NOZZLE | 1 | ||
| R902087863 | THREADED PART | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| 98 | R902095530 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Control device | Proportional control U = 12 V electric with proportional solenoid | EP3 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2+4-hole | F |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 101-2 (B) 7/8 in 13T 16/32DP | 02 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 1450 to 6100 psi with bypass (100 to 420 bar) | 1 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Standard/special version | Special version | -S |
