Unit · AXIAL-PISTON PUMP
A4VTG90HW/32R-NUD10F021S-SR902127225
Axial piston pump Bosch Rexroth series A4VTG, type code A4VTG90HW/32R-NUD10F021S-S, material number R902127225.
- Number
- R902127225
- Type code
- A4VTG90HW/32R-NUD10F021S-S
- Group
- A4VTG 90
- Edition
- 06/2020

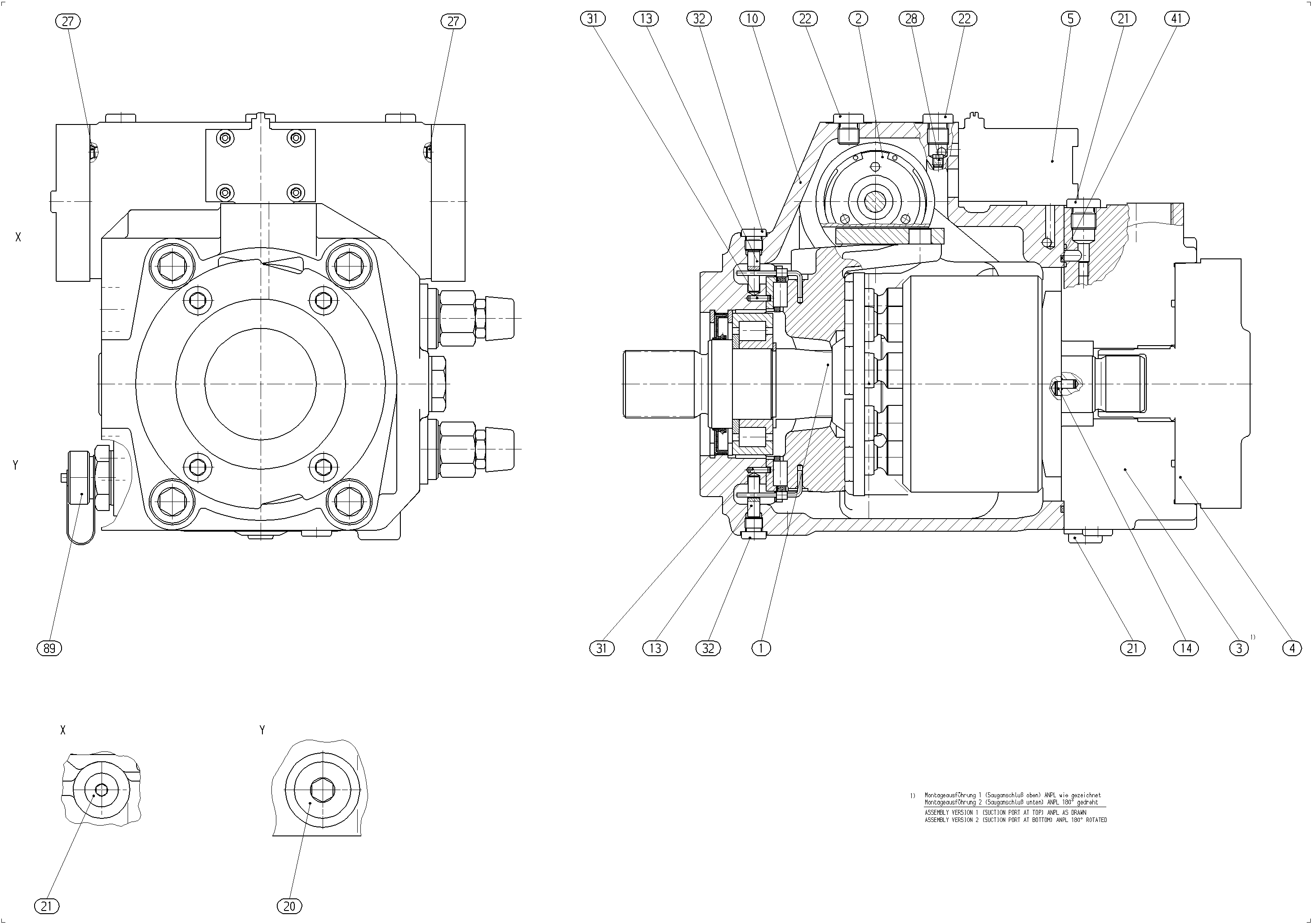

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902102155 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902019518 | CONTROL Assembly parts list →L | 1 | ||
| R909613515 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902022568 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902031253 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902020375 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R913010392 | DRAIN VALVE | 1 |
