Unit · AXIAL-PISTON PUMP
A4VG110DA1DP005/40+A10VO85DFR/53R902130413
Axial piston pump Bosch Rexroth series A4VG, type code A4VG110DA1DP005/40+A10VO85DFR/53, material number R902130413. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 12 V (DA1). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). DA control valve (only for NG110 and 125): DA control valve, fixed setting and brake inch valve based on mineral oil mounted, control with brake fluid (5).
- Number
- R902130413
- Type code
- A4VG110DA1DP005/40+A10VO85DFR/53
- Group
- A10VO 85
- Edition
- 01/2020

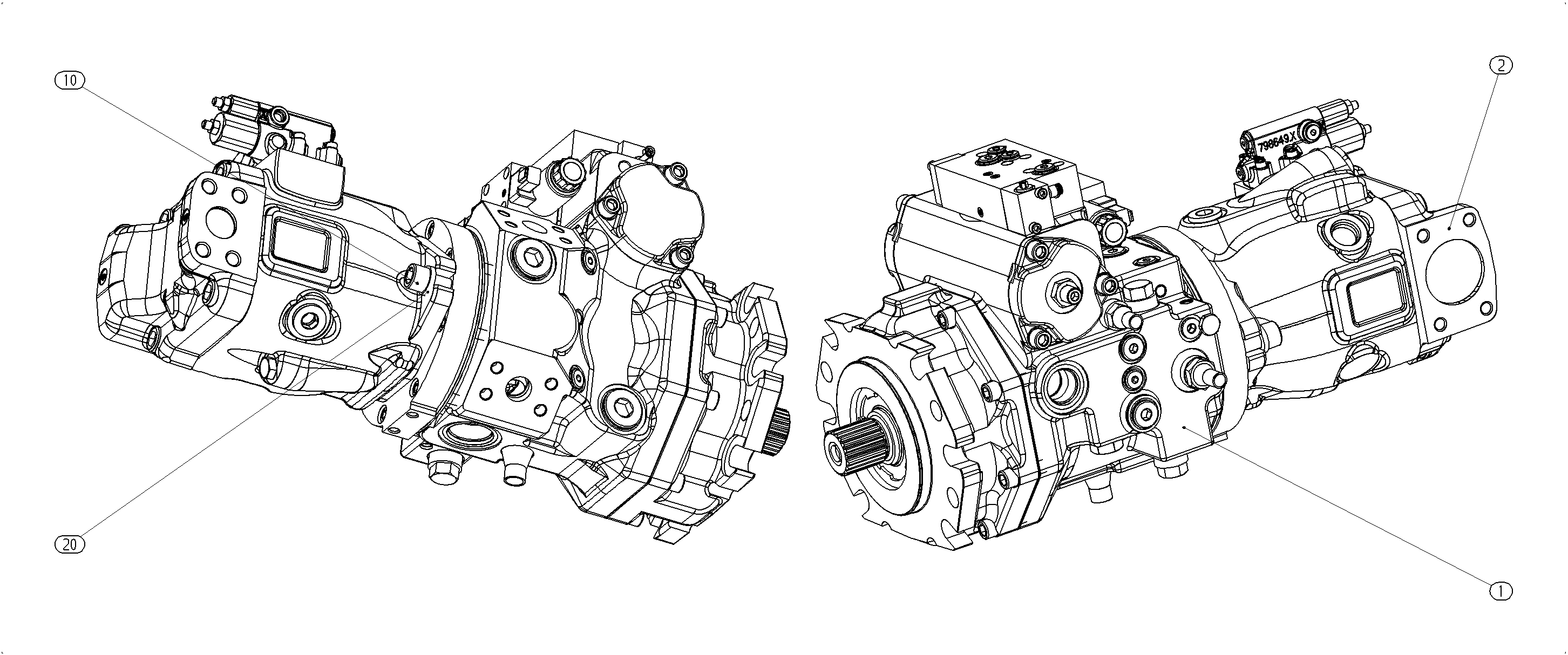

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902130407 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902468050 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Control device | Automatic control, speed related U = 12 V | DA1 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | DA control valve, fixed setting and brake inch valve based on mineral oil mounted, control with brake fluid | 5 |
