Unit · AXIAL-PISTON PUMP
A11VLO190DRS+A4VG180EP4+A4VG125EP4-KR902131591
Axial piston pump Bosch Rexroth series A11VO, type code A11VLO190DRS+A4VG180EP4+A4VG125EP4-K, material number R902131591. Nominal size: NG 190. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: pressure controller with load-sensing (DRS).
- Number
- R902131591
- Type code
- A11VLO190DRS+A4VG180EP4+A4VG125EP4-K
- Group
- A11VLO 190
- Edition
- 05/2020

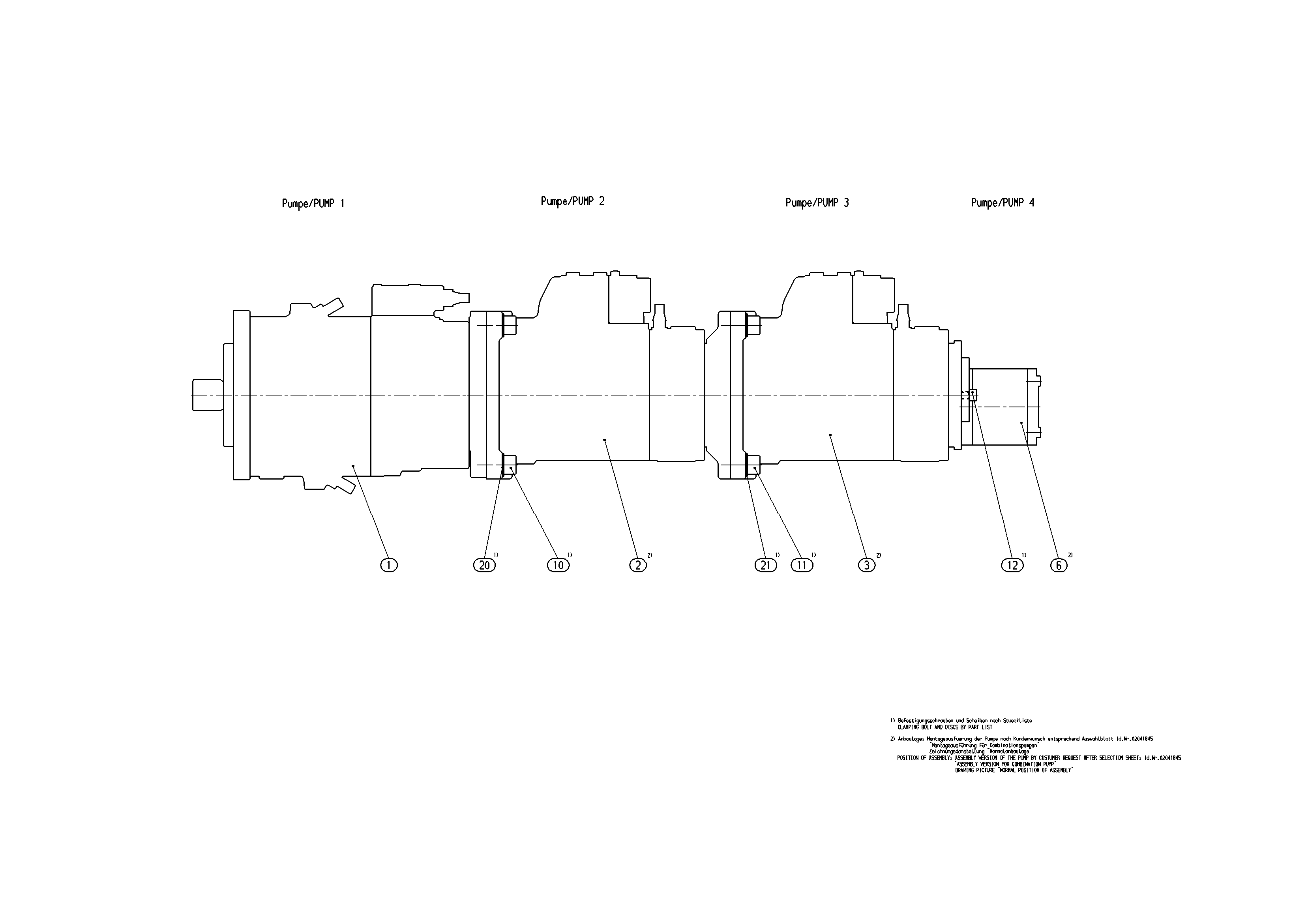

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902131809 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902131460 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902131465 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510825037 | HYDRAULIC GEAR PUMPL | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 2 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 190 | 190 |
| Control device | Pressure controller with load-sensing | DRS |
