Unit · AXIAL-PISTON MOTOR
AA6VM80EP2/63W-VSC020DPB-SR902132157
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM80EP2/63W-VSC020DPB-S, material number R902132157. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902132157
- Type code
- AA6VM80EP2/63W-VSC020DPB-S
- Group
- A6VM 80
- Edition
- 06/2020

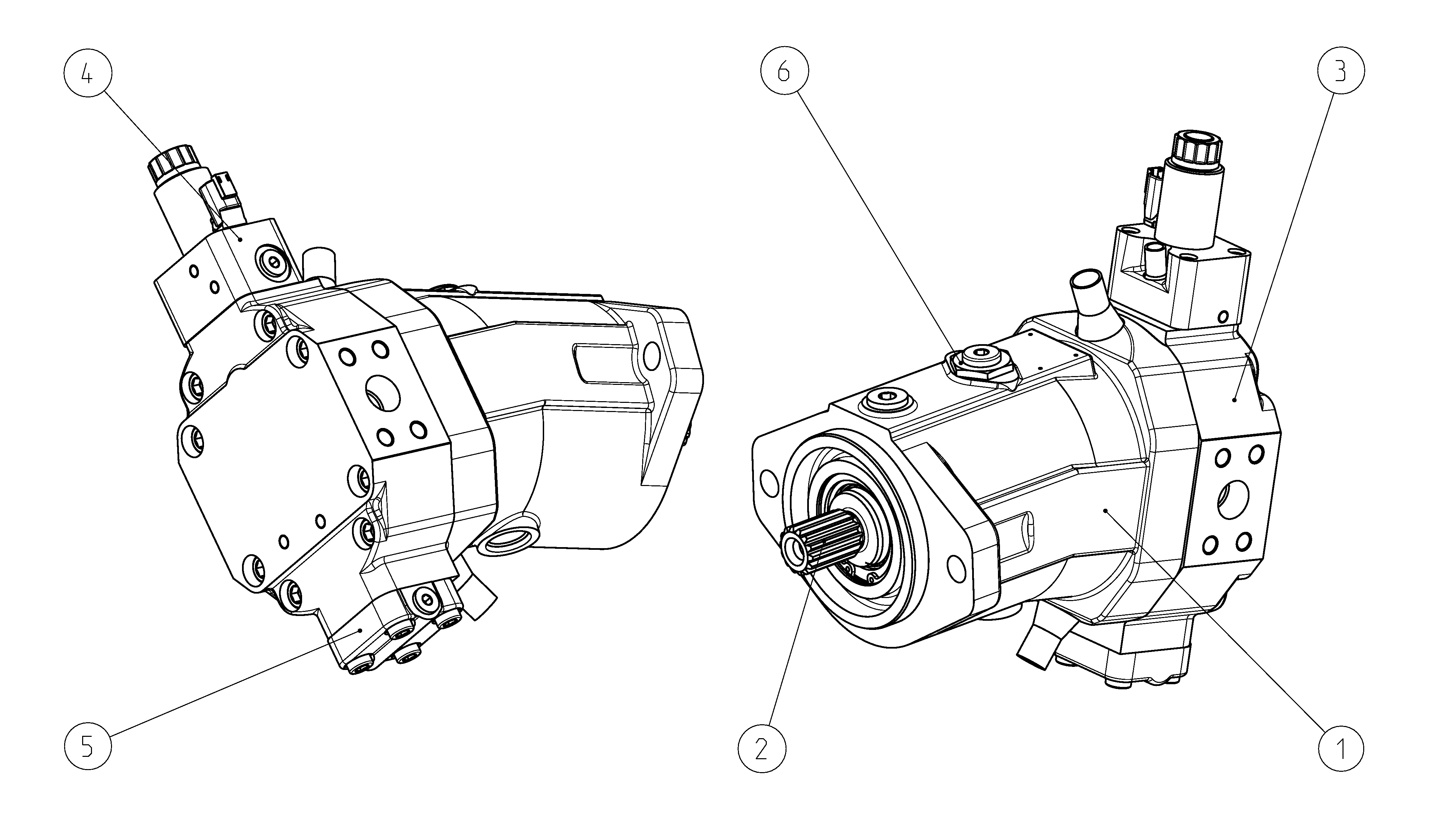

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902212749 | HOUSING Assembly parts list →L | 1 | ||
| R909604705 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902182242 | COVER PLATE Assembly parts list →L | 1 | ||
| R902163659 | CONTROL PART Assembly parts list →L | 1 | ||
| R902132421 | COVER Assembly parts list →L | 1 | ||
| R902132494 | THREADED REDUCING STUD Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 80 | 80 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
