Unit · AXIAL-PISTON PUMP

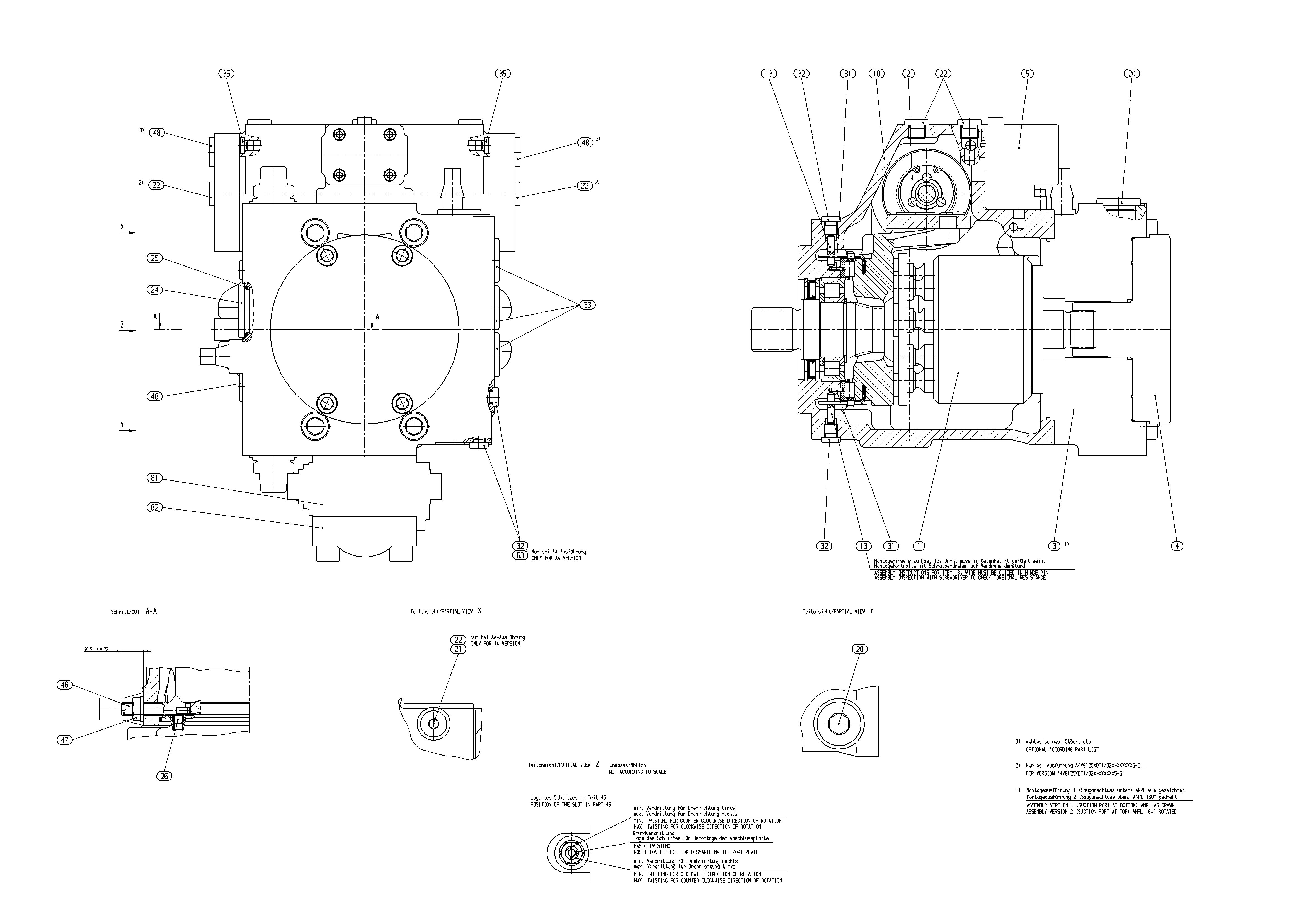

A4VG125HD9XM1/32R-NSF02F691S-SR902133483
Axial piston pump Bosch Rexroth series A4VG, type code A4VG125HD9XM1/32R-NSF02F691S-S, material number R902133483. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 152-2/4 (D) 1 3/4 in 13T 8/16DP (69). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S). Standard/special version: special version (-S).
- Number
- R902133483
- Type code
- A4VG125HD9XM1/32R-NSF02F691S-S
- Group
- A4VG 125
- Edition
- 03/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199765 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902008194 | CONTROL Assembly parts list →L | 1 | ||
| R909609519 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902097851 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902113994 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909443725 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909083229 | SCREW PLUGD | 1 | ||
| R909085545 | O-RING | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909153861 | SCREW PLUG | 3 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R902228733 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R909832105 | SPLIT FLANGE HALF | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 152-2/4 (D) 1 3/4 in 13T 8/16DP | 69 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Standard/special version | Special version | -S |
