Unit · AXIAL-PISTON PUMP
A4VG250EP4DT1/32R-NZD10F691SRH-SR902134164
Axial piston pump Bosch Rexroth series A4VG, type code A4VG250EP4DT1/32R-NZD10F691SRH-S, material number R902134164. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4). Pressure cut-off: pressure cut-off (D). Stroking chamber pressure port: stroking chamber pressure port X X (T). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 4-hole (D). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 152-2/4 (D) 1 3/4 in 13T 8/16DP (69). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1).
- Number
- R902134164
- Type code
- A4VG250EP4DT1/32R-NZD10F691SRH-S
- Group
- A4VG 250
- Edition
- 06/2020

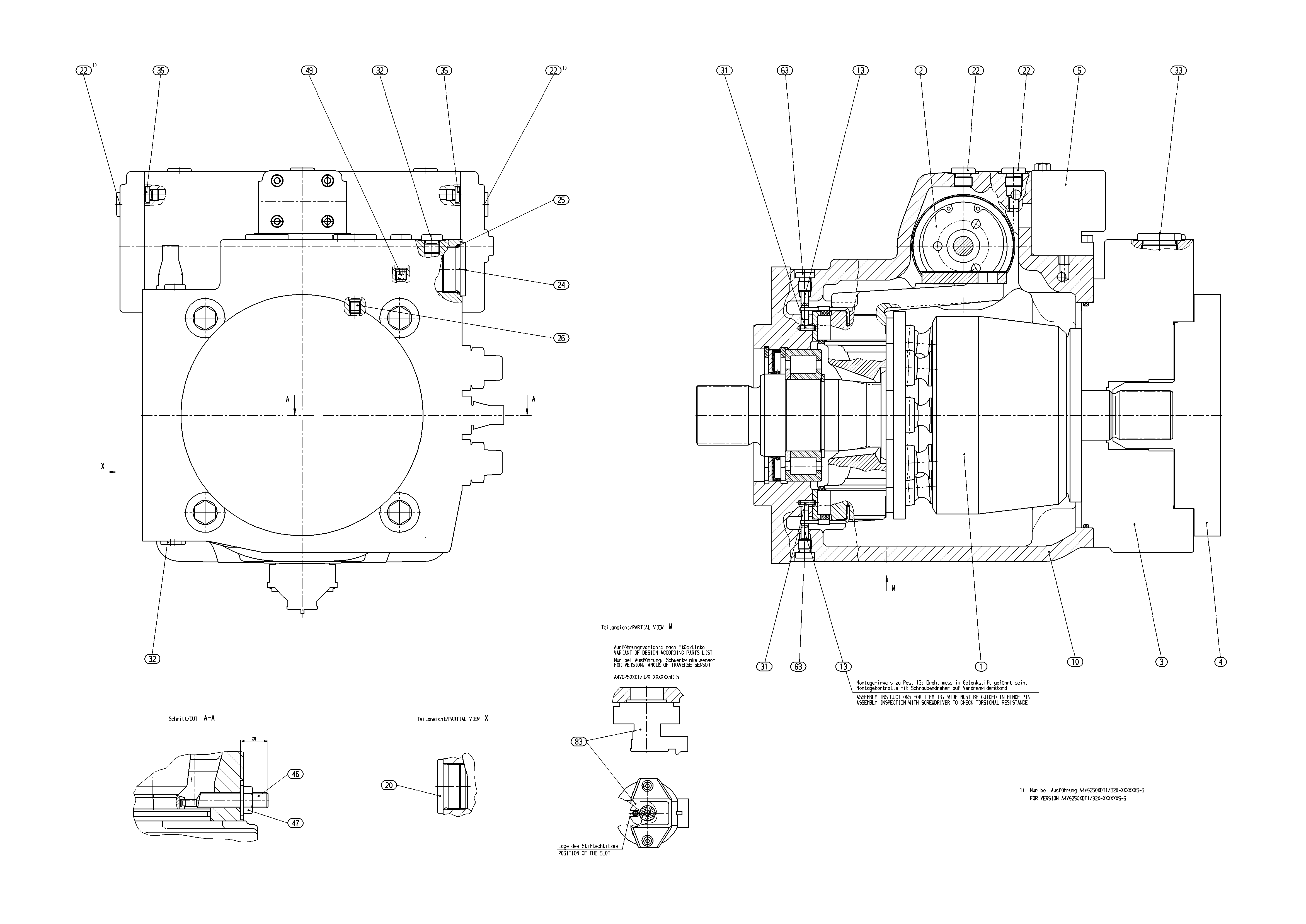

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103750 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902022874 | CONTROL Assembly parts list →L | 1 | ||
| R902029543 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902029567 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902115084 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902078167 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 5 | ||
| R909083229 | SCREW PLUG | 1 | ||
| R909085545 | O-RING | 1 | ||
| R909831349 | PLUG | 1 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153861 | SCREW PLUG | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R902005487 | ECCENTRIC SCREW | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R909831349 | PLUG | 1 | ||
| R909151692 | SCREW PLUG | 4 | ||
| R902073064 | SWIVEL ANGLE SENSOR Assembly parts list →L | 1 | ||
| 98 | R902095544 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
| Pressure cut-off | Pressure cut-off | D |
| Stroking chamber pressure port | Stroking chamber pressure port X X | T |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 4-hole | D |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 152-2/4 (D) 1 3/4 in 13T 8/16DP | 69 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Swivel angle sensor | Electric swivel angle sensor mounted | R |
| Standard/special version | Special version | -S |
