Unit · AXIAL-PISTON PUMP

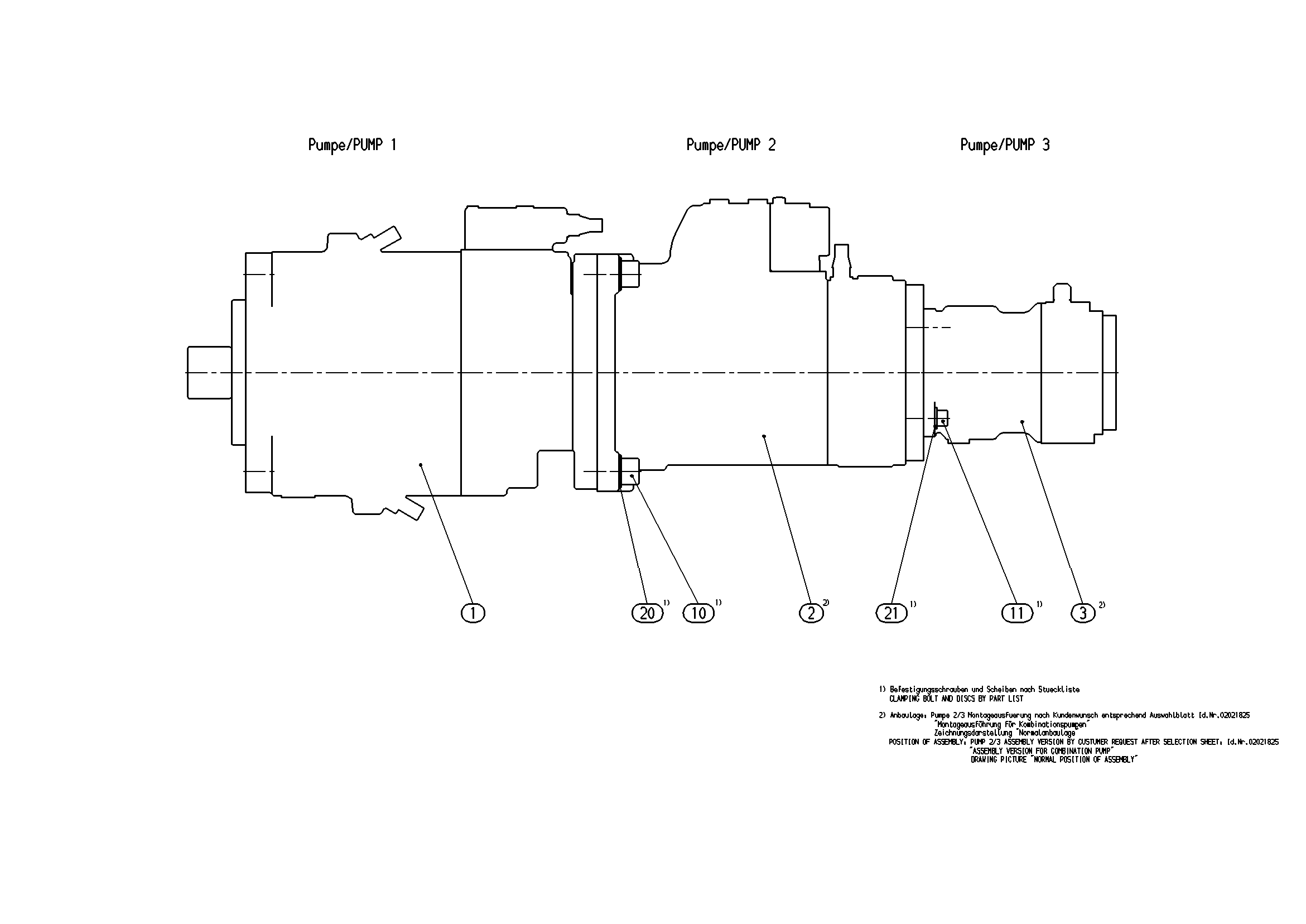

A11VO260DRS+A4VG180EP4D+A10VO100DRR902134334
Axial piston pump Bosch Rexroth series A11VO, type code A11VO260DRS+A4VG180EP4D+A10VO100DR, material number R902134334. Nominal size: NG 260. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: pressure controller with load-sensing (DRS).
- Number
- R902134334
- Type code
- A11VO260DRS+A4VG180EP4D+A10VO100DR
- Group
- A10VO 100
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902083076 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902134321 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902469745 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 260 | 260 |
| Control device | Pressure controller with load-sensing | DRS |
