Unit · AXIAL-PISTON PUMP
A4VG125EP4D1/32L-NAF02F001BRPR902136258
Axial piston pump Bosch Rexroth series A4VG, type code A4VG125EP4D1/32L-NAF02F001BRP, material number R902136258. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft DIN 5480 for combination pump – 1st pump (A). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: attachment filter with cold start valve and electric contamination indicator, function normally open (B).
- Number
- R902136258
- Type code
- A4VG125EP4D1/32L-NAF02F001BRP
- Group
- A4VG 125
- Edition
- 03/2020

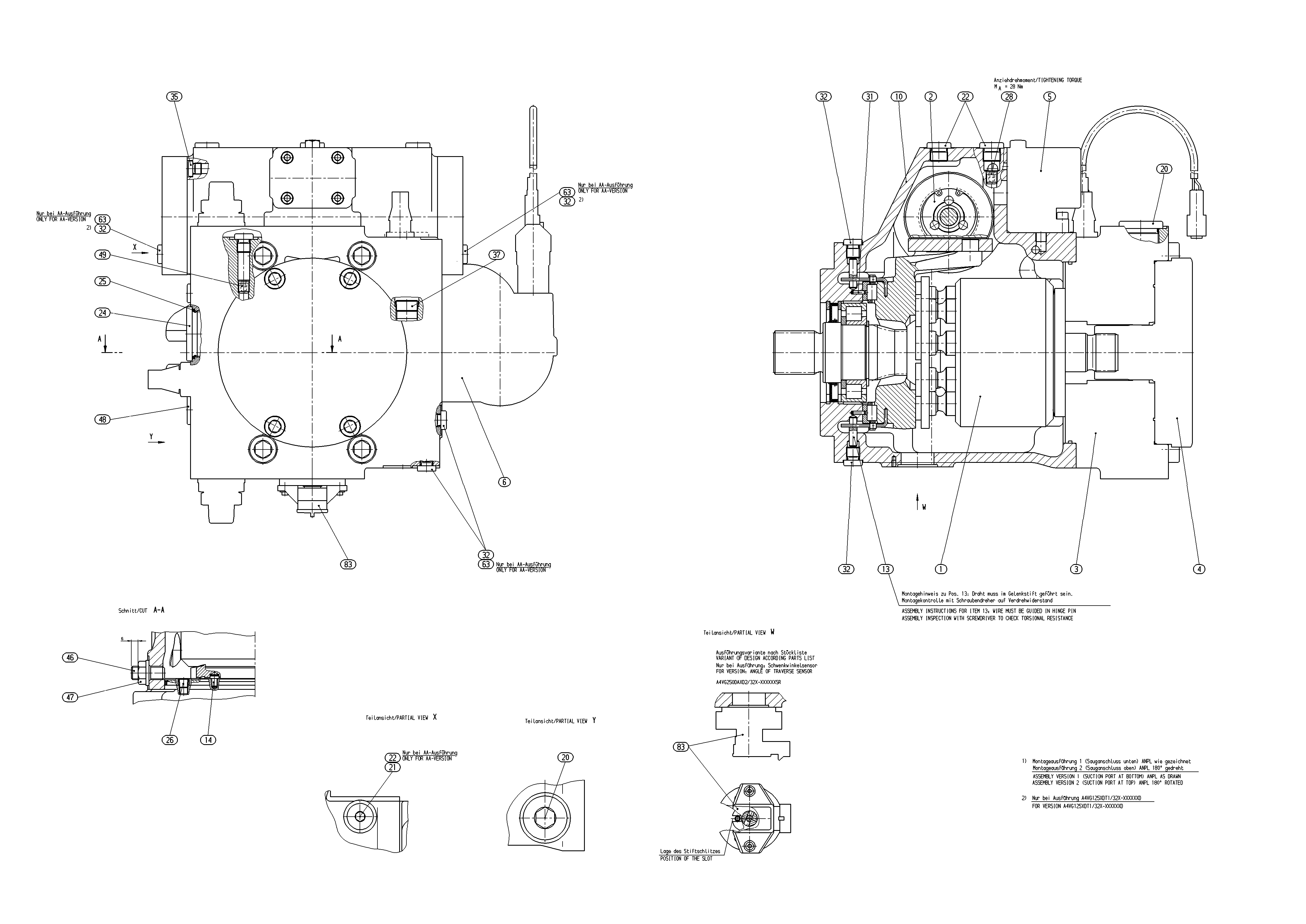

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199792 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902011331 | CONTROL Assembly parts list →L | 1 | ||
| R909609519 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606320 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902113940 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902100660 | FILTER Assembly parts list →L | 1 | ||
| R902085121 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909083229 | SCREW PLUG | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909426700 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909156570 | SCREW PLUG | 1 | ||
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909426707 | NOZZLE | 1 | ||
| R902073064 | SWIVEL ANGLE SENSOR Assembly parts list →L | 1 | ||
| 98 | R902095628 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft DIN 5480 for combination pump – 1st pump | A |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Attachment filter with cold start valve and electric contamination indicator, function normally open | B |
| Swivel angle sensor | Electric swivel angle sensor mounted | R |
| Connector for solenoids | DEUTSCH connector without suppressor diode molded, 2-pin | P |
